제품 상세 정보:
|
| 효과적인 직장 규모: | 280*170*120 mm | 온도 정확도: | ± 0.2 Ｃ |
|---|---|---|---|
| 진자각: | 150' | 용량: | 1-1.5,2-2.5/3-3.5t/h |
| 삽입력: | 0~50kg | 타이밍 모드: | 카운터 업, 카운터 다운 |
| 디자인 표준: | HS 80 ± 5 | 테스트 속도: | 5 ~ 60 사이클/분 |
| 충격 각도: | 90도 | 진자의 길이: | 200 mm |
| 데이터 폐기: | CPU | 필링 각도: | 90 ° |
| 머리를 날카롭게 측정합니다: | 35 °, 30 ° | 노 사이즈: | φ45mm*350mm |

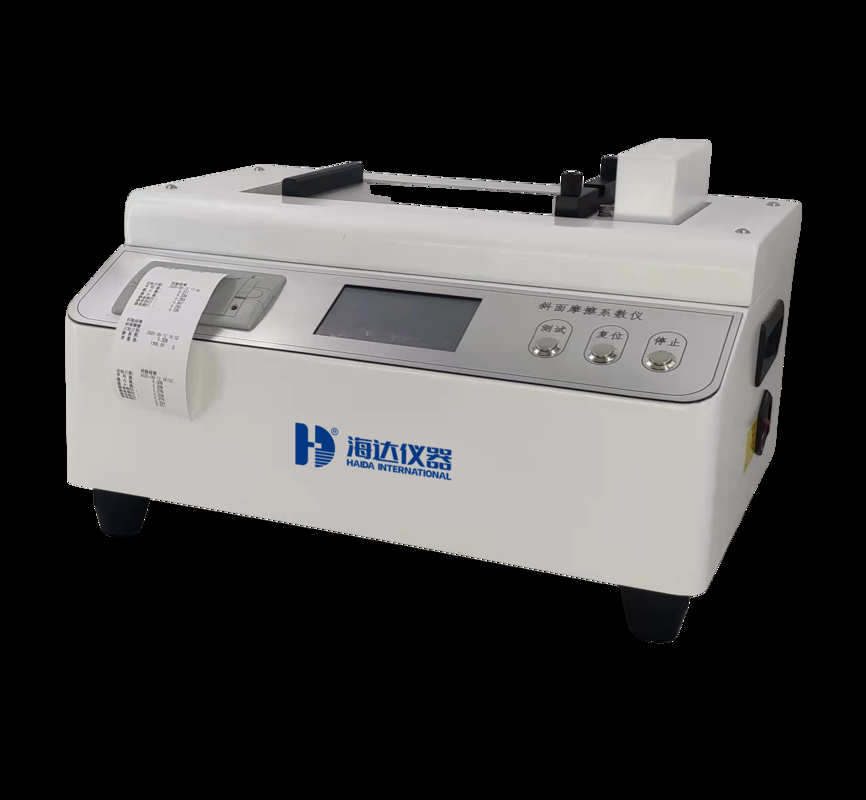

EQUIPMENT DETAILS FOR 5092-HD FRICTION TEST MACHINE
PRODUCT INTRODUCTION
Professionally suitable for friction coefficient test of paper, cardboard, plastic, sheet, conveyor belt and other materials. By measuring the smoothness of the material, the opening of the packaging bag can be controlled and adjusted, and the packaging speed and other production quality process indicators can be controlled to meet the applicable requirements of the product. Controlled by microcomputer, PVC control panel, & LCD touch screen.
TECHNICAL PARAMETERS
|
Item |
Description |
|
Plate Tilting |
0° ~ 80° |
|
Accuracy |
0.01° |
|
Tilting Speed |
0.1° /s ~ 10° /s (can be adjustable) |
|
Movable Bock Weight |
1300g (standard) & 750g (for customized) |
|
Effective Testing Size |
130*200mm |
|
Movable Bock Size |
100*90mm |
|
Environment Requirement |
Temp. 23±2℃ & Humidity 20%RH~70%RH |
|
Test Standard |
ASTM D202,ASTM D4918,TAPPI T815 |
|
Power Supply |
Single Phase 220V, 50Hz (can be appointed) |
|
Machine Size |
330x455x250 mm (LxWxH) |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
WHY CHOOSE US?
FAQ
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
