High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

Name: High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center
Brand: Hai Da Labtester
SKU: 60085-HD
Price: 7,500.00 USD
Availability: InStock

모든 제품

실험실 테스트 기계
(68)

환경 테스트 챔버
(114)

장력 시험 기계
(224)

불화성 검사 장비
(45)

온도 습도 챔버
(42)

가속된 나이 드는 약실
(59)

IP 시험 장비
(39)

부식 시험 챔버
(41)

ISTA 포장 테스트
(34)

종이 포장 시험 기구
(96)

가구 시험 장비
(115)

의료기기 검사기
(10)

직물 시험 장비
(40)

진동 쉐이커 테이블 시스템
(23)

기계 시험기
(6)

광학적인 측정기
(23)

배터리 테스트 장비
(43)

고무 플라스틱 시험 장비
(54)

화학분석기
(19)

전자 담배 검사 기계
(10)

인증

고객 검토

그렇습니다 우리는 기계를 지난 주에 받았습니다. 이 기계는 좋, 판매 후 serives를, 이었습니다 아주 직업적 감사합니다.

—— 피터 Maas

회사 대신 당신의 공장과 회사를 방문하기 위해, 기술 직원은 매우 전문적이고 인내심을 가지고 있습니다, 나는 다시 당신과 협력하는 것을 기쁘게 생각합니다.

—— Steve Hubbard

제가 지금 온라인 채팅 해요

High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

큰 이미지 : High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

제품 상세 정보:

Place of Origin:	China
브랜드 이름:	Haida
인증:	CE,,ISO
Model Number:	60085-HD

결제 및 배송 조건:

Minimum Order Quantity:	1
가격:	협상 가능
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

접촉

High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center

설명

용법:	품질 관리 및 테스트	변압기 용량:	1000VA
임팩트 속도:	3.4m/초	주행로:	길이 100mm
외부 크기:	900500800 (wdh)	충격 각도:	90도
온도 테스터:	200' Ｃ에 대한 실온	차원:	650mm×400×830mm
타이밍 범위:	3 분 (임의로 설정할 수 있음)	전류 측정기 범위:	10pa ~ 1ma
정착물 로드:	2.5N	오존 제조하는 방식:	오존 발생기 또는 UV 흡착법
수평의:	500mm * 250mm * 500m	시편 두께 범위:	0 ~ 60 mm
견본 사이즈:	16 밀리미터, 6-15mm (D)	관찰자:	CIE 10° 표준 관찰자
사양:	20-88HRA, 20-100HRB, 20-70HRC	압력 결의안:	0.001mpa (0.01bar 또는 1psi)
테스트 모드 A:	실온	디스플레이:	디지털
테스트 속도:	조절할 수 있는	볼 중량:	5kg
외부 치수:	95x150x105cm	펀칭 스트로크:	25mm
온도 균일 성:	± 2 ℃	정확도 제어:	±0.2' Ｃ
강조하다:	Thermal Conductivity Rubber Plastic Tester , research Rubber Plastic Tester , High Precision Rubber Plastic Tester

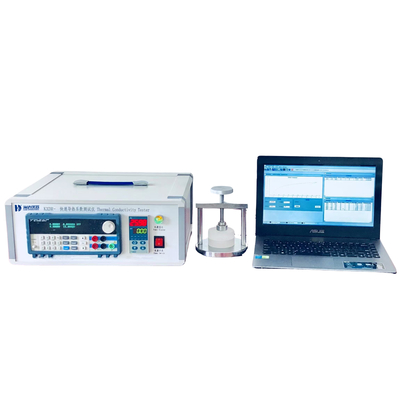

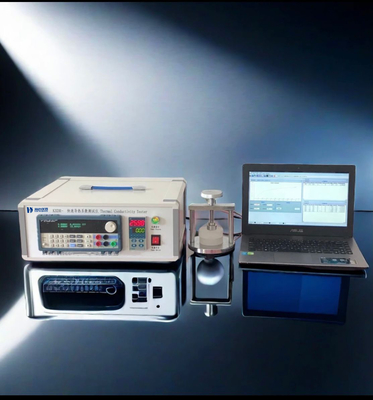

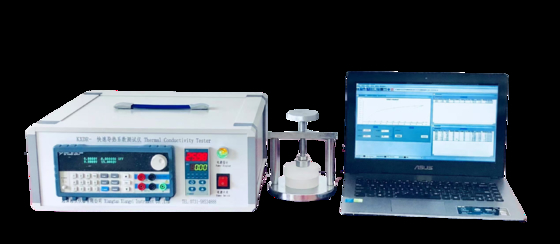

HD-KDRX-II Thermal Conductivity Tester

(Hot Wire Method)

Description:

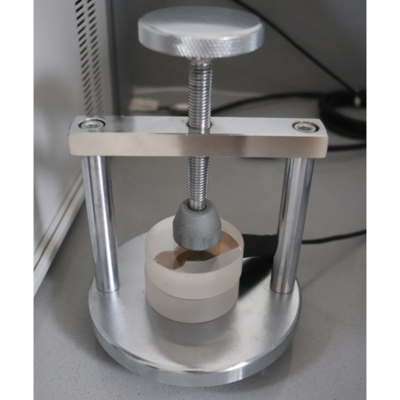

The hot wire thermal conductivity tester (transient method) is measured using the line source test method of the thermal probe. This thermal probe has a very large aspect ratio to achieve the simulation conditions of an infinitely long and infinitely thin heat source. It is easy to use, with a plug-and-play probe sensor quick interface and simple software interface operation, allowing users to quickly master and accurately operate. From the beginning of preparation for the test to obtaining the results, it usually takes only 1~2 minutes. It has the advantages of a wide range of applications, fast measurement speed, and accurate measurement results. It has the advantages of small size, easy to carry, and higher cost performance to meet the production, quality inspection, and R&D needs of related industries.

High Precision Thermal Conductivity Tester For Rubber Plastic Test Equipment / Research And Development Center 0

Technical Parameters

Item	Parameters
Thermal conductivity range	0.0001~50 W/mK; resolution: 0.0001w/mk
Measurement relative error	≤3%
Repeatability error	≤3%
Temperature resolution	0.01℃
Measuring time	2~180 seconds
Sample test temperature range	Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Tested samples	Plastic, soil, soft rock, liquid; paste, granule, powder and other materials

Sample shape	Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required
Sample size	Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm
Control mode	By computer and software
Machine dimension	(LWH)380400165mm
Machine weight	Approx. 5KG
Power	AC 220V±10%, 50/60 Hz, 200W

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
