제품 상세 정보:
|
| Usage: | Quality Control and Testing | Transformer Capacity: | 1000VA |
|---|---|---|---|
| Runway: | Length 100mm | Impact Angle: | 90 degree |
| Temperature Tester: | Room temperature to 200°C | Dimension: | 650mm×400×830mm |
| Current Measurement Range: | 10pA~1mA | Fixture Load: | 2.5N |
| Ozone Produced Mode: | Ozone generator or UV absorption method | Test Mode A: | Room temperature |
| Dispaly: | Digital | Test Speed: | Adjustable |
| Application: | Industrial | Display Mode: | touch screen display |
| Ball Weight: | 357,533,1042,2280 g | Swing Range: | R300mm |
| Timing Range: | 0-10000h | Abrasion Wheel: | 2 |
| Specimen Holder: | Inner groove width 12mm | Load: | 1kg,(or specified) |
| Cutting Speed: | 100~3000mm/min adjustable | Horizontal: | 500mm * 250mm * 500m |
| 강조하다: | Plastic Thermal Conductivity Tester,Rubber Thermal Conductivity Tester,Thermal Conductivity Tester |
||

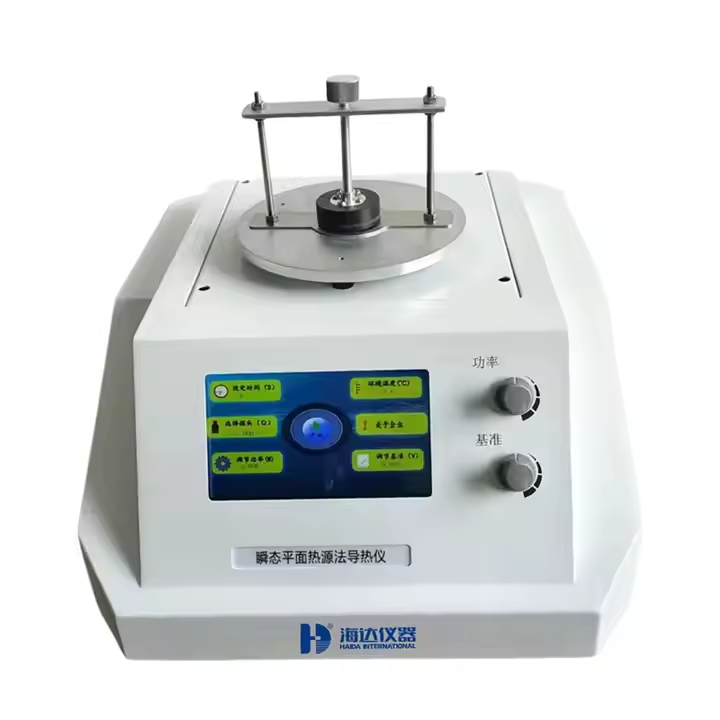

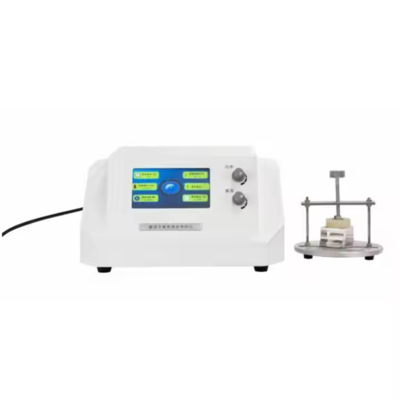

HD-DRL-S Thermal Conductivity Tester(TPS Method)
Thermal conductivity tester based on transient plane heat source technology (TPS). This product is independently developed by AVIC Dingli Instruments. It has stable test performance and strong data processing and analysis capabilities. It can be used to measure the thermal conductivity of various types of materials.
Technical Paramet
| Thermal conductivity range | 0.00001~300W/(m*K) |
| Measuring temperature range | RT~130ºC |

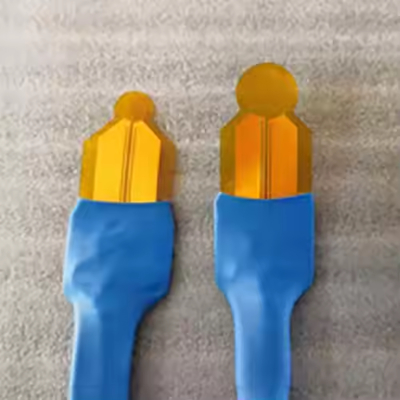

| Probe diameter | Probe No. 1: φ7.5mm; Probe No. 2: φ15mm |
| Measuring time | 5~160 seconds |
| Sample temperature rise | < 15ºC |
| Sample size | Probe No. 1 sample: ≥7.5*7.5*3.75mm; Probe No. 2 sample: ≥15*15*7.5mm Note: Probe No. 1 measures thinner low-conductivity materials. If the surface of the sample to be measured is smooth and sticky, the sample can be stacked |
| Test sample power P | Probe No. 1 power: 0<P<1w; Probe No. 2 power: 0<P<20w |
| Accuracy of measurement results | ±3% |
| Control mode | Computer and software, software can export PDF Report, can export EXECL data |
| Protection system | Circuit with overload protection prompt |

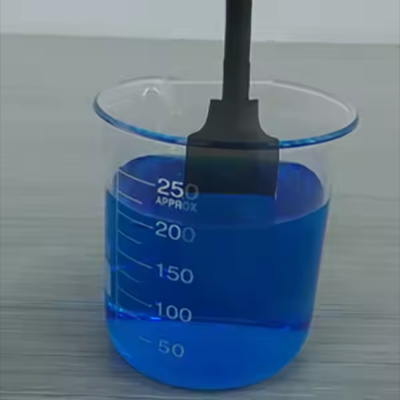

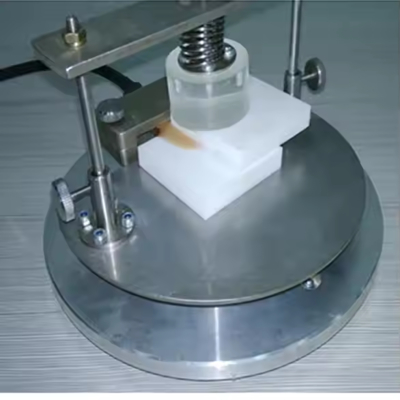

| Sample testing clamps | Powder sample test container, liquid sample test cup, solid sample test fixture for optional |
| Power | AC 220V±10%, 50/60 Hz, 500W |
About us
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
