Highly Precise Thermal Conductivity And Diffusivity Measurement With Rubber Plastic Test / Thermal Conductivity Testerthermal Diffusivity / Equipment

큰 이미지 : Highly Precise Thermal Conductivity And Diffusivity Measurement With Rubber Plastic Test / Thermal Conductivity Testerthermal Diffusivity / Equipment

제품 상세 정보:

Place of Origin:	China
브랜드 이름:	Haida
인증:	CE,,ISO
Model Number:	60082-HD

결제 및 배송 조건:

Minimum Order Quantity:	1
가격:	협상 가능
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

접촉

Highly Precise Thermal Conductivity And Diffusivity Measurement With Rubber Plastic Test / Thermal Conductivity Testerthermal Diffusivity / Equipment

설명

Time Setting:	0.1~999.9min Arbitrarily setting	Port:	ShenZhen
Usage:	Quality Control and Testing	Transformer Capacity:	1000VA
Impact Speed:	3.4m/s	Runway:	Length 100mm
External Size:	900500800 (WDH)	Power:	1∮，AC220V，3A
Impact Angle:	90 degree	Temperature Tester:	Room temperature to 200°C
Dimension:	650mm×400×830mm	Timing Range:	3min(can be set arbitrarily)
Current Measurement Range:	10pA~1mA	Fixture Load:	2.5N
강조하다:	Accurate Rubber Plastic thermal conductivity tester , Rubber Plastic thermal conductivity tester

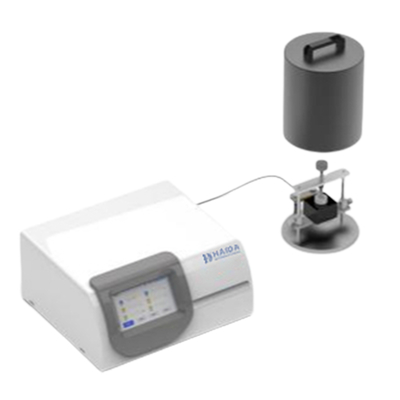

HD-DRAS Thermal Conductivity Tester

(TPS Method)

Description:

Transient Planar Source Technology (TPS) is a method for measuring thermal conductivity. It is based on ISO 22007-2-2008, ASTM D 5334/D 7984/D 5930, GB/T 32064-2015, GB/T 42919.1-2023 and so on standards, and meets the test of materials in different forms, such as liquid, solid block, paste, powder, film, etc.

Highly Precise Thermal Conductivity And Diffusivity Measurement With Rubber Plastic Test / Thermal Conductivity Testerthermal Diffusivity / Equipment 0

Technical Parameters

Item	Parameters
Thermal conductivity range	0.00001—50W/(m*K)
Accuracy	0.0001W/(m*k)
Measurement temperature range	-30℃~200℃
Test probe	2 high-precision probes, high temperature resistant
Sample state	Can test liquid, solid block, paste, powder, film, etc.
Repeatability error value	≤1%
Measurement time	≤160S
Total power	<300W
Control system	Touch screen(Chinese/English)
Solid sample specifications	No. 1 probe sample size ≥7.5mm7.5mm3.75mm No. 2 probe sample size ≥15mm15mm7.5mm
Liquid and powder sample specifications	Matching sample fixture, capacity: 18ml
Standards	ISO 22007-2-2008, ASTM D 5334/D 7984/D 5930, GB/T 32064-2015, GB/T 42919.1-2023

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
