제품 상세 정보:
|
| Usage: | Quality Control and Testing | Transformer Capacity: | 1000VA |
|---|---|---|---|
| Impact Speed: | 3.4m/s | Runway: | Length 100mm |
| External Size: | 900*500*800 (W*D*H) | Impact Angle: | 90 degree |
| Temperature Tester: | Room temperature to 200°C | Dimension: | 650mm×400×830mm |
| Timing Range: | 3min(can be set arbitrarily) | Current Measurement Range: | 10pA~1mA |
| Fixture Load: | 2.5N | Ozone Produced Mode: | Ozone generator or UV absorption method |
| Horizontal: | 500mm * 250mm * 500m | Specimen Thickness Range: | 0~60 mm |
| Specimens Size: | 16mm, 6-15mm (D) | Observer: | CIE 10° Standard observer |
| Specification: | 20-88HRA, 20-100HRB, 20-70HRC | Pressure Resolution: | 0.001Mpa (0.01bar or 1PSI) |
| Test Mode A: | Room temperature | Dispaly: | Digital |
| Test Speed: | Adjustable | Ball Weight: | 5kg |
| Exterior Dimension: | 95x150x105cm | Punching Stroke: | 25mm |
| Temperature Uniformity: | ±2℃ | Controlling Accuracy: | ±0.2°C |
| 강조하다: | rubber plastic test equipment,software interface thermal conductivity tester |
||

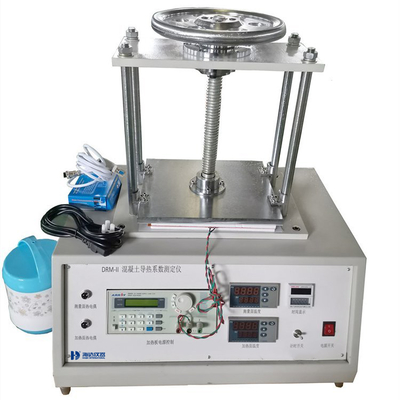

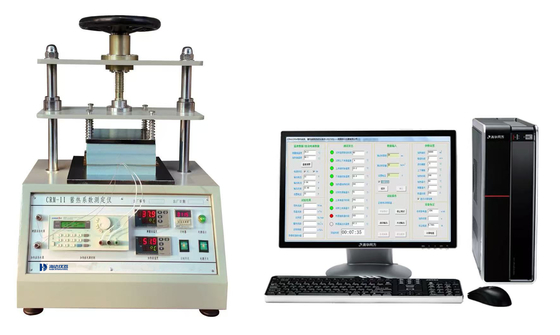

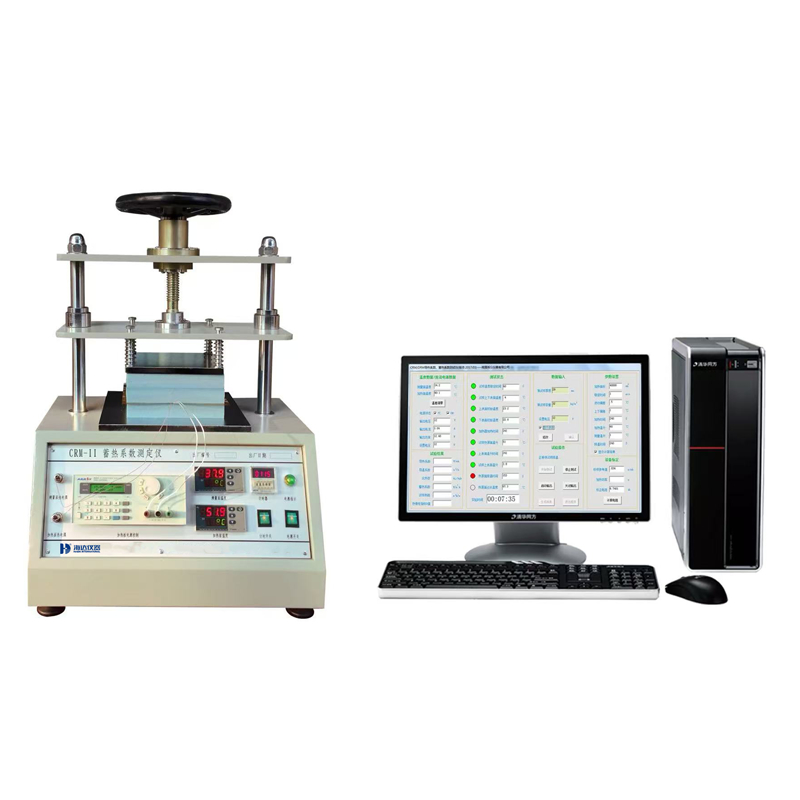

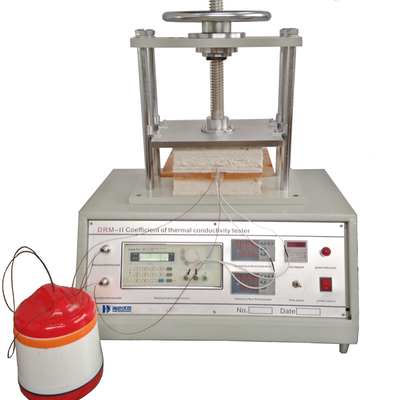

HD-DRM-II Thermal Conductivity Tester
(Heat Pulse Method)
The transient heat pulse method thermal conductivity tester is used to measure the thermal conductivity, thermal storage coefficient, thermal conductivity and specific heat of homogeneous plate-like, colloidal, powdery and granular materials under dry or different moisture conditions. It is suitable for testing inorganic materials such as thermal insulation materials, concrete materials, plastics, rubber, graphite, etc.
The characteristics of this instrument are: simple device, high accuracy, fast test speed (one test takes about ten minutes), and the thermal conductivity, thermal storage coefficient, thermal conductivity and specific heat of the material can be measured simultaneously in one test, and the thermophysical properties under different moisture conditions can be measured.
Technical Parameters
| Item | Parameters |
| Thermal conductivity range | 0.001~10W/m.k |
| Thermal storage coefficient test range | 0.1~100W/m2K |
| Sample size |
One thin specimen 20×20×(1.5~3)cm Two thick specimens 20×20×(4~10)cm |
| Accuracy of measurement results | ±3% |
| Control mode | Computer automatic testing, data printout |
| Working condition | 10~35℃, ≤80%RH |
| Power | AC 220V±10%, 50/60 Hz, 200W |
