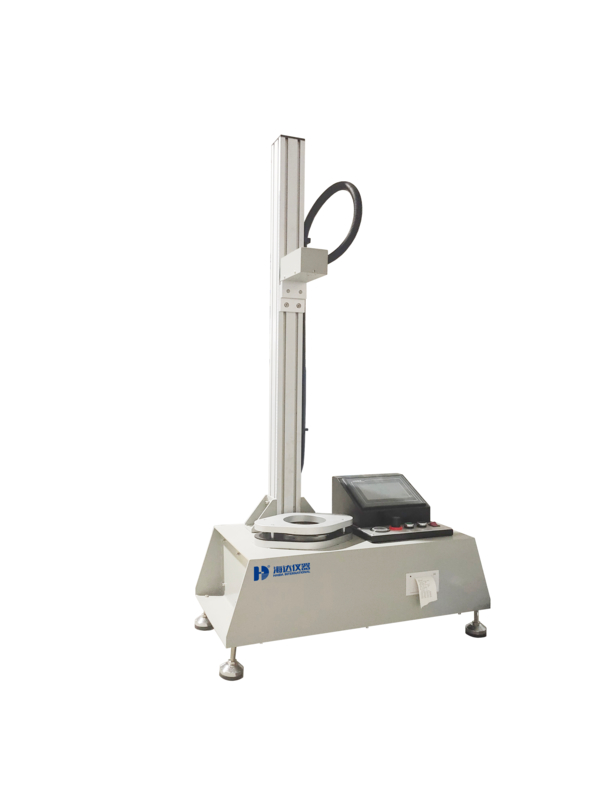

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

인증
중국 Hai Da Labtester 인증
중국 Hai Da Labtester 인증
고객 검토
그렇습니다 우리는 기계를 지난 주에 받았습니다. 이 기계는 좋, 판매 후 serives를, 이었습니다 아주 직업적 감사합니다.

—— 피터 Maas

회사 대신 당신의 공장과 회사를 방문하기 위해, 기술 직원은 매우 전문적이고 인내심을 가지고 있습니다, 나는 다시 당신과 협력하는 것을 기쁘게 생각합니다.

—— Steve Hubbard

제가 지금 온라인 채팅 해요

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

큰 이미지 :  EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE,,ISO
모델 번호: 5085-HD
결제 및 배송 조건:
최소 주문 수량: 1
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유 및 PP 필름으로 보호 된 다음 Operation Man과 강한 목재 케이스에 넣습니다.
배달 시간: 주문 확인 후 20 일
지불 조건: L/C, T/T, D/A, D/P, Western Union, MoneyGram
공급 능력: 한 달에 300 세트

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

설명
인젝션 시간: 0-9999S [조정 가능] 토크 결의안: 0.001NM
보증: 1 년 작동 방법: 전기 제어
난방력: 4kw 충전 시간: 0 ~ 999 · 프로그래밍 가능
테스트 범위: 0.005-300W/(m*k) 변위 정확도: 0.01mm
플런저: 직경 9.4742 ± 0.0076mm 용법: 테스트
테스트 모드 A: 실온 나사 속도: 0 ~ 150 rpm
온도 범위: 정상 온도 -30 ° COR -50 ° C 시편 고정 장치: 안쪽 구간 너비 12mm
외부 크기: 900*500*800 (w*d*h)

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
SOFTWARE DETAILS

APPLICATIONS

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.

GENERAL SPECIFICATIONS

Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm

Estimated Gross Weight: 130kg

Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)

STANDARD FEATURES
Test Item Specification
Testing sample mass Method A: 50-2000g; Method B: 300-2000g
Testing accuracy 0.1g (0.1J)
Testing method Method A & Method B (Option)
Specimen size >150mm×150mm
Diameter of impacting head Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm
Diameter of dart shaft Ф6.5±0.1mm
Inner diameter of specimen fixture 125±2 mm
Impacting height Method A : 0-660mm, Method B: 0-1520mm
Weights Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2
Method B: 15g*2, 45g*8, 90g*8, 300g*2
Power Single-phase 220V, 60Hz
Estimated Weight 100kg
Specimen Fixture Pneumatic
