Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time
Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

큰 이미지 :  Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE,,ISO
모델 번호: 60088-HD
결제 및 배송 조건:
최소 주문 수량: 1
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유와 PP 필름으로 보호된 다음 작업 담당자와 함께 강한 나무 케이스에 넣습니다.
배달 시간: 명령 뒤에 있는 20 일은 확인했습니다
지불 조건: L/C, T/T, D/A, D/P, 웨스턴 유니온, 머니그램
공급 능력: 달 당 300개 세트

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

설명
오존 제조하는 방식: 오존 발생기 또는 UV 흡착법 테스트 모드 A: 방 온도
디스플레이: 디지털 시험 속도: 조정 가능
제품: 충돌 시험 장비 제어 방법: 컴퓨터 자동 테스트
온도는 울렸습니다: 상온~200℃ 전기 가열 전력: AC220V ± 10%50HZAC220V ± 10%50Hz
테스트 표준: ASTM, ISO, GB, JIS 등
강조하다:

Haidathermal Conductivity Tester

,

surface temperature Thermal Conductivity Tester

,

Hot Disk Thermal Conductivity Tester

Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)

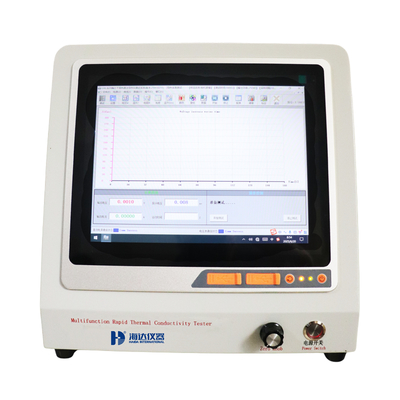

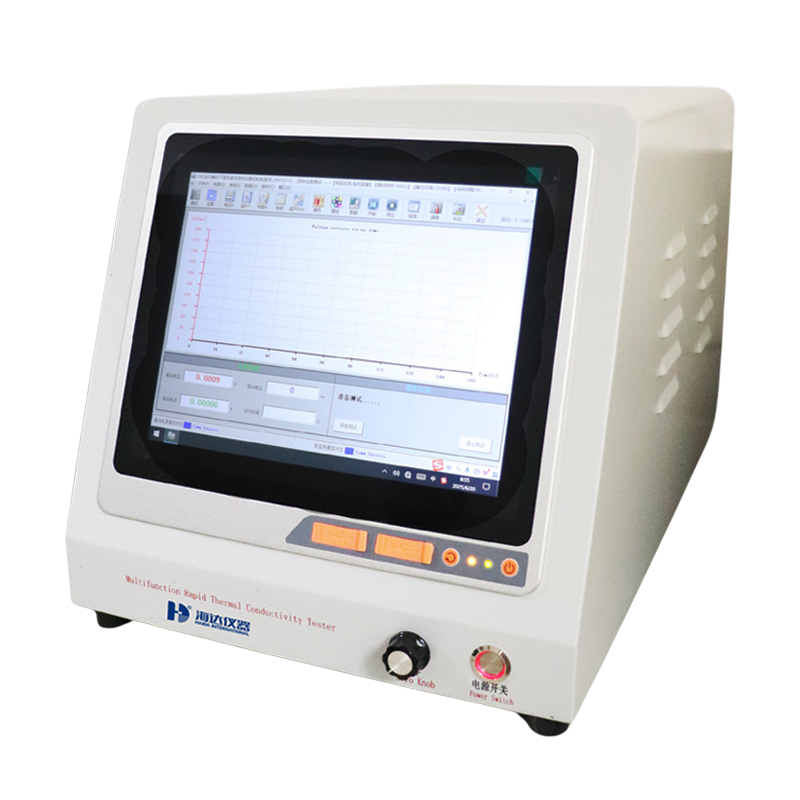

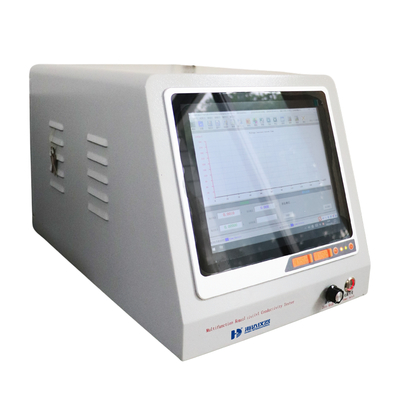

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 0

Technical Paramet

Item
Parameters
Thermal conductivity range
0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient range
0.1~100m2/s
Thermal storage coefficient range
0.1~30w/(m2.k)
Specific heat capacity range
0.1~5kJ/(kg.ºC)
Thermal resistance range
0.5~0.000005mm2.k/w
Temperature measuring accuracy
≤0.0001ºC
Measurement relative error
≤3%
Repeatability error
≤3%
Measuring time
1~120 seconds
Sample test temperature range
Room temperature
(Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Probe
Φ15mm
Various sample tests
a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample
surface is required, and a special sample clamping device is provided.
b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided.
c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing.
d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing.
e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing.
Control mode
Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
Machine dimension
(L*W*H)380*40*450mm
Machine weight
Approx. 20KG
Power
AC 220V±10%, 50/60 Hz, 500W
