Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

큰 이미지 : Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Haida
인증:	CE,,ISO
모델 번호:	60087-HD

결제 및 배송 조건:

최소 주문 수량:	1
가격:	협상 가능
포장 세부 사항:	각 세트는 수지 섬유와 PP 필름으로 보호된 다음 작업 담당자와 함께 강한 나무 케이스에 넣습니다.
배달 시간:	명령 뒤에 있는 20 일은 확인했습니다
지불 조건:	L/C, T/T, D/A, D/P, 웨스턴 유니온, 머니그램
공급 능력:	달 당 300개 세트

접촉

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

설명

오존 제조하는 방식:	오존 발생기 또는 UV 흡착법	테스트 모드 A:	방 온도
디스플레이:	디지털	시험 속도:	조정 가능
제품:	충돌 시험 장비	제어 방법:	컴퓨터 자동 테스트
광학 배율:	100회	온도는 울렸습니다:	상온~200℃
전기 가열 전력:	AC220V ± 10%50HZAC220V ± 10%50Hz	테스트 표준:	ASTM, ISO, GB, JIS 등
실린더:	직경 9.5504 ± 0.0076mm	프로브 직경 a:	7.5 밀리미터
사출 성능:	40*65 cm³	급기:	0.6Mpa
사양:	20-88HRA, 20-100HRB, 20-70HRC
강조하다:	Rubber Plastic Test Equipment , Rubber Plastic Test Machine , Board materials Rubber Plastic Test Equipment

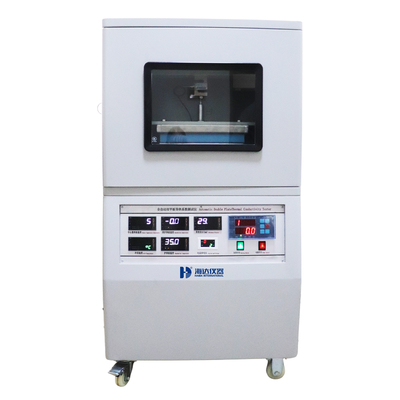

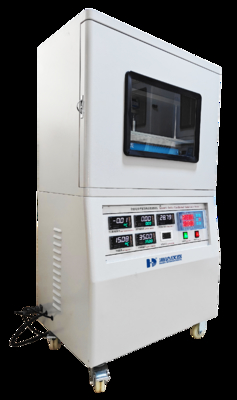

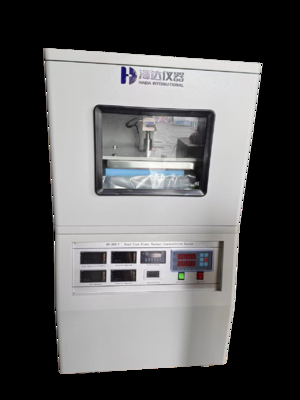

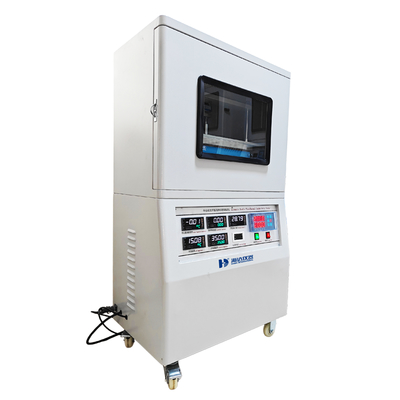

HD-DRH-V Thermal Conductivity Tester

The thermal conductivity tester is mainly used to test plastic, rubber, glass, fiber, benzene board, extruded plastic board, foamed concrete, hollow glass, wood board, all kinds of heat preservation materials and other h omogeneous board materials, and at the same time, it can measure the thermal conductivity of various substances such as granular materials, bulk materials, soft materials.

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials 0

Technical Paramet

Item	Parameters
Thermal conductivity range	0.001~3.000 W/m.K
Measuring accuracy	≥±2%
Repeatability error	≤±1%
Sample state	Can test solid material, powder material
Measuring time	60 minutes
Hot surface temperature range	RT~150ºC, resolution: 0.01ºC
Cold surface temperature range	0~60 ºC, resolution: 0.01 ºC
Pressure measurement range	0~500N, resolution: 0.1 N
Sample thickness range	0~50mm, resolution 0.001mm, automatic digital thickness measurement
Specimen size	(LengthWidthThickness)300300(5-50)mm (standard configuration)
Control method	By computer and software
Machine dimension	(LWH)5504501500mm
Machine weight	Approx. 100KG
Bath dimension	(LWH)300350530mm
Bath weight	Approx. 35KG
Power	1∮ AC 220V 50W

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials 8

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials 9

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials 10

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
