EQUIPMENT DETAILS OF 5087-HD FLIM SHRINKAGE TESTER

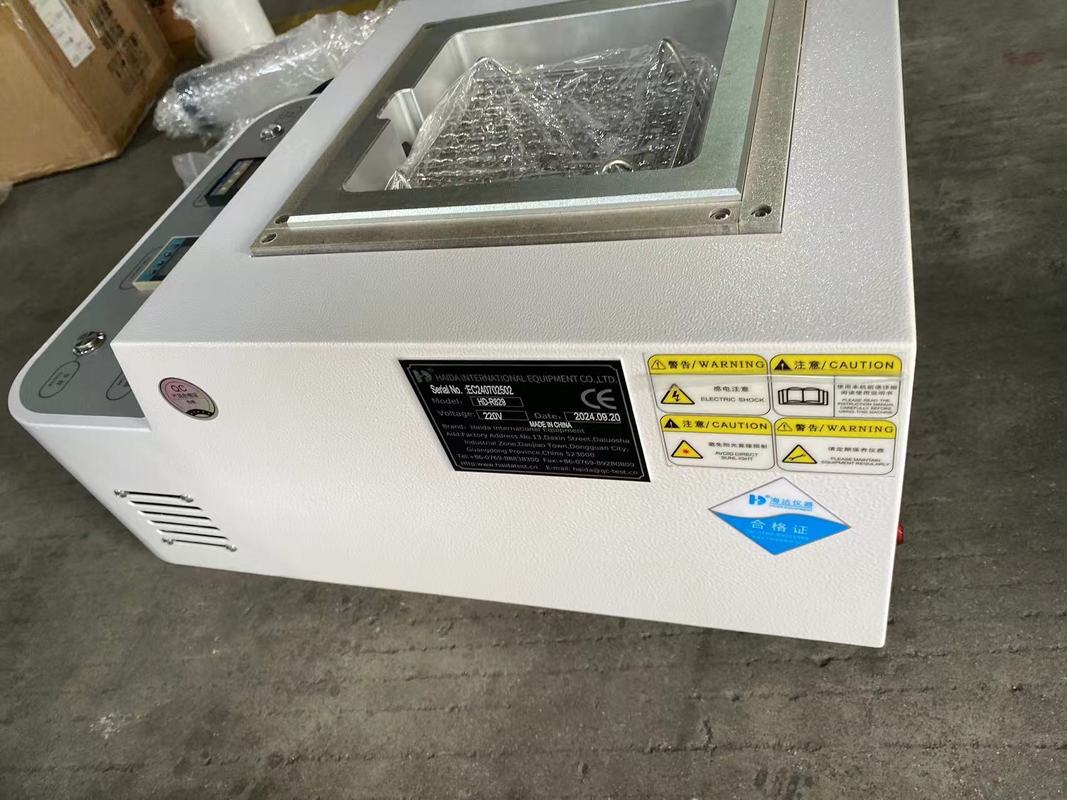

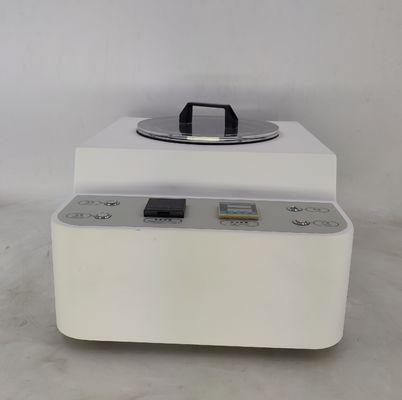

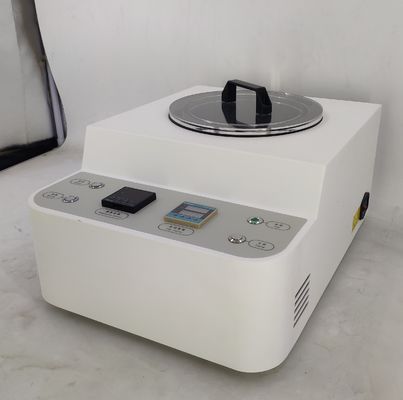

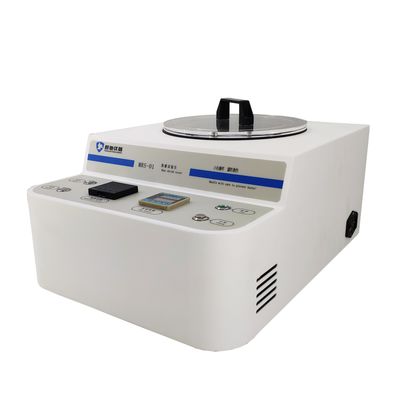

***Picture for reference***
PRODUCT DECRIPTION
This machine is suitable for testing the thermal shrinkage performance of materials, suitable for testing the thermal shrinkage performance of various films in liquid medium at a variety of temperatures, such as wine, cans, mineral water, a variety of beverages, the overall collection of packaging with PE thermal shrinkage film, As well as PVC, POF, OPS, PET and other suitable for a variety of packaging shrinkage film, flexible packaging composite film, PVC polyvinyl chloride hard sheet, solar cell back plate and other materials with heat shrinkage performance.
STANDARD
GB/T 13519,ASTM D2732,YBB00292004-2015,YBB00212005-2015,YBB00232005-2015,YBB00222005-2015,YBB00202005-2015
PRINCIPLE
The instrument accurately controls the temperature of the heat-carrying oil in the heating tank, cuts the sample into a certain size, puts it into the heating tank for a certain period of time, takes out the sample after the time is up, measures the size of the sample after cooling to room temperature, and calculates the thermal shrinkage rate.
STANDARD FEATURES
|
Item |
Description |
|
Temperature control accuracy |
±0.3℃ |
|
Relative humidity |
50%±5% |
|
Measurement range |
≤140mm×140mm |
|
Temperature range |
--200℃(inside) |
|
Heating medium |
oil bath |
|
Dimensions |
480 (L) ×360 (W) ×270 (H) mm |
|
Weight |
18kg |
|
Relative humidity |
50%±5% |
|
Working environment |
23℃±2℃; |
|
Power |
220V, 50HZ |
|
Standard configuration |
host, sample tray, sample clip, heat conduction oil, sampling knife, sampling standard ruler; |
