제품 상세 정보:
|
| 충격 각도: | 90도 | 시간 해상도: | 1s |
|---|---|---|---|
| 디자인 표준: | 84mm × 45mm | 측정 정확도: | ± 3% |
| 시험 각도: | 20 °, 30 °, 40 ° | 재료 음속: | 1000-9999m/s |
| 롤러 속도: | 40 ± 1r. p. 중 | 주입 용량: | 40*65 cm³ |
| 타이밍 범위: | 3 분 (임의로 설정할 수 있음) | 작업 규모: | 직경 160*44 (mm) 중심 높이 214mm |
| 일정온도: | 50 ℃ ± 0.5 ℃ 및 100 ± 0.5 ℃ | 필링 각도: | 90 ° |
| 차원: | 550x440x690 mm | 외부 크기: | (L × W × H) 500 × 200 × 300 mm |
| 유형: | 단일 망치 손 |

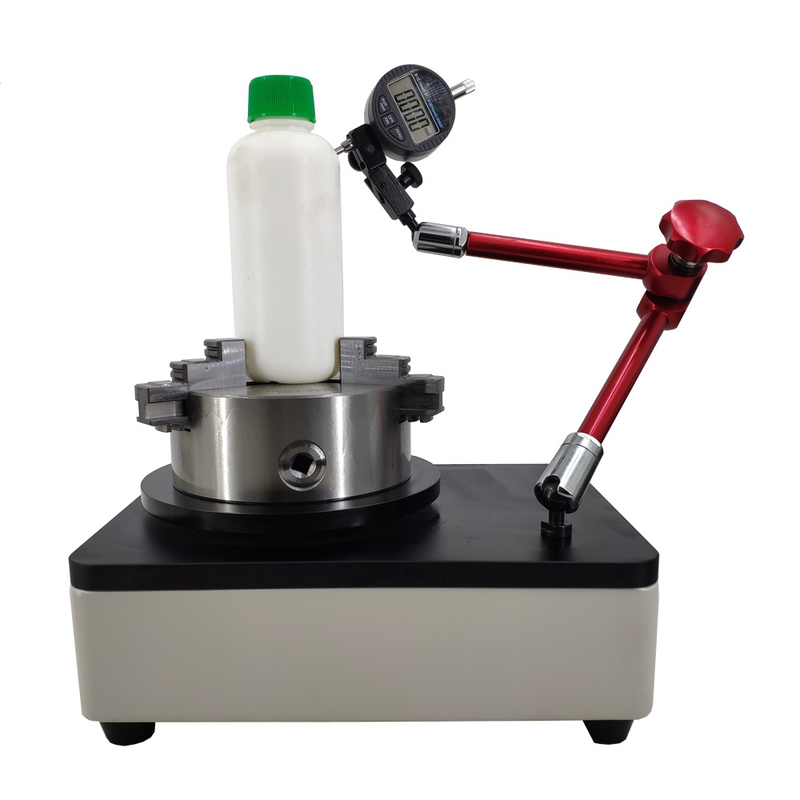

EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER
***Picture for reference
DESCIPTION
Determination professional for food, cosmetics, pharmaceuticals and other industries of various bottle container vertical deviation, and is bottle factory , bottle users and research institutions to detect bottle verticality preferred instrument bias.
PRINCIPLE
Fix the bottom of the bottle on the rotating disk of the horizontal plate, make the bottle mouth contact the micrometer, rotate 360° to read the maximum and minimum values, and 1/2 of the difference between the two is the vertical axis deviation value. The instrument uses the high concentricity of the four-claw self-centering chuck, with a set of high-freedom brackets that can freely adjust the height and orientation, to meet the testing of various glass bottles and plastic bottles.
STANDARD
QB2357, QB/T1868, YY 0056, YBB 00012012, GBT 8452, GB 2637, YBB 00332002, YBB 00042012, YBB 00052012
TECHNICAL PARAMETER
|
Sample diameter |
Positive claw 3-55mm, reverse claw 55-145mm |
|
Centering chuck |
Four-claw/three-claw optional |
|
Measuring range |
0-12.7mm |
|
Measuring table positioning method |
Universal bracket |
|
Resolution |
0.001mm |
|
Indication error |
±0.005mm |
|
Measurement error |
≤0.05mm |
|
Measurable height |
5mm-400mm |
|
Data output method |
Can connect to computer to output data to EXCEL, Word table for data statistical analysis; (optional) |
|
Measurement parallelism |
330mm*240mm*240mm |
|
Weight |
20kg |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
