제품 상세 정보:
|
| 길이: | 범위 0-225mm | 정확성: | 0.01mm |
|---|---|---|---|
| 측정 축: | 높이 250mm, 직경 25mm | 순 중량: | 15KG |
| 강조하다: | automatic condom bursting tester,condom pressure volume tester,rubber plastic test equipment |
||

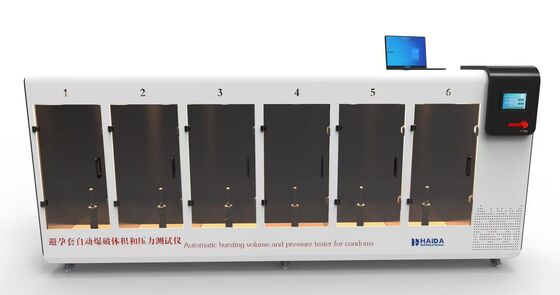

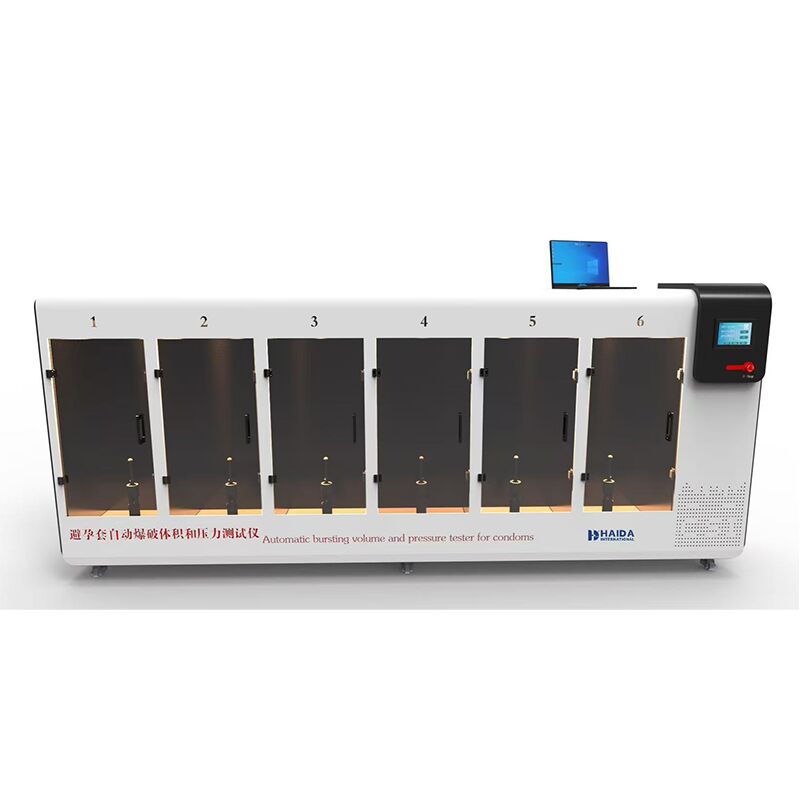

EQUIPMENT DETAILS OF 5105-HD AUTOMATIC CONDOM BURSTING VOLUME AND PRESSURE TESTER
PRODUCT DESCRIPTION
It is applicable to the determination of bursting capacity and bursting pressure volume of various condoms, rubber gloves and other products.
DESIGN STANDARD
GB7544,ISO4074
FEATURES
1. The shell is made of Q235 material and treated with baking paint to prevent rusting;
2. Sampling of test position materials with AL surface anodizing treatment;
3. The foot sampling is made of stainless steel, with good stability and adjustable horizontal function;
4. Observe the sampling of high temperature resistant tempered glass with a thickness of 6MM for the observation door;
5. Independently control the pressure and volume calculation of each workstation;
TECHNICAL PARAMETERS
|
Item |
Description |
|
Test Position |
6 |
|
Bursting Volume |
(0－60) L |
|
Burst Pressure |
(0－15.0)kPa； |
|
Bursting Volume Accuracy |
≤±3.0% |
|
Burst Pressure Accuracy |
≤±0.05kPa |
|
Inflation Rate |
(0.4－0.5)dm3/min, (24－30)dm3/min(automatic adjustment) |
|
Pressure Sensor Pressure Range |
0-30KPA |
|
Rotation Speed |
0-10R/MIN Step-less speed |
|
Position Material |
AL surface anodizing treatment |
|
Air Pressure |
0.4~0.5mpa |
|
Dimension |
3600*650*1500mm |
|
Power |
220V,50Hz |
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
