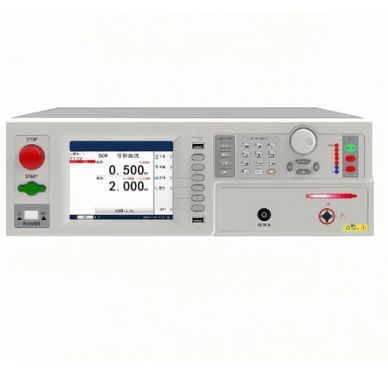

Series Partial Discharge Tester | IEC62368 G.5.4 Compliant High-Voltage PD Test System
Overview
The CS19010 Series is an advanced partial discharge tester designed for high-voltage insulation integrity evaluation in components such as optocouplers, magnetic couplers, IGBTs, MOSFETs, isolation substrates, and capacitors. This system performs precise partial discharge (PD) and withstand voltage tests, with a voltage output range of 0.1–10 kV and PD detection sensitivity from 1 pC to 10,000 pC. Complying with IEC62368 G.5.4, it serves as an essential tool for safety testing and quality assurance in both industrial and research environments.
Key Features
Dual-Function Testing: Combines partial discharge and withstand voltage testing in one instrument, with customizable high-voltage waveforms and judgment criteria.
Broad Compliance: Meets IEC62368 G.5.4, GB/T 7354-2018, IEC60270:2000, IEC60747-5-5, IEC60747-17, IEC60664-1, and IEC60747-15.
Precision Measurements: Covers leakage current from 0.01 µA to 1 mA and PD levels from 1 pC to 10,000 pC.
Programmable Operation: Allows adjustment of voltage ramp time (0.3–999.9 s), test duration, and PD detection delay.
Robust Performance: Operates reliably at 0–40°C and 15–95% RH with ≤1% waveform distortion.
Energy Efficient: Consumes ≤500 W, suitable for production and laboratory use.
Technical Specifications
Place of Origin: China
Brand: Kingpo
Certification: ISO9001, CE
Standard: IEC62368 G.5.4 (see document: IEC62368 G.5.4 Partial Discharge Tester.pdf)
Pulse Rate: 1–100 Hz
Power Supply: 220 VAC, 50/60 Hz
Calibration Capacitance: 5 pF, 10 pF, 100 pF
Dimensions & Weight:
Host: 426 × 136.5 × 527 mm, 22.5 kg
PD Test Module: 334 × 286 × 296.5 mm, 12 kg
Applications
Ideal for insulation performance validation in high-voltage isolation ICs, semiconductor devices, and insulating materials, ensuring compliance with international safety standards.
