Battery Capacity Voltage Discharge Resistant Tester With LCD Display

Battery Capacity Voltage Discharge Resistant Tester With LCD Display
Battery Capacity Voltage Discharge Resistant Tester With LCD Display

큰 이미지 :  Battery Capacity Voltage Discharge Resistant Tester With LCD Display

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE,,ISO
모델 번호: 9005-HD
결제 및 배송 조건:
최소 주문 수량: 1
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유 및 PP 필름으로 보호 된 다음 Operation Man과 강한 목재 케이스에 넣습니다.
배달 시간: 주문 확인 후 20 일
지불 조건: L/C, T/T, D/A, D/P, Western Union, MoneyGram
공급 능력: 한 달에 300 세트

Battery Capacity Voltage Discharge Resistant Tester With LCD Display

설명
애플리케이션: 배터리시험 배선 방법: AC 3 상 4 와이어
표시하다: LCD 현재 범위: 0-10A
해결: 0.001V/0.001A 배선 방법: AC 220V
정확성: ± 0.1% 전원 공급 장치: AC
강조하다:

Battery Voltage Discharge Resistant Tester

,

LCD Display Discharge Resistant Tester

Detailed Information

  • Place of Origin: China

  • Brand Name: Kingpo

  • Certification: ISO9001, CE

  • Maximum Measurements: 10

  • Tabs: 11 (Tab 0: Test voltage waveform and settings; Tabs 1–10: Individual test results)

  • Default Waiting Time: 12 ms

  • Default Threshold: 98%

  • Key Applications: AV test equipment, TV test equipment

Product Overview

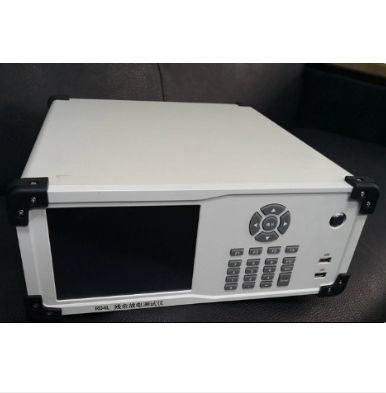

The RD4L Battery Capacity and Discharge Resistance Tester is designed for automated residual discharge testing of batteries and power interfaces. It provides precise voltage waveform analysis and supports multiple consecutive measurements with configurable parameters.

Software Features

  • Start Control: Initiates the discharge test sequence

  • Measurement Count: Configurable number of tests (up to 10)

  • Peak/Valley Selection: Allows selection between peak or valley discharge modes

  • Data Management: Clear or save results (data and waveforms) to designated folders

  • Real-time Display: Shows voltage amplitude, RMS, frequency, and live waveforms

Tab Functions

  • Tab 0: Configures test settings (waiting time, threshold) and displays real-time supply voltage waveform and parameters

  • Tabs 1–10: Each tab displays detailed results of a single test, including:

    • Disconnect voltage

    • Voltage values at 1s and 2s intervals

    • 37% voltage decay time and level

    • Vernier measurements for time and voltage (in V and %)

Operation Procedure

  1. Set parameters: waiting time, threshold, measurement count, and peak/valley mode

  2. Click “Start” to run automated tests

  3. Review results in respective tabs

  4. Save data and waveforms as neededBattery Capacity Voltage Discharge Resistant Tester With LCD Display 0

  •
  • Battery Capacity Voltage Discharge Resistant Tester With LCD Display 1
