제품 상세 정보:
|
| 재료: | 강철 | 선택적 기능: | 사용자 정의 가능한 하중 용량 및 치수 |
|---|---|---|---|
| 예어: | 가구 시험기 | 힘: | 전자 |
| 테스트 방법: | 동적 및 정적 부하 테스트 | 전원 공급 장치: | AC/DC |
| 사용: | 의자 | 유형: | 테스트 장비 |
| 장치 스위치: | 그프, 크그프, 엔, 라이브프, Ｗ, 나트, Ｔ | 운전 모드: | 가변 주파수 모터와 타이밍 벨트 |
| 전원: | 전기 | LCD 디스플레이: | 예 |
| 조절 가능한 팔걸이: | 예 | ||
| 강조하다: | 5125-HD Burning Test Machine,Burning Test Machine with Adjustable Armrests |
||

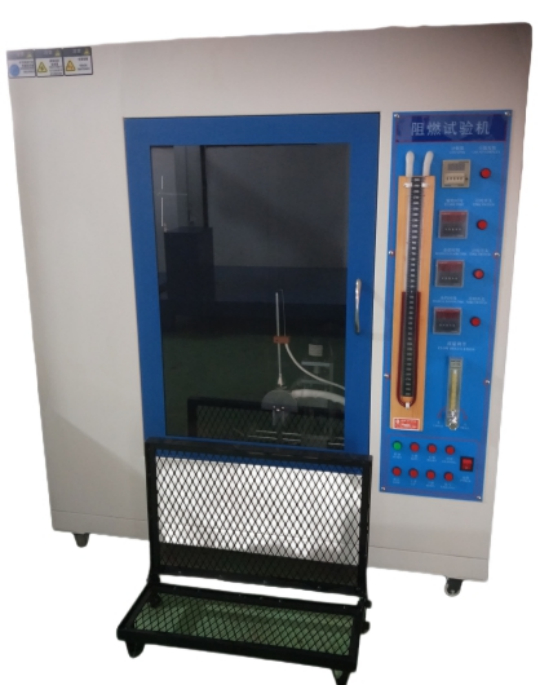

5125-HD Burning Test Machine
APPLICATIONS & TEST PURPOSE:
This device is suitable for determining the non-flammability performance of samples under direct burning by specified fire sources.
The device consists of a control panel, air box, combustion nozzle, solenoid valve, high-voltage igniter, sample holder, gas pipe, gas source, flow meter, U-shaped manometer, and signal control lines (as shown in Figure 1). The entire combustion test process of this machine is fully automated, such as electronic ignition, flameout time, combustion time, and number of combustions can all be automatically completed.
STANDARD: ISO 7176-10.8;GB/T 18029.10-2009
STANDARD FEATURES
|
Item |
Specification |
|
Nozzle inner diameter |
6.5mm |
|
Length |
200+10mm |
|
Test inclination angle |
20,45,90 degrees with manual switching |
|
Flame height |
adjustable from 20mm to 175mm |
|
Flame application time |
adjustable from 0-999.9s+0.1s |
|
Afterflame time |
0-999.9s+0.1s,automatically recorded, manually paused |
|
Afterbum time |
0-999.9s+0.1s,automatically recorded, manually paused |
|
Combustion gas |
98% methane gas or 989 propane gas (usually liquefied petroleum gas can be used as a substitute) |
|
Flow and pressure |
flow meter and U-shaped pressure gauge |
|
Test background |
black background |
|
Test process |
manual control of the test program, independent ventilation Chamber volume: 0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable) |
|
Chamber volume |
0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable) |
|
Cabinet material |
mirror stainless steel |
|
Equipment dimensions |
1000mm x 650mm x 1300mm(L*W*H) |
