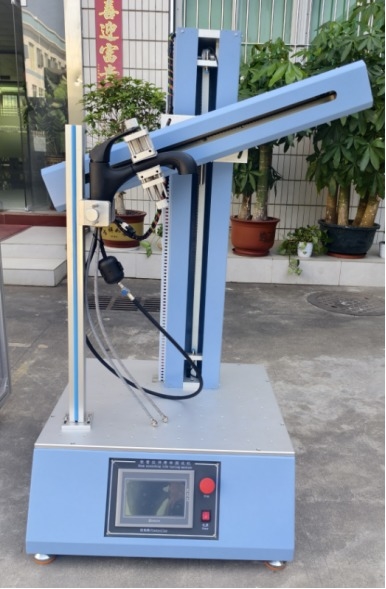

5068-HD Hose Tensile Life Testing Machine
Product Specifications
| Attribute |
Value |
| Heat Source |
Ceramic heater |
| Touch Screen |
LCD |
| Display |
LCD screen |
| Testing Time |
Adjustable |
| Test Parameters |
Temperature, pressure, weight, etc. |
| Test Results |
Quantitative and qualitative data |
| Test Methods |
Impact, abrasion, chemical resistance, etc. |
| Usage |
Testing cookware for durability and safety |
| Steel Impact Hammer |
1KG ±50g mass |
| Customized |
Welcome |
| Test Cyclic |
15000 cyclic (adjustable) |
| Factory |
Yes |
| Application |
Laboratory, Kitchen |
| Transportation |
By Sea |
Applications & Testing Purpose
This specialized testing machine performs tensile tests on hoses and shower heads. It conducts fatigue tests under controlled stroke, speed, and load conditions to evaluate sample quality, improve product performance, and reduce defect rates.
Machine Features
Constructed with premium imported components including motors, bearings, copper and aluminum materials, PLC programming, and a 7-inch color touch screen. Features ball screw transmission for precise operation. Designed for user-friendly operation with intuitive controls and efficient testing capabilities.
Standard Specifications
| Feature |
Specification |
| Test station |
Station 1 |
| Test speed |
Adjustable 0-30 times/minute (PLC controlled) |
| Test count |
Programmable 0-99999999 |
| Lifting method |
Motorized, programmable height |
| Stretching method |
Electric actuation |
| Test samples |
0-400mm for U-tube and bevel stretching |
| Control mode |
PLC software with 7-inch color touch screen |
| Transmission system |
AC servo motor |
| Power Supply |
220V 50HZ, 750W |
| Weight |
Approximately 150kg |
| Machine Dimension |
Custom designed for sample size |
