IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen

IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen
IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen

큰 이미지 :  IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: ISO
모델 번호: 5063-HD
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유와 PP 필름으로 보호된 다음 작업 담당자와 함께 강한 나무 케이스에 넣습니다.
배달 시간: 명령 뒤에 있는 20 일은 확인했습니다
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram, 현금, 에스크로
공급 능력: 한 달에 30 세트

IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen

설명
수온은 유지합니다: 60±2C 탱크 본체 재료: 2~5 분당 사이클수
기계 크기: 1350mm*1050mm*2550mm 총 체중: 210 킬로그램
발열원: 세라믹히터 터치 스크린: LCD
치수: 1100mm*532mm*389mm 표시하다: LCD 화면
시험 시간: 조절할 수 있는 probme에 대한 답장: 24시간 이내에
영향력: 1 M 테스트 파라메타: 온도, 압력, 체중 등
검사 결과: 정량 및 질적 데이터 스케일 해상도: 1'
시험하중: 50N 힘: 1 상, AC 220V, 50 ℃ 60Hz
테스트 타격: 20 ~ 66mm 코팅 두께: 25μm
검사 방법: 충격, 마모, 화학 저항 등 스케일 표시: 1 급
용법: 내구성과 안전을위한 조리기구 테스트
강조하다:

Toilet Seat Endurance Test Machine

,

Cookware Toilet Seat Endurance Test Machine

5063-HD IEC 60335-2-84 Toilet Seat Endurance Test Machine
Product Specifications
Attribute Value
Water temperature maintain 60±2℃
Tank body material 2~5 cycles per minute
Machine Size 1350mm*1050mm*2550mm
Gross Weight 210KG
Heat source Ceramic heater
Touch screen LCD
Dimensions 1100mm*532mm*389mm
Display LCD screen
Testing Time Adjustable
Reply For Problem Within 24 hours
Leverage 1 m
Test Parameters Temperature, pressure, weight, etc.
Test Results Quantitative and qualitative data
Scale Resolution
Test Load 50N
Power 1 phase, AC 220V, 50~60Hz
Test Stroke 20~66mm
Coating Thickness 25μm
Test Methods Impact, abrasion, chemical resistance, etc.
Scale Display 1 degree
Usage Testing cookware for durability and safety
Applications & Test Purpose

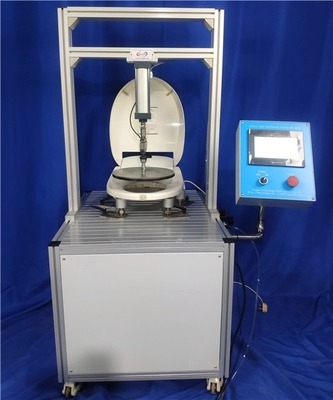

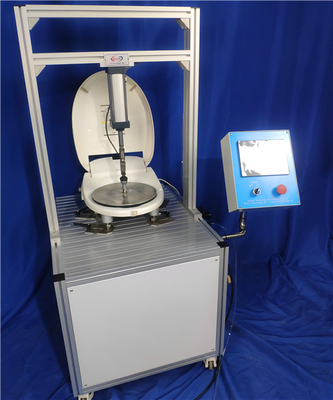

The machine is designed primarily for conducting fatigue and strength tests on toilet seat cover plates. It performs repeated tests under preset force values, stroke, displacement, time, and speed conditions to evaluate product quality.
Technical Composition
This professional testing device combines cylinders, force value sensors, guide rods, PLC software, touch screen control, magnetic fixture blocks, A3 steel plates, and stainless steel materials for comprehensive toilet seat testing.
Standards Compliance
IEC 60335-2-84:2019; GB/T 4706.53-2024

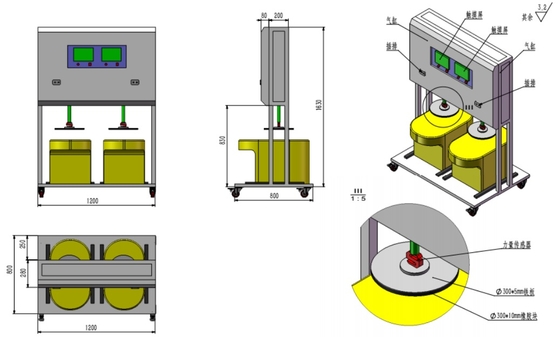

Standard Features
Feature Specification
Test Stations 2 stations (independent operation, no interference)
Functional Modes Group A: Lid load fatigue test, Seat ring load life test
Group B: Seat ring strength & Lid strength test
Test Stroke 0-500mm (PLC programmable)
Test Force 0-4000N (PLC programmable)
Force Accuracy 0.001 grade
Sampling Rate 1/250,000
Test speed 0-500mm/min (PLC programmable)
Control Method PLC software + touchscreen operation
Motion Method Pneumatic control (up/down movement)
Test Duration 0-99H99M99S (PLC programmable)
Delay Function 0.1-9.95 settable
Cycle count 0-9,999,999 Cycles (PLC programmable)
Sample Size 720x420x800mm(LxWxH)
Pressure Plate Config ①300mm: 5mm steel + 10mm rubber
②76mm rubber disc (19mm thick, Shore hardness 70°)
Power supply 220V/50Hz
Equipment Weight 300kg
Dimensions 1200x800x1630mm
About Haida International Equipment Co., Ltd
Established in 2004 and located in Dongguan city, Guangdong Province, China, we specialize in the production and R&D of various material physical properties testing equipment. Our facilities include an independent research and development center and four testing equipment production lines: textile, footwear, leather, and mask testing equipment.
IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen 0
IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen 1
IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen 2
IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen 3
IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen 4
IEC 60335-2-84 Toilet Seat Endurance Test Machine with LCD Touch Screen 5
Why Choose Haida?
  • Design & Production: Custom solution consultation for each order with cost-performance recommendations and special model development
  • Shipping & Delivery: One-stop service from production to door delivery, including installation, training, and technical support
  • Warranty: 1 year warranty with lifetime technology support
  • After-Sale Service: Quick response within 2 hours with video inspection and on-site service options
Frequently Asked Questions
How about your warranty?
Our standard warranty is one year, including technical support and parts replacement. If necessary, our engineers can provide on-site service.
What is the order process?
Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Can we visit your factory before ordering?
Yes, we warmly welcome visits and can assist with hotel arrangements and airport pickup.
Do you accept customization service?
Yes, we offer both standard machines and customized solutions tailored to your specific requirements.
