제품 상세 정보:
|
| 챔버 부피: | 유리 관측 도어가있는 ≥0.5 m³ | 내부 조명: | <20 럭스 |
|---|---|---|---|
| 연료: | 부탄 가스 (≥95% 순도); 버너 튜브에 공기를 유입하지 않습니다 | 플레임 높이: | 조정 가능 : 12mm ± 1mm (측정 게이지 포함) |
| 구동 메커니즘: | 자동화됩니다 | 타이머: | 조정 가능한 범위 : 0-999.9 초; 구성 가능한 점화/지속 시간 기록 |
| 온도 디스플레이: | 범위 : 0-1000 ° C; 해상도 : 1 ° C | 전원 공급: | AC 220V, 50Hz, 1KVA |
| 강조하다: | Touch Screen Needle Flame Testing Machine,Needle Flame Testing Machine,Motorized Drive Needle Flame Testing Machine |
||

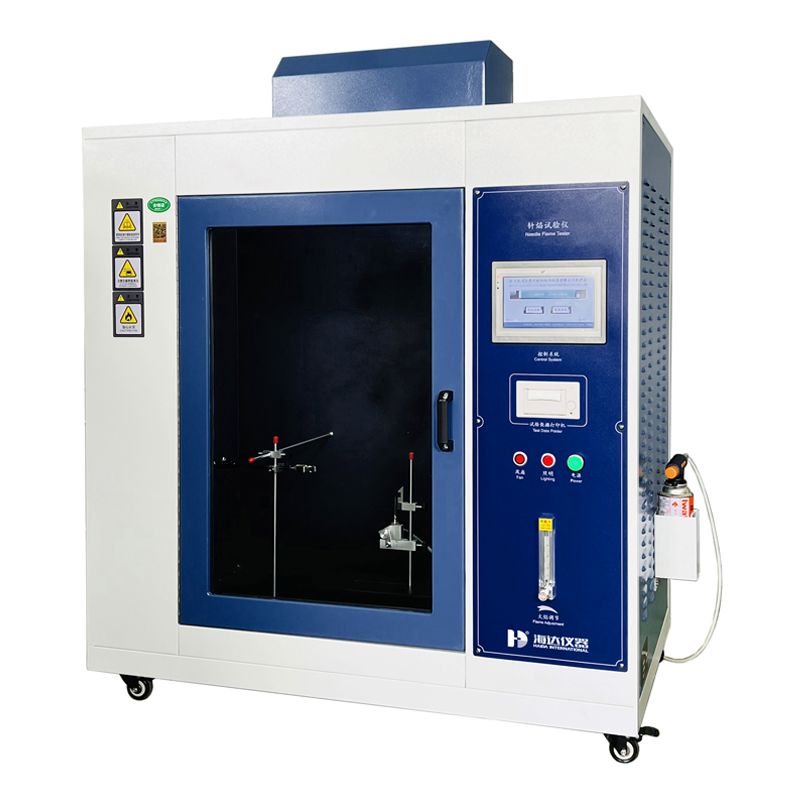

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards. It is applied when glow-wire or horizontal-vertical flame tests are unsuitable for small components. If a sample ignites during glow-wire testing, the needle flame test further evaluates combustion risks. Suitable for parts of electrical/electronic products and household appliances (e.g., terminal blocks, centrifugal switches, rice cooker sockets).
IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC 60335-1, GB 4706.1, UL 60065
| Model | 6012-HD |
| Chamber Volume | ≥0.5 m³, with glass observation door |
| Internal Illuminance | <20 Lux |
| Fuel | Butane gas (≥95% purity); no air ingress into burner tube (user-provided) |
| Burner Specifications | Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm. |
| Flame Height | Adjustable: 12mm±1mm (includes measuring gauge). |
| Flame Temperature | 100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included. |
| Temperature Display | Range: 0-1000°C; Resolution: 1°C |
| Timer | Adjustable: 0-99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording. |
| Drive Mechanism | Motorized |
| Key Features | Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation. |
| Power Supply | AC 220V, 50Hz |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
