제품 상세 정보:
|
| 버너: | BS 6941 표준을 준수합니다 | 타이머: | 조정 가능 : 0-99 분 99 초 |
|---|---|---|---|
| 샘플 클램프 크기: | 150mm × 560mm | 플레임 높이: | 20mm ± 2mm |
| 전원 공급: | AC 220V, 50HZ | 차원 (L×W×H): | 1000 × 600 × 1100mm (조절 가능) |
| 강조하다: | Toy Comprehensive Combustion Test Machine,Industrial Test Equipment With Touch Screen,Touch Screen Toy Flammability Tester |
||

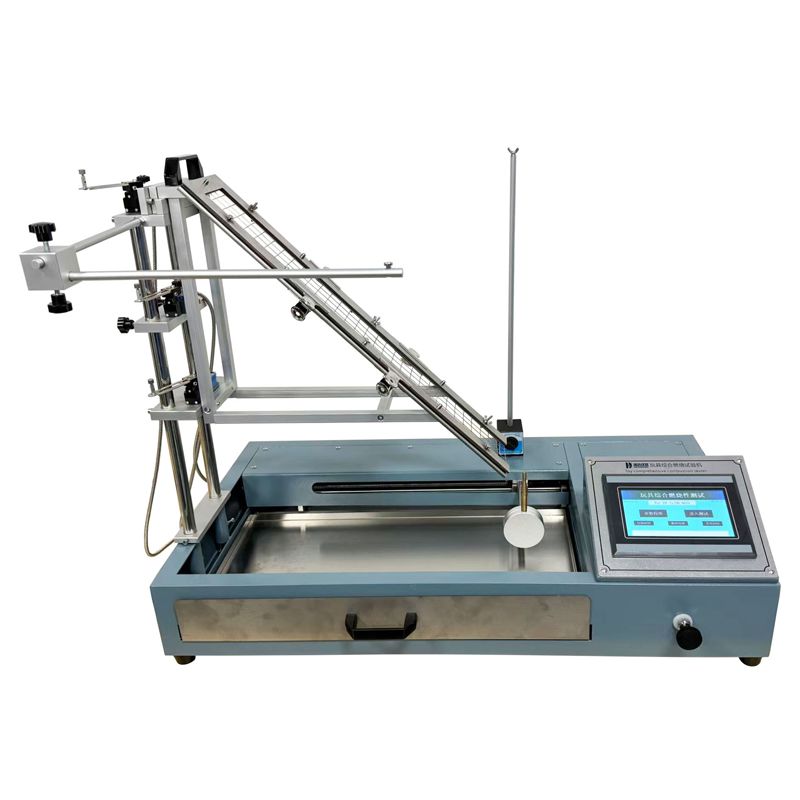

Toy Comprehensive Combustion Tester tester evaluates the combustion performance of children's clothing, toys, and accessories by measuring burning speed and duration.
It is designed for: Children's costumes (e.g., capes, flowing garments), Enclosed toys (e.g., play tents, toy houses), Soft-filled toys (e.g., plush toys), Wearable toys (e.g., masks, wigs).
EN 71-2:2020, GB 6675.3-2014
Compact design: Portable with micro gas cylinder connection (external large tanks optional).
Automated operation: Motor-driven burner with PLC-controlled timing.
Direct measurement: Records burning speed during thread tests.
| Parameter | Description |
| Dimensions (L×W×H) | 1000×600×1100mm (adjustable) |
| Burner | Complies with BS 6941 standard |
| Timer | Adjustable: 0-99 minutes 99 seconds |
| Sample Clamp Size | 150mm × 560mm |
| Flame Height | 20mm ± 2mm |
| Accessories | Includes: • Test frame (1 unit) • Cotton thread (1 roll) • Measuring ruler (1 unit) • Cleaning brush (1 unit) • Butane cylinders (2 units) • Gas supply system (1 set) |
| Power Supply | AC 220V, 50Hz |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
