제품 상세 정보:
|
| 시험 채널: | 5 개의 독립적 인 테스트 그룹 | 전압 안정도: | ± 1% |
|---|---|---|---|
| 시험 전압 사거리: | 100V-6000V (지속적으로 조정 가능) | 출력 전압 모드: | AC/DC (전환 가능) |
| 전압 조절기: | 출력 : 0-250V 조정 가능; 용량 : 5kva | 시험 기간: | 6시간입니다 |
| 액적 간격: | 조정 가능 : 0-99.99 초/분/시간 | 챔버 부피: | 900L × 650W × 950H (mm); 0.56 m³ |
| 전원 공급: | AC 220V, 50Hz, 1KVA | ||
| 강조하다: | High Voltage Tracking Resistance Test Machine,High Voltage Tracking Resistance Test Equipment,6000V Tracking Resistance Test Equipment |
||

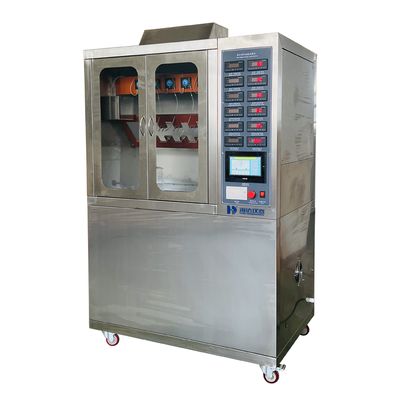

This instrument is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. It simulates severe environmental conditions by applying liquid contaminants and inclined samples under power frequency (45Hz-65Hz) to assess the tracking and erosion resistance grades of electrical insulation materials.
| Model | 6007-HD |
| Test Channels | 5 independent test groups. |
| Voltage Stability | ±1% |
| Test Voltage Range | 100V-6000V (continuously adjustable) |
| Output Voltage Mode | AC/DC (switchable) |
| Voltage Regulator | Output: 0-250V adjustable; Capacity: 5kVA |
| Test Transformer | Capacity: 5kVA; Max. output voltage: AC 6000V |
| High-Precision Stabilizer | Output: AC 220V; Power: 6000W; Accuracy: ±1% |
| Electrodes | Material: 304 stainless steel, thickness: 0.5mm; Electrode spacing: 50.0mm ±0.1mm |
| Overcurrent Protection | Trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop). |
| Tracking Criteria | Per GB/T 6553-2014 Clause 4.1.2: Voltage applied (2.5kV/3.5kV/4.5kV) with contaminant flow; current must remain below 60mA for 6 hours to pass. |
| Test Duration | 6 hours. |
| Droplet Interval | Adjustable: 0-99.99 seconds/minutes/hours |
| Droplet System | High-precision peristaltic pump (LEAF); Flow rate: 0.00185-20 mL/min; Speed: 0.1-50 rpm; Accuracy: <0.5%. |
| Test Solution | Mixture of ammonium chloride, isooctylphenoxy polyethoxy ethanol (nonionic wetting agent), and deionized water. Resistivity: (3.95 ±0.05) Ω·m at (23±1)°C |
| Filter Paper | Standard dimensions; Thickness: 0.15-0.17mm |
| Chassis Material | SUS304 stainless steel (brushed finish) |
| Contaminant Tank | 316 stainless steel with sealed design. |
| Chamber Volume | 900L × 650W × 950H (mm); 0.56 m³ |
| Overall Dimensions | 1300L × 700W × 1800H (mm) |
| Control System | PLC + touchscreen; Automated report generation; Built-in thermal printer for real-time results. |
| Design Features | Integrated structure with control panel on the right |
| Glass-view door for observation | |
| Top-mounted exhaust fan for fume extraction post-test |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
