5033-HD Wipes Flushability Tester for Packaging Testing

5033-HD Wipes Flushability Tester for Packaging Testing
5033-HD Wipes Flushability Tester for Packaging Testing 5033-HD Wipes Flushability Tester for Packaging Testing

큰 이미지 :  5033-HD Wipes Flushability Tester for Packaging Testing

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE、ISO
모델 번호: 5033-HD
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유 및 PP 필름으로 보호 된 다음 Operation Man과 강한 목재 케이스에 넣습니다.
배달 시간: 주문 확인 후 20 일
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 한 달에 300 세트

5033-HD Wipes Flushability Tester for Packaging Testing

설명
디자인 표준: ASTM D646, JIS P8124, QB / T 1671 작동 방법: 마이크로 컴퓨터 제어
테스트 표준: ISO, ASTM, TAPPI 낙하 시험: 샘플의 모서리, 가장자리, 면
용법: 포장 테스트 색상: 선택 과목
로드 범위: 0 ~ 60g (0 ~ 100g 지정) 애플리케이션: 패키지 테스트
제어 장치: PLC 컨트롤러 및 터치 스크린 패널 구조: AC 주파수 변환 모터 (대만);
테스트 영역: 10 ± 0.05cm ^ 2 테스트 력 정확도: < 표시값의 ±1%
테스트 표준: ISO, ASTM, TAPPI 등 정확성: ± 1%
기준: ASTM D6055 테스트 사이클 설정: 4 자리 사전 설정 카운터
기원: 중국 샘플 크기: 100 (l) × 63 (w) mm
해결: 1/100,000 표시하다: 디지털
로드 셀 해상도: 1/250,000 여행 속도: 초당 20-80mm에서 조정 가능합니다
강조하다:

5033-HD Wipes Flushability Tester

,

Wipes Flushability Tester

5033-HD Wipes Flushability Tester
Product Attributes
Attribute Value
Design Standards ASTM D646, JIS P8124, QB / T 1671
Operating Method Microcomputer Control
Testing Standards ISO, ASTM, TAPPI
Drop Test Corners, edges, faces of sample
Usage Packaging Testing
Color optional
Load Range 0~60g (designated 0~100g)
Application Package Testing
Controller PLC controller and touch screen panel
Structure AC Frequency Conversion Motor (Taiwan)
Test Area 10 ± 0.05cm ^ 2
Test Force Accuracy < ±1% of the display value
Test Standards ISO, ASTM, TAPPI, etc.
Accuracy ±1%
Standard ASTM D6055
Test Cycles Setting 4 digits pre-set counter
Origin China
Sample Size 100(L)×63(W)mm
Resolution 1/100,000
Display Digital
Load Cell Resolution 1/250,000
Travel Speed adjustable from 20 - 80 mm per second
Product Description
5033-HD Wipes Flushability Tester for Packaging Testing 0

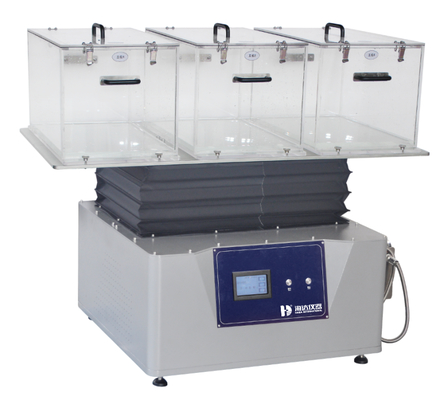

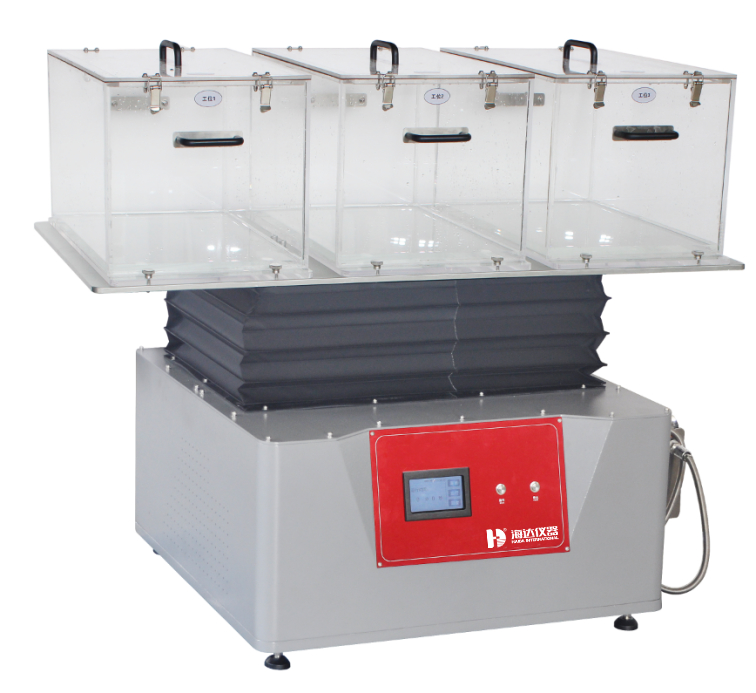

The 5033-HD Wipes Flushability Tester is designed for testing the flushability of disposable sanitary non-woven materials that can be dispersed and degraded directly into the toilet bowl. This includes wet toilet paper (dry/wet wipes for toilet use), dry/wet wipes for feminine hygiene, and dry/wet wipes for sanitary care of infants and young children.
Test Standard
GB/T 40181-2021
Product Features
  • Large screen color touch screen display operation with Chinese and English dual-language free switching
  • Servo motor drive for smooth running and more accurate speed
  • Sliding dismantling test box for easy loading and removal of test samples
  • Equipped with standard mesh sieve, flowmeter, and standard spray nozzle to ensure test result accuracy
Standard Features
Item Description
Test speed 1~50RPM (adjustable)
Measuring time 0 ~ 9999 minutes and 59 seconds can be set
Shaking box 3 stations
Shaking box internal dimension (L*W*H) 430*330*300mm
Mesh screen φ200mm
Mesh φ12.5mm
Power 220V, 50HZ, 500W
Dimensions(L*W*H) 1100*600*600mm
Weight About 80kg
5033-HD Wipes Flushability Tester for Packaging Testing 1 5033-HD Wipes Flushability Tester for Packaging Testing 2 5033-HD Wipes Flushability Tester for Packaging Testing 3
