제품 상세 정보:
|
| 디자인 표준: | ASTM D646, JIS P8124, QB / T 1671 | 작동 방법: | 마이크로 컴퓨터 제어 |
|---|---|---|---|
| 최소 정보판독: | 0.1 | 일탈을 떨어뜨리기: | ±10mm |
| 로드 해상도: | 1/250,000 | 테스트 표준: | ISO, ASTM, TAPPI |
| 낙하 시험: | 샘플의 모서리, 가장자리, 면 | 정격 굽힘 각도: | ± 7.5 ° 및 ± 15 ° |
| 용법: | 포장 테스트 | 합판 크기: | H48in * d48in |
| 압축 공기: | 6 kg/cm2 | 테스트 로드 옵션: | 55g, 175g, 275g |
| 드라이브 모드: | 동력 구동 | 로드 셀 해상도: | 1/250,000 |
| 강조하다: | Stick Viscosity Tester 5028-HD,Packaging Stick Viscosity Tester,Constant Temperature Stick Viscosity Tester |
||
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB/T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ±7.5° and ±15° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm² |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | Power-driven |

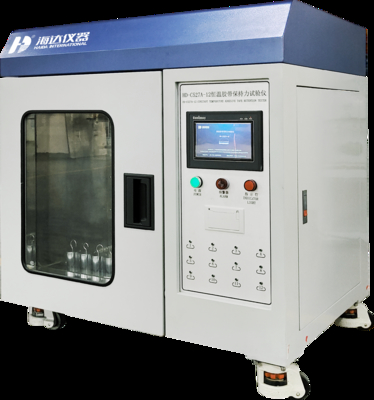

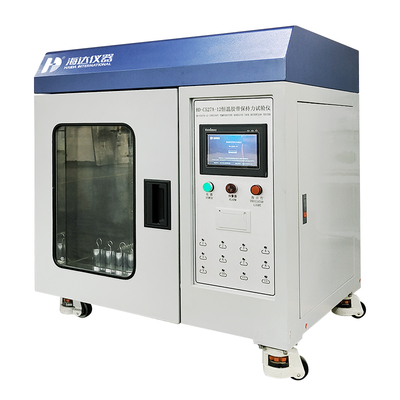

Designed and manufactured in accordance with GB 4851 (pressure-sensitive adhesive tape stickiness test method) and plaster adhesion test method standards. Suitable for testing pressure-sensitive adhesive tapes, self-adhesives, plaster, hot sol, and similar products.
| Feature | Specification |
|---|---|
| Number of test groups | 12 groups |
| Timing mode | PLC system setting program record |
| Test Indicator | Separate metal indicator light |
| Inner box lighting | 24W high temperature resistant lamp (can withstand 500°C) |
| Test temperature | Normal temperature~200°C |
| Temperature control mode | PLC system sets program to adjust temperature and constant temperature time |
| Temperature display | 0.1°C |
| Temperature control accuracy | ±1°C |
| Standard weight | 1000g±5g (including loading plate weight) |
| Heating method | Hot air circulation |
| Test steel plate | 150(L)*50(B)*2(D)mm |
| Test steel plate materials | SUS304 mirrored stainless steel sheet |
| Standard test plate roughness | Mirror 50nm±25nm |
| Safety device | Power-off protection for over-temperature and electric overload |
| Machine material | Internal SUS304# stainless steel plate, external high-grade steel plate with baked paint |
| Inner box size | 448*350*540mm (L*W*H) |
| Dimensions | 960*660*960mm (L*W*H) |
| Weight | Approximately 320kg |
| Power supply | AC220V 2100W |
