제품 상세 정보:
|
| 디자인 표준: | ASTM D646, JIS P8124, QB / T 1671 | 작동 방법: | 마이크로 컴퓨터 제어 |
|---|---|---|---|
| 최소 정보판독: | 0.1 | 일탈을 떨어뜨리기: | ±10mm |
| 로드 해상도: | 1/250,000 | 테스트 표준: | ISO, ASTM, TAPPI |
| 낙하 시험: | 샘플의 모서리, 가장자리, 면 | 정격 굽힘 각도: | ± 7.5 ° 및 ± 15 ° |
| 용법: | 포장 테스트 | 합판 크기: | H48in * d48in |
| 압축 공기: | 6 kg/cm2 | 테스트 로드 옵션: | 55g, 175g, 275g |
| 드라이브 모드: | 동력 구동 | 로드 셀 해상도: | 1/250,000 |
| 강조하다: | coefficient friction tester,Paper Packaging Testing Friction tester,coefficient friction Tester 5027-HD |
||

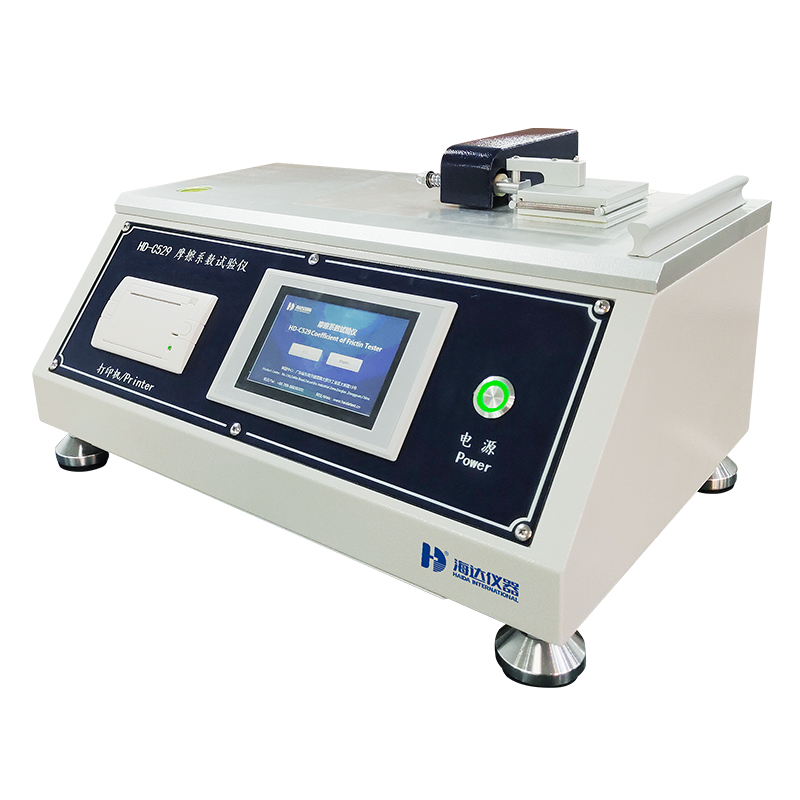

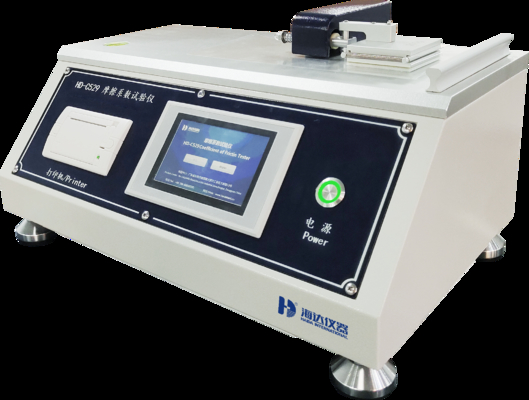

This tester complies with GB 10006-88 and ISO 8295-1986 standards for measuring dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness < 0.2mm) when sliding on themselves or other materials. Suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The measured friction coefficient indicates product smoothness.
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB/T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ±7.5° and ±15° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm² |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | Power-driven |
| Specification | 5027-HD |
|---|---|
| Control mode | Touch screen control |
| Test stroke | 1-200mm |
| Test speed | 100±10mm/min (speed adjustable) |
| Slider weight | 200±2g (others can be customized) |
| Upper sample size | 63mm*63mm (L*W) |
| Lower sample size | 80mm*200mm (L*W) |
| Force test accuracy | ±0.02N |
| Measuring range | 0.001-5N (expandable) |
| Instrument dimensions | Approx. 490*320*210mm (L*W*H) |
| Usage environment | Indoor temperature 20±10℃, relative humidity <85% |
| Power supply | 1∮ AC220V |
| Machine weight | Approx. 18kg |
| Power | Approx. 350W |
The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force test module for uniform linear motion. Samples are secured under the handle, and the system calculates friction coefficients during motion, with results printed upon completion.
