제품 상세 정보:
|
| 디자인 표준: | ASTM D646, JIS P8124, QB / T 1671 | 작동 방법: | 마이크로 컴퓨터 제어 |
|---|---|---|---|
| 최소 정보판독: | 0.1 | 일탈을 떨어뜨리기: | ±10mm |
| 로드 해상도: | 1/250,000 | 테스트 표준: | ISO, ASTM, TAPPI |
| 낙하 시험: | 샘플의 모서리, 가장자리, 면 | 정격 굽힘 각도: | ± 7.5 ° 및 ± 15 ° |
| 용법: | 포장 테스트 | 합판 크기: | H48in * d48in |
| 압축 공기: | 6 kg/cm2 | 테스트 로드 옵션: | 55g, 175g, 275g |
| 드라이브 모드: | 동력 구동 | 로드 셀 해상도: | 1/250,000 |
| 강조하다: | 5023-HD Diaper Liquid Penetration Tester,Liquid Penetration Tester,Nonwoven Fabrics Liquid Penetration Tester |
||
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB / T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ± 7.5 ° and ± 15 ° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm2 |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | Power-driven |
| Load Cell Resolution | 1/250,000 |

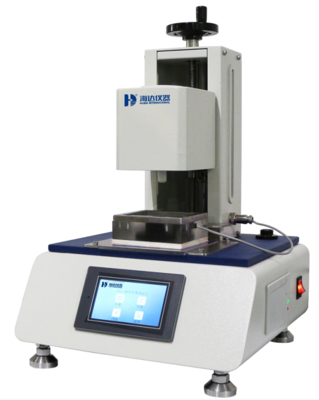

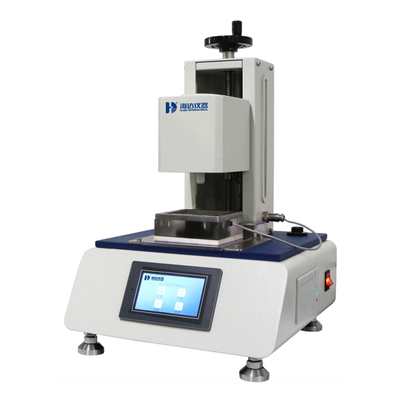

Designed for liquid penetration testing of thin nonwoven fabrics used in sanitary products including sanitary napkins, diapers, and other covering materials.
FZ/T60017; GB/T24218.8; GB/T24218.13; GB/T24218.14
| Item | Description |
|---|---|
| Burette capacity | 50ml |
| Control liquid flow rate | 25ml flows in (3.5±0.25)s |
| Distance between funnel tip and sample | Adjustable |
| Substrate material | Plexiglass |
| Penetrating disc size | 100 x 100 x 25mm |
| Sample size | 125 x 125mm |
| Timer | 0～9999.99s, accuracy: 0.01s |
| Total weight of penetrating disc | 500g |
| Power supply | AC220V±10％ 50HZ |
| Power | 50W |
| Weight | 5Kg |
| Size | 240 x 400 x 320mm |
