제품 소개종이 포장 시험 기구

HD-A513-C Paper Bowl Compression Test Machine with Digital Display

인증
중국 Hai Da Labtester 인증
중국 Hai Da Labtester 인증
고객 검토
그렇습니다 우리는 기계를 지난 주에 받았습니다. 이 기계는 좋, 판매 후 serives를, 이었습니다 아주 직업적 감사합니다.

—— 피터 Maas

회사 대신 당신의 공장과 회사를 방문하기 위해, 기술 직원은 매우 전문적이고 인내심을 가지고 있습니다, 나는 다시 당신과 협력하는 것을 기쁘게 생각합니다.

—— Steve Hubbard

제가 지금 온라인 채팅 해요

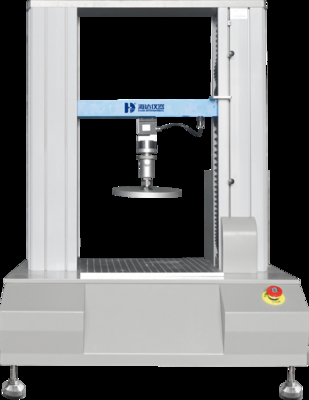

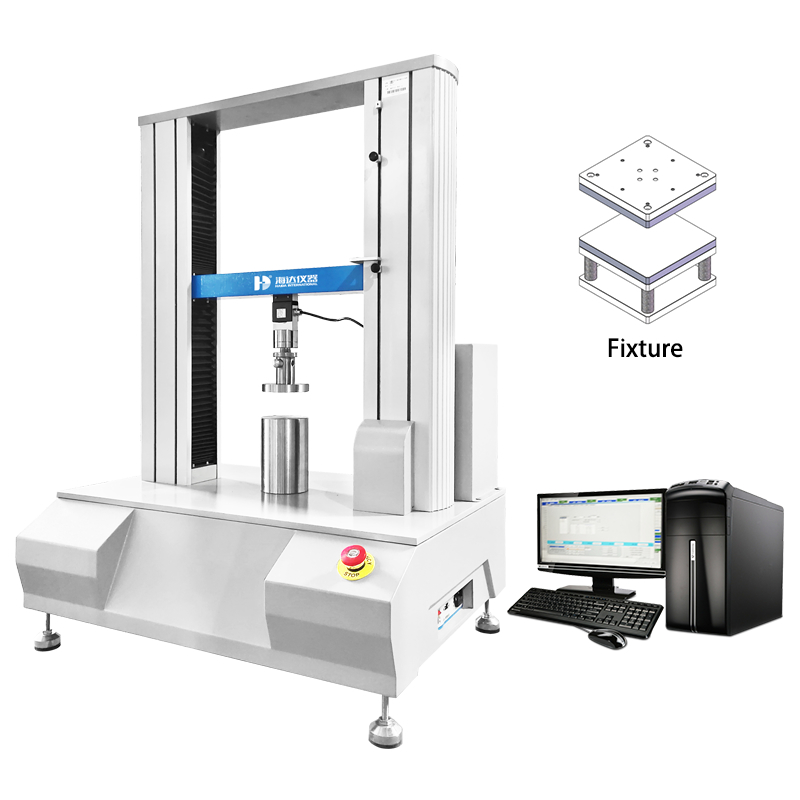

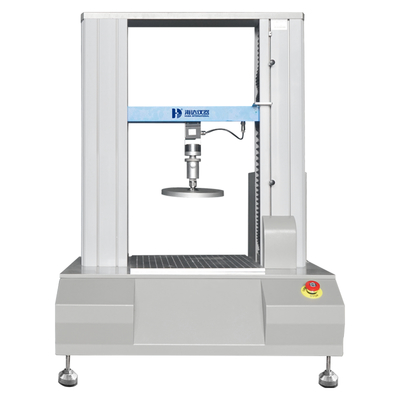

HD-A513-C Paper Bowl Compression Test Machine with Digital Display

HD-A513-C Paper Bowl Compression Test Machine with Digital Display
HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display

큰 이미지 :  HD-A513-C Paper Bowl Compression Test Machine with Digital Display

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE、ISO
모델 번호: HD-A513-C
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유 및 PP 필름으로 보호 된 다음 Operation Man과 강한 목재 케이스에 넣습니다.
배달 시간: 명령 뒤에 있는 20 일은 확인했습니다
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 한 달에 300 세트

HD-A513-C Paper Bowl Compression Test Machine with Digital Display

설명
기능: 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 이름: 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기
표시하다: LCD, 디지털 디스플레이 낙하 시험: 샘플의 모서리, 가장자리, 면
표시 방법: 디지털 디스플레이 생산자: 광동 중국 (본토)
리포트 출력: 소형 프린터, 감열 인쇄 모델: 마이크로 컴퓨터 제어
드라이브 모드: 동력 구동 정확도 측정: 0.20ΔE*AB
시간 표시: 테스트 중 시간을 표시하려면 (S) 소프트웨어: TM 2101
발광물: D65 힘: AC 220V,50Hz
진폭 범위: 25.4 밀리미터 (1 인치) 외부 치수: 400 (l) × 210 (w) × 395 (h) mm
수분 범위: 0 ~ 50% 강제 독서: KGF, IBF, N, KN, T 등
마찰 부하: 908G (2LB) | 1810G (4 lb) 테스트 환경: 온도 : 23 ± 2, 습도 : 20%RH-70%RH
측정 범위: 0-5 n 장파 자외선: 365
작동 모드: 컴퓨터
강조하다:

HD-A513-C Compression Test Machine

,

Paper Bowl Compression Test Machine

HD-A513-C Paper Bowl Compression Test Machine
Product Overview

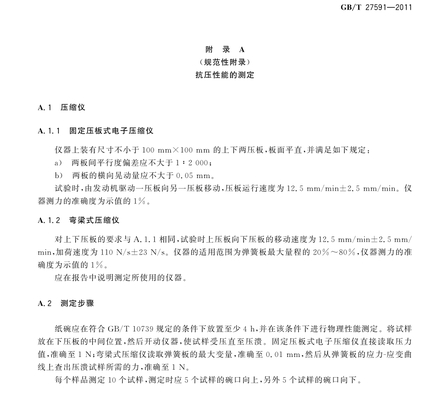

Specialized equipment for testing the compression performance of paper bowls, compliant with GB/T 27591 standards.

HD-A513-C Paper Bowl Compression Test Machine with Digital Display 0
Key Features
  • Double-column ball screw drive ensures high-precision and stable operation
  • Force value accuracy better than 1.0 level for precise test data
  • Embedded USB interface or network port for convenient data transmission
  • Adjustable test speed to accommodate various testing requirements

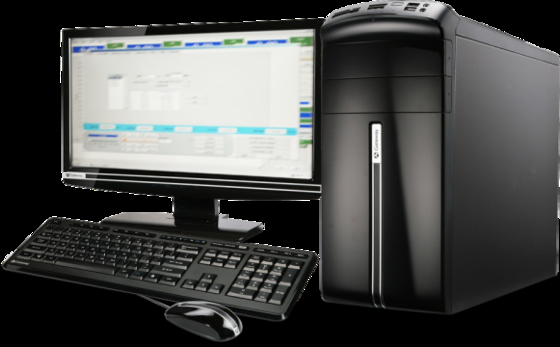

  • Microcomputer control with TM 2101 software
  • Digital LCD display with multiple unit options (Kgf, Ibf, N, KN, T)
  • Thermal printing for report output
Technical Specifications
Capacity 500kg, imported load cell
Load Resolution 1/250,000
Load Precision Within ± 0.5%
Motor 400W Panasonic servo motor
Test Speed 12.5±2.5 mm/min (0.1-500mm/min adjustable)
Max. Stroke 600mm (excluding fixture)
Dimensions 790 x 610 x 1100mm (L*W*H)
Weight Approx. 170 kg
Power 1∮, 220V, 500W
General Specifications

Packaging Dimensions: 1240 x 840 x 1320mm (WxDxH)

Power Supply: Single-phase, 220V±10%, 50/60Hz (customizable)

Gross Weight: 180kg

Test Environment: Temperature: 23±2℃, Humidity: 20%RH-70%RH

About Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.

HD-A513-C Paper Bowl Compression Test Machine with Digital Display 1 HD-A513-C Paper Bowl Compression Test Machine with Digital Display 2 HD-A513-C Paper Bowl Compression Test Machine with Digital Display 3
