제품 소개종이 포장 시험 기구

5052-HD Digital Ink Absorbency Tester for Paper Packaging

인증
중국 Hai Da Labtester 인증
중국 Hai Da Labtester 인증
고객 검토
그렇습니다 우리는 기계를 지난 주에 받았습니다. 이 기계는 좋, 판매 후 serives를, 이었습니다 아주 직업적 감사합니다.

—— 피터 Maas

회사 대신 당신의 공장과 회사를 방문하기 위해, 기술 직원은 매우 전문적이고 인내심을 가지고 있습니다, 나는 다시 당신과 협력하는 것을 기쁘게 생각합니다.

—— Steve Hubbard

제가 지금 온라인 채팅 해요

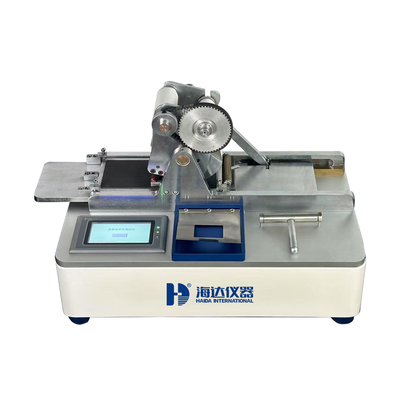

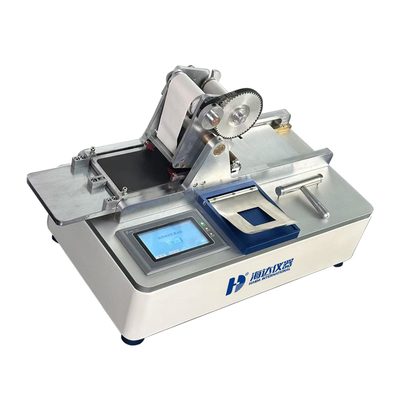

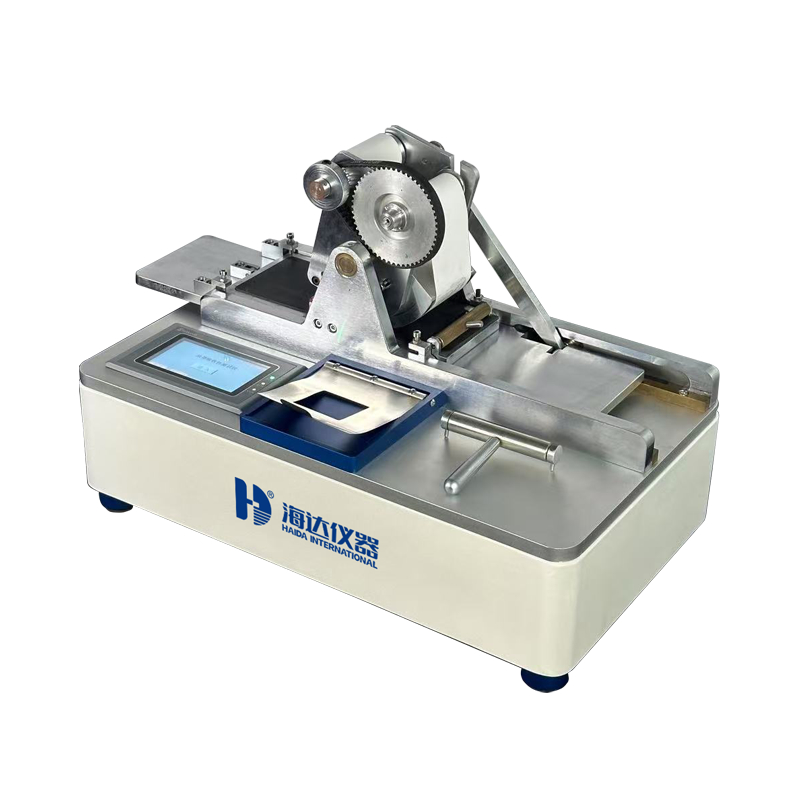

5052-HD Digital Ink Absorbency Tester for Paper Packaging

5052-HD Digital Ink Absorbency Tester for Paper Packaging
5052-HD Digital Ink Absorbency Tester for Paper Packaging 5052-HD Digital Ink Absorbency Tester for Paper Packaging 5052-HD Digital Ink Absorbency Tester for Paper Packaging

큰 이미지 :  5052-HD Digital Ink Absorbency Tester for Paper Packaging

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE、ISO
모델 번호: 5052-HD
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유 및 PP 필름으로 보호 된 다음 Operation Man과 강한 목재 케이스에 넣습니다.
배달 시간: 명령 뒤에 있는 20 일은 확인했습니다
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 한 달에 300 세트

5052-HD Digital Ink Absorbency Tester for Paper Packaging

설명
기능: 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 이름: 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기
표시하다: LCD, 디지털 디스플레이 장치 스위치: KGF, n. (선택 사항), LBF
디스플레이 모드: LCD 디스플레이, 디지털 모드 진동 모드: 레시프로케이팅
운동 드라이브: 볼 스크류 및 서보 모터 맞춤형 지원: OEM ODM
용법: 종이 테스트 기기 특징: 높은 정밀, 쉬운 작동, 안정적인 성능
제어 장치: plc (프로그램 가능한 로직 컨트롤러) 낙하 시험: 샘플의 모서리, 가장자리, 면
표시 방법: 디지털 디스플레이 시간 표시: 테스트 중 시간을 표시하려면( s )
미국 지역: 요리도구 설계 기준: EN71 ANSI, UL, ASTM ISTA
제어 시스템: PLC 프로그래밍 제어 기원: 중국
테스트 방법: 전자, 기계식, 매뉴얼 무게: 사용자 정의 가능
전송 모드: 공압 장치 + retone + 릴리스 스캔 모드: 하나의 선
사용: 패키징 재료
강조하다:

5052-HD Absorbency Tester

,

Paper Packaging Digital Ink Absorbency Tester

,

Packaging Ink Absorbency Tester

5052-HD Ink Absorbency Tester
Product Overview

The 5052-HD Ink Absorbency Tester measures the performance of paper or paperboard in absorbing standard ink within a specified time and area. This precision instrument is designed for quality control in paper manufacturing and related industries.

5052-HD Digital Ink Absorbency Tester for Paper Packaging 0
Key Features
  • High precision measurement of ink absorption
  • Easy operation with reliable performance
  • 4.3" color touch screen control interface
  • Programmable logic controller (PLC) system
  • Multiple test modes including compression, tensile, and burst tests
  • Customizable weight and configuration options
Technical Specifications
Parameter Specification
Wiping speed 15.5±1cm/min
Ink plate opening area 20±0.4cm²
Inked platen film thickness 0.1mm
Ink absorption time 120±5s
Power requirements 220V±10%, 50Hz; 90W
Operating environment (20±10)℃, humidity ≤85%
Dimensions (L×W×H) 535×308×280 mm
Net weight Approx. 33kg
Design Standards

Complies with QG/T12911-91 and GB/T456 standards, with additional compliance to EN71, ANSI, UL, ASTM, and ISTA criteria.

Applications

This instrument is widely used in paper goods, packaging materials, ink printing, and quality control laboratories across multiple industries including:

  • Paper manufacturing and processing
  • Packaging materials testing
  • Quality control laboratories
  • Research institutions
  • Academic research facilities
5052-HD Digital Ink Absorbency Tester for Paper Packaging 1
Haida Bottle Compression Test Machine
5052-HD Digital Ink Absorbency Tester for Paper Packaging 2
Haida Testing Equipment
5052-HD Digital Ink Absorbency Tester for Paper Packaging 3
Haida Laboratory Testing Machine
