Digital Bending Strength Tester 5000N Universal Tensile Machine

Digital Bending Strength Tester 5000N Universal Tensile Machine
Digital Bending Strength Tester 5000N Universal Tensile Machine Digital Bending Strength Tester 5000N Universal Tensile Machine Digital Bending Strength Tester 5000N Universal Tensile Machine Digital Bending Strength Tester 5000N Universal Tensile Machine Digital Bending Strength Tester 5000N Universal Tensile Machine Digital Bending Strength Tester 5000N Universal Tensile Machine Digital Bending Strength Tester 5000N Universal Tensile Machine Digital Bending Strength Tester 5000N Universal Tensile Machine Digital Bending Strength Tester 5000N Universal Tensile Machine

큰 이미지 :  Digital Bending Strength Tester 5000N Universal Tensile Machine

제품 상세 정보:
Place of Origin: Guangdong, China (Mainland)
브랜드 이름: Haida
인증: ISO,CE
Model Number: 60096-HD
결제 및 배송 조건:
Minimum Order Quantity: 1 Set
가격: 협상 가능
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 Sets per Month Haida

Digital Bending Strength Tester 5000N Universal Tensile Machine

설명
Test Range: 0-5000N Use: universal tensile testing machine 10kn
Motor: Adjustable-speed motor, ball screw rod Horizontal Test Space: ≤400mm
Control: Manual Estimated Gross Weight: 140kg
Sample Size: Standard Resolution: 1/100,000
Power Supply: 220V Test Speed: 0.1-500mm/min (adjustable )
Measure Range: 2%-100%F.S Test Method: Tensile
Type: Mechanical Screw: High Precise Ball Screw
Display Device: LCD or PC
강조하다:

Digital Bending Strength Tester

,

5000N Universal Tensile Machine

Digital Bending Strength Tester 5000N Universal Tensile Machine
Product Specifications
Attribute Value
Test Range 0-5000N
Use Universal tensile testing machine 10kN
Motor Adjustable-speed motor, ball screw rod
Horizontal Test Space ≤400mm
Control Manual
Estimated Gross Weight 140kg
Sample Size Standard
Resolution 1/100,000
Power Supply 220V
Test Speed 0.1-500mm/min (adjustable)
Measure Range 2%-100%F.S
Test Method Tensile
Type Mechanical
Screw High Precise Ball Screw
Display Device LCD or PC
Product Description

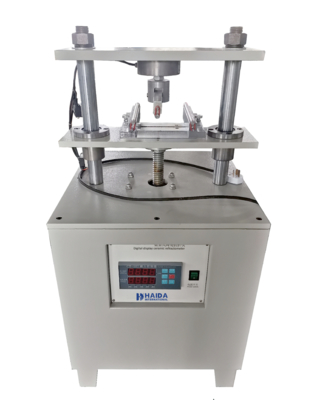

The 60096-HD Digital Bending Strength Testing Machine is designed for precision measurement of material strength under bending loads.

Digital Bending Strength Tester 5000N Universal Tensile Machine 0

This instrument complies with GB1965-1996, GB6569-2006, and GB/T3001-2007 standards, making it ideal for:

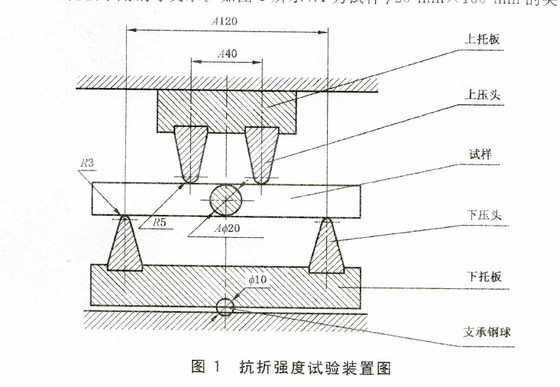

  • Determining three-point bending strength (flexural strength) of high-strength engineering ceramics
  • Testing mechanical parts and structural materials at room temperature
  • Measuring bending strength of non-metallic materials including glass, refractory materials, and thermal insulation materials

Key Features:

  • Multiple load capacity options: 10000N, 20000N, 50000N
  • Adjustable loading speed: 5~700N/S
  • Microcomputer data processing with 0.5% accuracy
  • Standard sample size: ≤120×100mm (custom sizes available)
  • Power supply: 220V 50Hz
Digital Bending Strength Tester 5000N Universal Tensile Machine 1
