Digital High Temperature MOR Machine for Refractory Testing

Digital High Temperature MOR Machine for Refractory Testing
Digital High Temperature MOR Machine for Refractory Testing Digital High Temperature MOR Machine for Refractory Testing Digital High Temperature MOR Machine for Refractory Testing Digital High Temperature MOR Machine for Refractory Testing Digital High Temperature MOR Machine for Refractory Testing Digital High Temperature MOR Machine for Refractory Testing

큰 이미지 :  Digital High Temperature MOR Machine for Refractory Testing

제품 상세 정보:
Place of Origin: Guangdong, China (Mainland)
브랜드 이름: Haida
인증: ISO,CE
Model Number: 60095-HD
결제 및 배송 조건:
Minimum Order Quantity: 1 Set
가격: 협상 가능
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 Sets per Month Haida

Digital High Temperature MOR Machine for Refractory Testing

설명
Display Device: PC All Weight: 2800kg
Available Tensile Stroke: 900mm Unit Switchover: G, KG, N, LB
Weight: 500 kg Test Speed: 0.1~300mm/min
Usage: Tension Material Tension Strength Tester Resolution: 1/100,000
Test Space Height: 500 mm Crosshead Travel: 1000 mm
Force Reading: kgf, Ibf, N, KN, T etc Load Capacity: 5-200kg
Crosshead Speed Accuracy: ±0.2% Grip: Tensile grip, Tear force grip
Dimensions: 1200 mm x 800 mm x 1800 mm
강조하다:

Refractory Testing MOR Machine

,

MOR Machine for refractory

60095-HD Digital High Temperature MOR Machine
Product Specifications
Attribute Value
Display Device PC
All Weight 2800kg
Available Tensile Stroke 900mm
Unit Switchover G, KG, N, LB
Weight 500 kg
Test Speed 0.1~300mm/min
Usage Tension Material Tension Strength Tester
Resolution 1/100,000
Test Space Height 500 mm
Crosshead Travel 1000 mm
Force Reading kgf, Ibf, N, KN, T etc
Load Capacity 5-200kg
Crosshead Speed Accuracy ±0.2%
Grip Tensile grip, Tear force grip
Dimensions 1200 mm x 800 mm x 1800 mm
Product Description

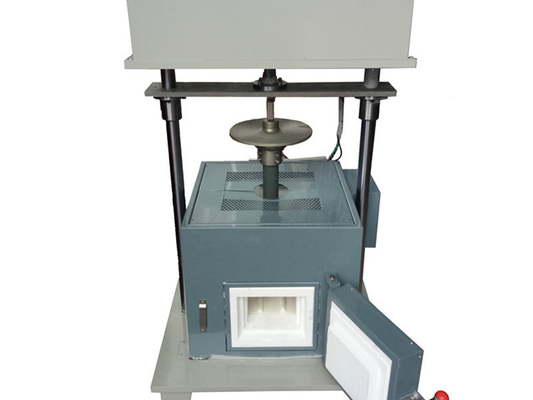

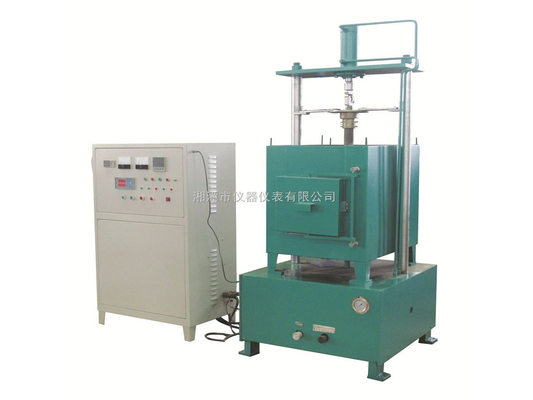

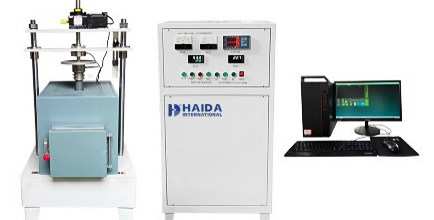

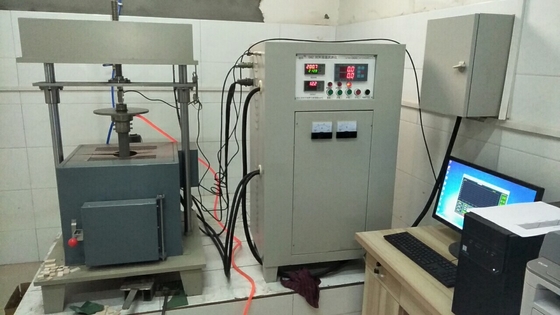

The 60095-HD Digital High Temperature MOR Machine complies with GB3002-2017, GB/T13243-1991, YB/T 5201-93, JB/T 2980.2-1999, and HB/T 5352.1-2004 standards. This precision instrument tests high temperature flexural strength of refractory products, carbon-containing refractory materials, dense refractory castables, ceramic rollers, silicate products, and casting shell materials. Featuring computer connectivity for automated testing and data processing, it offers stable force application, easy maintenance, and reliable results.
  • Maximum temperature options: 1400℃ or 1600℃
  • Maximum load options: 1000N, 10000N, or 20000N
  • Sample size compatibility with multiple industry standards
  • Precise temperature control: ±1℃ accuracy
  • Computer integration for automated control, data processing, and report generation
  • Power options: 380V, 8KW or 12KW
  • Heating elements: Silicon carbon rod (1400℃) or silicon molybdenum rod (1600℃)
  • Automatic sample feeding mechanism for continuous testing of 4-6 samples per heating cycle
