Paper Cup Tube Compressive Strength Tester with Digital Display

Paper Cup Tube Compressive Strength Tester with Digital Display
Paper Cup Tube Compressive Strength Tester with Digital Display Paper Cup Tube Compressive Strength Tester with Digital Display

큰 이미지 :  Paper Cup Tube Compressive Strength Tester with Digital Display

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE、ISO
모델 번호: 5099-HD
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유와 PP 필름으로 보호된 다음 작업 담당자와 함께 강한 나무 케이스에 넣습니다.
배달 시간: 명령 뒤에 있는 20 일은 확인했습니다
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 달 당 300개 세트

Paper Cup Tube Compressive Strength Tester with Digital Display

설명
기능: 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 이름: 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기
표시하다: LCD, 디지털 디스플레이 장치 스위치: KGF, n. (선택 사항), LBF
디스플레이 모드: LCD 디스플레이, 디지털 모드 진동 모드: 레시프로케이팅
운동 드라이브: 볼 스크류 및 서보 모터 맞춤형 지원: OEM ODM
용법: 종이 테스트 기기 특징: 높은 정밀, 쉬운 작동, 안정적인 성능
제어 장치: PLC(프로그래밍 가능 논리 컨트롤러) 낙하 시험: 샘플의 모서리, 가장자리, 면
표시 방법: 디지털 디스플레이 시간 표시: 테스트 중 시간을 표시하려면( s )
미국 지역: 요리도구 디자인 기준: EN71 ANSI, UL, ASTM ISTA
제어 시스템: PLC 프로그래밍 제어 기원: 중국
검사 방법: 전자, 기계식, 매뉴얼 무게: 사용자 정의 가능
전송 방식: 공압 장치 + retone + 릴리스 스캔 모드: 하나의 선
사용: 패키징 재료
강조하다:

Tube Compressive Strength Tester

,

Digital Display Compressive Strength Tester

,

Paper Cup Tube Compressive Strength Tester

5099-HD Oxygen Transmission Rate Tester

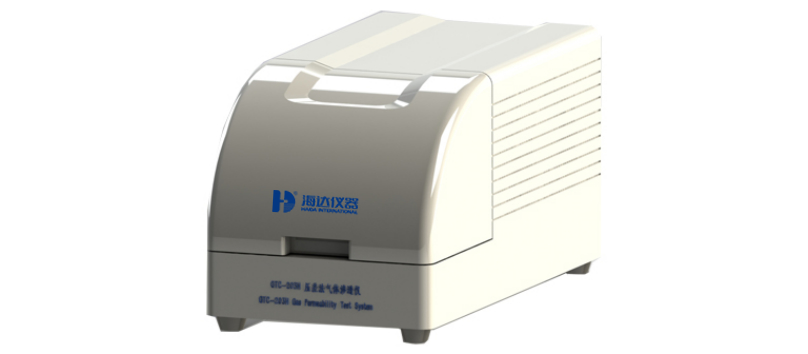

Product Overview
This advanced oxygen transmission rate tester utilizes coulometric oxygen analysis sensors and isobaric test principles to provide high-efficiency oxygen permeability testing for materials with varying gas barrier properties. The system offers precise temperature, humidity, and flow rate control with exceptional test sensitivity and repeatability.
Key Attributes
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display with unit switching (Kgf, N, Lbf)
Control System PLC (Programmable Logic Controller)
Movement Drive Ball screw and servo motor
Vibration Mode Reciprocating
Design Standards EN71, ANSI, UL, ASTM, ISTA
Test Methods Electronic, mechanical, manual
Transmission Mode Pneumatic device + reducer + release
Technical Features
  • Three independent test chambers for simultaneous testing of different samples
  • Imported high-precision sensors ensure exceptional test accuracy
  • Advanced water bath temperature control system with wide temperature range
  • Independent control of upper/lower chambers and sensors for result accuracy
  • Sealed pipeline system reduces system errors for more precise results
  • Anti-leakage sample structure design for stable sealing
  • Multiple test modes (manual, proportional, cyclic) for various scenarios
  • Expandable USB interfaces and network ports for data access
  • Self-detection capabilities ensure continuous operational status
  • Power-off automatic save function prevents data loss
Technical Specifications
Measuring Range Film: 0.01-200cm³/m²*24h (conventional)
Container: 0.00025-1 cm³/pkg*24h (optional)
Resolution 0.001 cm³/m²•24h
Temperature Control 5°C to 85°C (±0.1°C accuracy)
Humidity Control 0% RH, 5%-90%RH, 100%RH (±1%RH accuracy)
Sample Capacity 1-3 pieces (independent data)
Transmission Area 50 cm²
Max Sample Thickness ≤3mm
Carrier Gas 99.999% high purity nitrogen (user-provided)
Dimensions 740mm (L) × 415mm (W) × 430mm (H)
Weight 50Kg
Power Supply AC 220V 50Hz
Compliance Standards
GB/T 19789, ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1927, JIS K7126-2, YBB 00082003
Applications
Ideal for oxygen permeability testing of films, sheets, paper, and packaging materials in food, pharmaceuticals, medical devices, cosmetics, photovoltaic electronics, and related industries.
Product Images
Paper Cup Tube Compressive Strength Tester with Digital Display 0 Paper Cup Tube Compressive Strength Tester with Digital Display 1 Paper Cup Tube Compressive Strength Tester with Digital Display 2
About Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
