제품 소개종이 포장 시험 기구

Infrared Water Vapor Permeability Tester for Packaging Materials

인증
중국 Hai Da Labtester 인증
중국 Hai Da Labtester 인증
고객 검토
그렇습니다 우리는 기계를 지난 주에 받았습니다. 이 기계는 좋, 판매 후 serives를, 이었습니다 아주 직업적 감사합니다.

—— 피터 Maas

회사 대신 당신의 공장과 회사를 방문하기 위해, 기술 직원은 매우 전문적이고 인내심을 가지고 있습니다, 나는 다시 당신과 협력하는 것을 기쁘게 생각합니다.

—— Steve Hubbard

제가 지금 온라인 채팅 해요

Infrared Water Vapor Permeability Tester for Packaging Materials

Infrared Water Vapor Permeability Tester for Packaging Materials
Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials

큰 이미지 :  Infrared Water Vapor Permeability Tester for Packaging Materials

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE、ISO
모델 번호: 5098-HD
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유와 PP 필름으로 보호된 다음 작업 담당자와 함께 강한 나무 케이스에 넣습니다.
배달 시간: 명령 뒤에 있는 20 일은 확인했습니다
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 달 당 300개 세트

Infrared Water Vapor Permeability Tester for Packaging Materials

설명
기능: 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 이름: 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기
표시하다: LCD, 디지털 디스플레이 장치 스위치: KGF, n. (선택 사항), LBF
디스플레이 모드: LCD 디스플레이, 디지털 모드 진동 모드: 레시프로케이팅
운동 드라이브: 볼 스크류 및 서보 모터 맞춤형 지원: OEM ODM
용법: 종이 테스트 기기 특징: 높은 정밀, 쉬운 작동, 안정적인 성능
제어 장치: PLC(프로그래밍 가능 논리 컨트롤러) 낙하 시험: 샘플의 모서리, 가장자리, 면
표시 방법: 디지털 디스플레이 시간 표시: 테스트 중 시간을 표시하려면( s )
미국 지역: 요리도구 디자인 기준: EN71 ANSI, UL, ASTM ISTA
제어 시스템: PLC 프로그래밍 제어 기원: 중국
검사 방법: 전자, 기계식, 매뉴얼 무게: 사용자 정의 가능
전송 방식: 공압 장치 + retone + 릴리스 스캔 모드: 하나의 선
사용: 패키징 재료
강조하다:

Infrared Permeability Tester

,

Packaging Materials Vapor Permeability Tester

,

Packaging Materials Permeability Tester

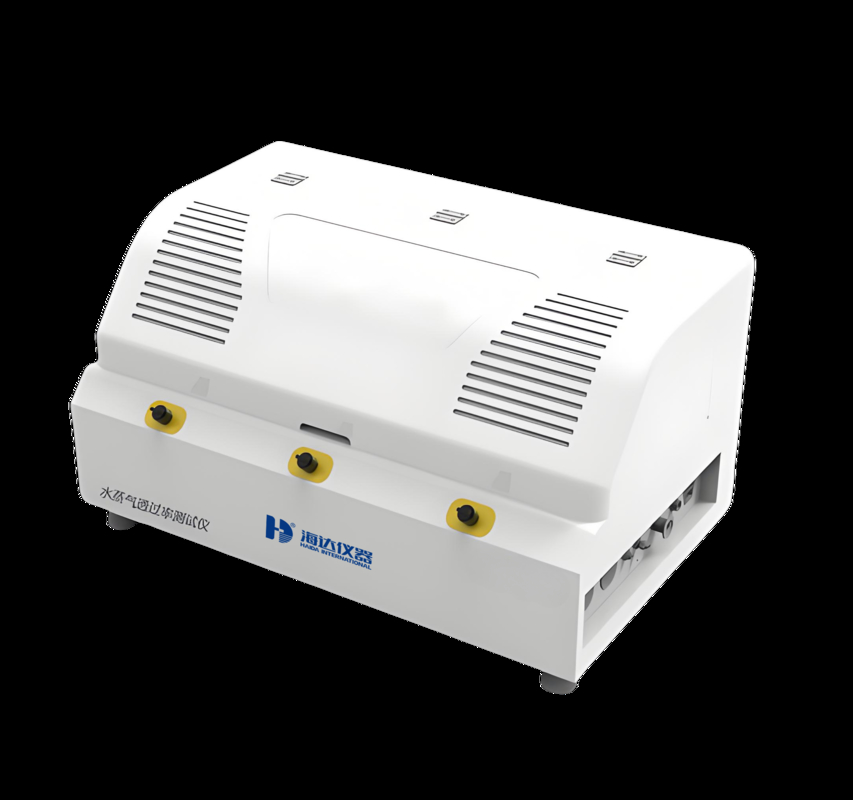

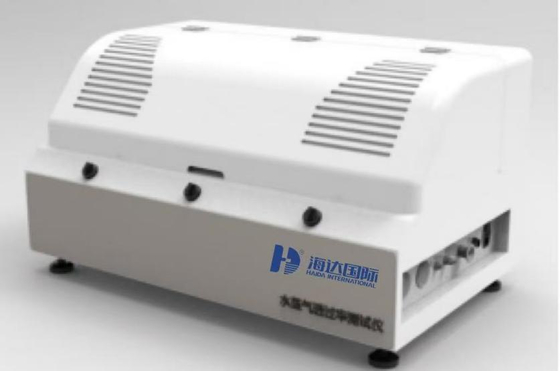

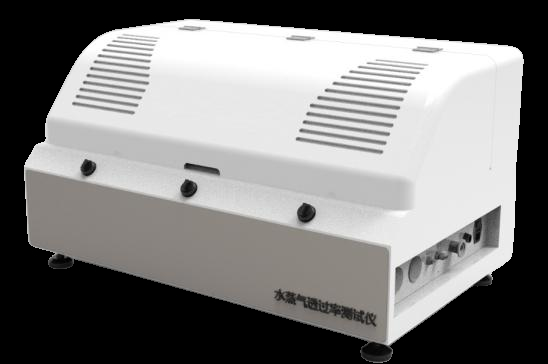

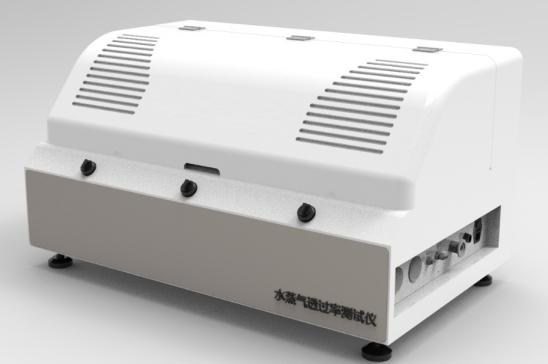

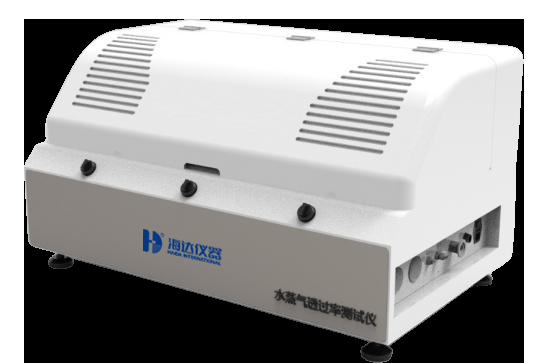

EQUIPMENT DETAILS 5098-HD WATER VAPOR PERMEABILITY TESTER (INFRARED METHOD)
Product Specifications
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display
Units switch Kgf, N. (Optional), Lbf
Control System PLC Programmed Control
Test Methods Electronic, mechanical, manual
Design Criteria EN71 ANSI, UL, ASTM ISTA
Features High precision, easy operation, reliable performance
Product Description
This infrared moisture analysis-based tester provides wide-range, high-efficiency water vapor transmission rate testing for medium and high water vapor barrier materials. It is suitable for testing plastic films, composite films, high barrier materials, backboards, sheets, paper, metal foils, and various packaging materials across industries including food, medicine, medical equipment, daily chemicals, and photovoltaic electronics.
Test Standards
GBT 26253, ISO 15106-2, ASTM F1249, TAPPI T557, JIS K7129, ISO 15106-3, DIN 53122-2, YBB 00092003
Key Features
  • Laser pulse modulated infrared sensor with long optical path absorption for higher measurement accuracy
  • Three independent test chambers for simultaneous testing of identical or different samples
  • Computer-controlled fully automated test process with one-button operation
  • High-quality components ensure instrument stability and reliability
  • Automatic test execution with parameter settings and result saving
  • Real-time test status monitoring with intelligent software for data analysis
  • Self-detection capabilities and power-off data storage protection
  • Precise automated temperature and humidity control for various test conditions
  • Multiple test process judgment modes (manual, proportional, cyclic)
  • Expandable test range for large transmittance testing requirements
Technical Specifications
Measuring range (membrane) 0.01~40 g/(m²*day) (standard)
0.1~1000 g/(m²*day) (optional)
Resolution 0.001 g/(m²*day)
Number of samples 1~3 pieces
Sample size φ110mm
Temperature control range 5℃~65℃ (constant temperature water bath)
Temperature control accuracy ±0.1℃
Humidity control range 0% RH, 5%~90%RH, 100%RH
Humidity control accuracy ±1%RH
Industry Applications
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They comply with UL, ASTM, JIS, GB, and ISO standards.
Infrared Water Vapor Permeability Tester for Packaging Materials 0
Infrared Water Vapor Permeability Tester for Packaging Materials 1
Infrared Water Vapor Permeability Tester for Packaging Materials 2
