제품 상세 정보:
|
| 기능: | 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 | 이름: | 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기 |
|---|---|---|---|
| 표시하다: | LCD, 디지털 디스플레이 | 장치 스위치: | KGF, n. (선택 사항), LBF |
| 강철 볼: | 16mm * 20 | 주파수 범위: | 60-300 라운드/분 조절 가능 |
| 드라이브 모드: | 동력 구동 | 총 체중: | 120KG |
| 색상: | 선택 과목 | 클램핑 속도: | 50-300mm / 분 |
| 소프트웨어: | TM 2101 | 차원: | 530 (l)* 490 (d)* 960 (h) mm |
| 테스트 속도: | 12.7mm/분 | 마찰 속도: | 85 |
| 힘 해상도: | 최대 테스트 력 Fs의 1/500000 | 힘: | AC 220V, 2.6A |
| 사용: | 패키징 재료 | 합판 크기: | H48in * D48in |
| 포트: | 400 ~ 1500 mm | ||
| 강조하다: | Paper Packaging Impact Tester,Digital Pendulum Impact Tester,Precision Digital Pendulum Impact Tester |
||

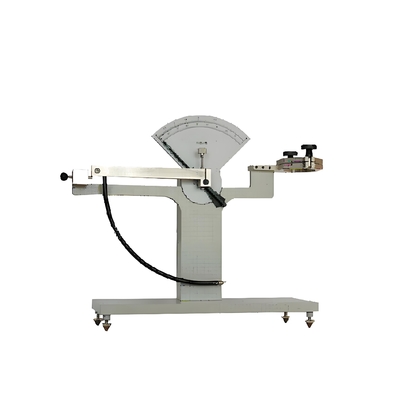

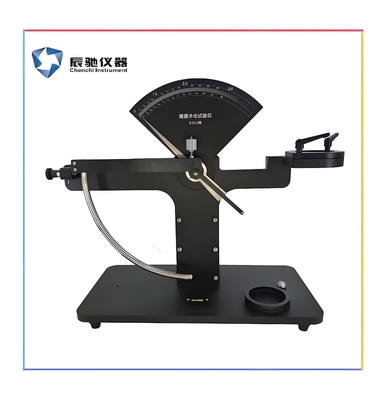

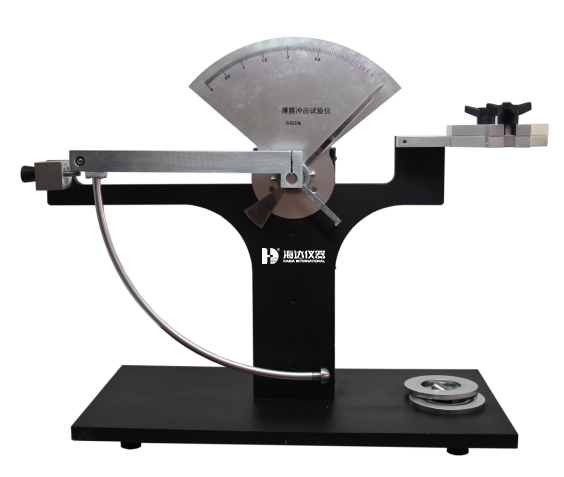

The 5086-HD Film Pendulum Impact Tester measures the pendulum impact resistance of plastic films, sheets, and composite films using a standard pendulum head and weighted pendulum arm. Ideal for testing impact toughness of various packaging materials including food and medicine packaging films, metal foils, and paper composites.
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Steel Ball | 16mm * 20 |
| Frequency Range | 60-300 round/min adjustable |
| Drive Mode | Power-driven |
| Gross Weight | 120kg |
| Clamping Speed | 50-300mm/min |
| Test Speed | 12.7mm/min |
| Force Resolution | 1/500000 of the maximum test force fs |
| Power | AC 220V，2.6A |
| Dimensions | 530(L)*490(D)*960(H)mm |
| Parameter | Specification |
|---|---|
| Capacity | 3J |
| Scale value | 0.01J |
| Pendulum swing radius | R280 mm |
| Pendulum angle | 90° |
| Impact speed | 2.5m/S |
| Impact head size | Φ12.7 mm |
| Sample holder diameter | Φ60, Φ89mm |
| Sample size | 100 X 100 mm |
Complies with GB/T8809 and ASTM D3420 testing standards.
Ideal for testing impact resistance of various materials including PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber films, metal foil materials, and paper/paperboard composites used in packaging applications.
The instrument uses a semi-spherical punch to impact and break the sample at a controlled speed, measuring the energy consumed during impact to evaluate the material's anti-pendulum impact energy value.
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
