Precise Bottle Compression Test Machine 200 Mm/min

Precise Bottle Compression Test Machine 200 Mm/min
Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min

큰 이미지 :  Precise Bottle Compression Test Machine 200 Mm/min

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE、ISO
모델 번호: 5077-HD
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유와 PP 필름으로 보호된 다음 작업 담당자와 함께 강한 나무 케이스에 넣습니다.
배달 시간: 명령 뒤에 있는 20 일은 확인했습니다
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 달 당 300개 세트

Precise Bottle Compression Test Machine 200 Mm/min

설명
기능: 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 이름: 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기
표시하다: LCD, 디지털 디스플레이 장치 스위치: KGF, n. (선택 사항), LBF
Testing speed: 10 ~ 200 mm/min 차원: 360*264*400mm, 70*34*60 cm, 85*65*80cm
측정 범위: 250-5600 KPA, 10 ~ 1000mn 디스플레이 모드: LCD 디스플레이, 디지털 모드
디자인 기준: ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87
강조하다:

Bottle Compression Test Machine

,

Precise Bottle Compression Test Machine

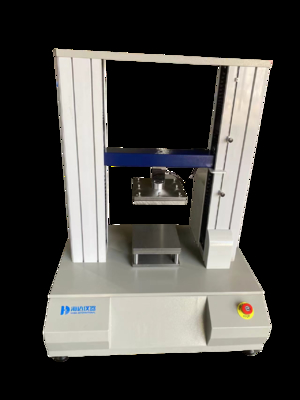

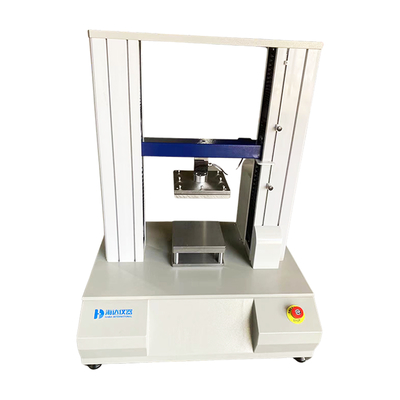

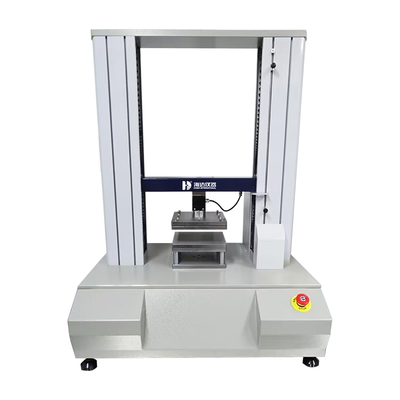

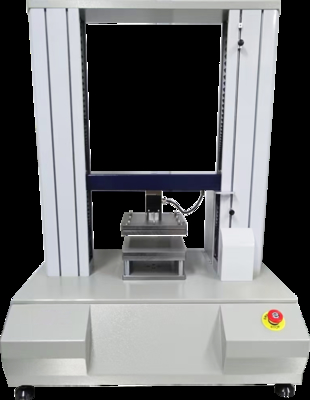

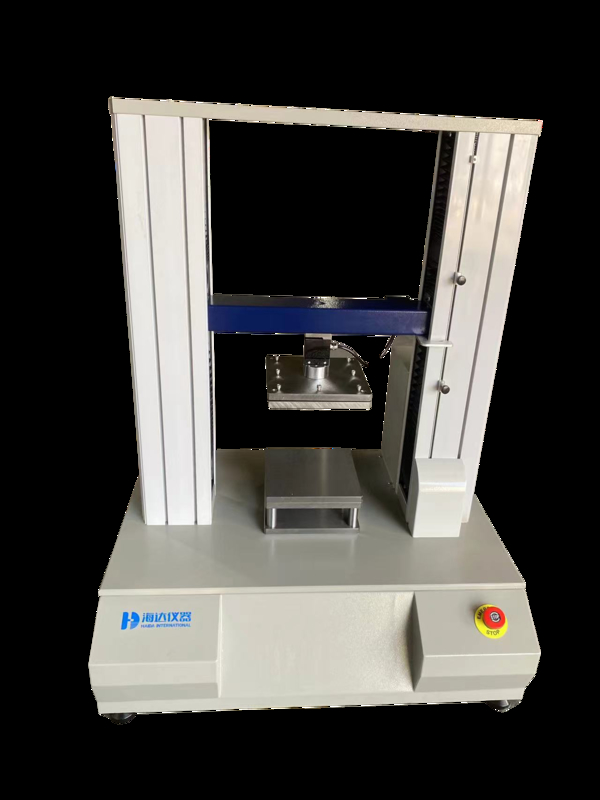

EQUIPMENT DETAILS OF 5077-HD BOTTLE COMPRESSION TEST MACHINE
PRODUCT DESCRIPTION

This instrument is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.

It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.

TEST STANDARD

ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1240 x 840x1320m

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 180kg

MAIN FEATURES
  • Double-column ball screw drive to ensure the high-precision and stable operation of the instrument;
  • The force value test system provides force value accuracy better than 1.0 level, and the test data is accurate;
  • The system is embedded with a USB interface or network port, which is convenient for data transmission and external access of the system.
  • Test speed can be adjusted in the software to adapt different test requirements from customers.
TECHNICAL PARAMETERS
Item Description
Capacity 500kg, imported load cell
Load resolution 1/250,000
Load Precision Within ± 0.5%
Motor 400W Panasonic servo motor
Operation Mode Controlled by PC with software, Windows 10 operation
Test Speed 0.1-500mm/min adjustable
Max. Stroke 600mm (excluding fixture)
Test unit gf/kgf/N/kN/lbf/T
Dimensions (L*W*H)790 x 610 x 1100mm
Weight Approx. 170 kg
Power 1∮, 220V, 500W
The Introduction of Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
