| 유형: | 저장 워터 탱크 | 정확도 등급: | 표준 정확성 |
|---|---|---|---|
| 힘: | 단상, 220V 50Hz | 테스트 표준: | IEC 60529 - IPX7 |
| 용량: | 6885L | 외부 재료: | 스프레이 페인트 종류 |
| 염수분무 정착지: | 1.0-2.0ml/80cm.hr | 치수: | 600mm x 400mm x 300mm |
| 전압 정확도: | ±3%(CNAS-CL01-A021:2018 참조) | 팬: | 원심 팬 |
| 안정: | ± 2% | 온도 센서: | 고정밀 PT100 백금 저항 |
| 보증: | 1년 | 전력 공급 소스: | 삼상, 380V±10%, 50/60Hz |
| 프레임 용량: | 2000kg | 제어 시스템: | PLC + 터치스크린 |
| 강조하다: | stacker crane for PV modules,HD stacker crane equipment,PV module testing stacker crane |
||

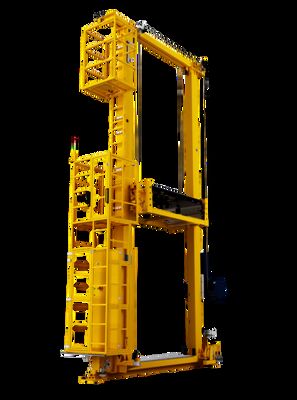

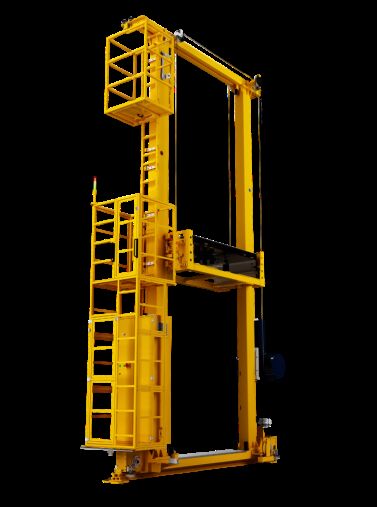

The stacker crane is the most important lifting and transportation equipment in a stereoscopic warehouse and serves as a representative symbol of such facilities. Its main function is to move along warehouse aisles, storing goods from the aisle entrance into racking compartments, or retrieving goods from the racks and transporting them to the aisle entrance. Offering advantages such as saving floor space and labor, enabling fast and accurate operation, improving storage and retrieval efficiency, and reducing storage and transportation costs, it can be applied in many different scenarios, such as raw material warehouses, finished product warehouses, manufacturing line-side warehouses, and industries including home appliances, food, and pharmaceuticals.
| Performance Indicators | Technical Parameters | Notes |
|---|---|---|
| Applicable Height | 2m-25m | Customizable upon request |
| Load | 0kg-5000kg | |
| Positioning Accuracy | X, Y, Z-axis positioning accuracy: ±3mm | |
| Speed |
Traveling: ≥ 180m/min Lift: ≥ 60m/min Fork extension: ≥ 40m/min |
|
| Acceleration |
Traveling: ≥ 0.8M/S² Lift: ≥ 0.6M/S² Fork extension: ≥ 0.4M/S² |
|
| Positioning Method | Laser distance measurement/Bar code positioning | Optional |
| Communication Method | Wireless/Infrared communication | |
| Camera | Pixel ≥ 5MP, supports snapshot capture and alarm signal input/output | |
| System Input Voltage | AC380V/50Hz (Customizable to European, American, Japanese, Korean, and other voltage standards) | Optional |
