제품 상세 정보:
|
| 로딩 주파수: | 설정할 수 있습니다 | 테스트 뇌졸중: | 1000mm |
|---|---|---|---|
| 영향 높이: | 152mm | 보증: | 1 년 |
| 등받이 하중: | 400N | 테스트 결과: | 내장 프린터로 출력 |
| 온도 해상도: | ± 0.1 ℃ | 카운터 범위: | 0-99999 번 |
| 난간 적재력: | 250n | 불꽃 높이: | 35mm |
| 유도 모드: | 정확성 부하전지 | 기계 시방서: | 6.8 m × 2.6 m × 2.4 m |
| 치수: | 3.5mx 2.4mx2.4m | 기압: | 4 ~ 7 바 |
| 위치 해상도: | 최소 0.2 mm |

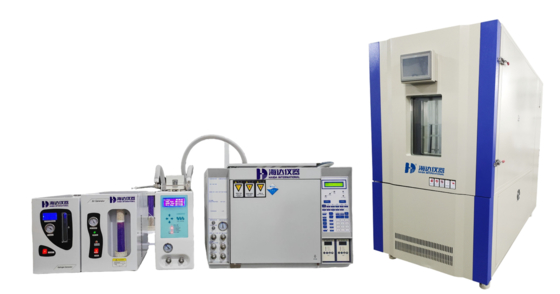

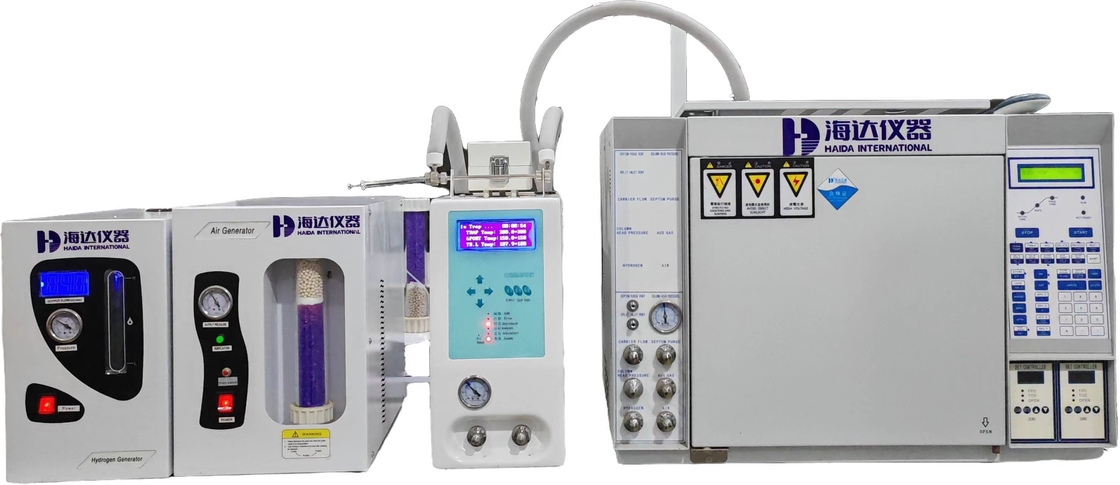

HD-F801-2 Gas Chromatography
A whole set: Automatic thermal desorption apparatus+ Gas Chromatography+Hydrogen generator +Air generator
Technical Parameters of Gas Chromatography
|
Furnace size |
28x 30 x18cm |
|
Temperature range |
|
|
Temperature setting |
1℃ |
|
programmed heating rate |
0.1℃ |
|
Maximum heating speed |
120℃/ min |
|
Temperature stability |
0.01℃when the ambient temperature changes by 1℃ |
|
Programmed temperature rise |
7-step programmed temperature rise |
|
Loss compensation of operable column |
dual channel |
|
Power supply |
220V±10%,2500W (maximum) |
|
Volume |
57x 55 x48 cm |
|
Weight |
around 50kg |
Technical Parameters of Detector:
|
Hydrogen flame ionization detector (FID) |
|
|
Maximum operating temperature |
400℃ |
|
Detection limit |
≤5 x 10-12g / S |
|
Drift |
≤5 x 10-13a / 30min |
|
Noise |
2 x 10-13a |
|
Dynamic linear range |
≥107 |
|
Thermal conductivity cell detector(TCD) |
|
|
Maximum operating temperature |
400℃ |
|
Sensitivity |
≥10000 mv.ml/mg[n-C16] |
|
Drift |
≤100uv / 30mi |
|
Noise |
≤20ua |
|
Dynamic linear range |
≥104 |
|
Electronic capture detector (ECD) |
|
|
Maximum operating temperature |
350℃ |
|
Detection limit |
≤6×10-15 g / ml (γ - 666) |
|
Drift |
≤50uv / 30min |
|
Noise |
≤20uv |
|
Dynamic linear range |
≥104 |
Technical Parameters of Automatic thermal desorption apparatus
|
Temperature control range of sample area |
5℃-400℃; Heat power:200W |
|
Temperature control range of valve injection system |
5℃-180℃; Heat power:60W |
|
Sample transfer line temperature control range |
5℃-200℃; Heat power:40W |
|
Temperature Control Accuracy |
< ±0.1℃ |
|
Temperature control gradient |
< ±0.1℃ |
|
Desorption recovery |
> 95% |
|
Analog sampling flow |
100ml/min |
|
Blowback cleaning flow |
0~200ml/min |
|
Machine Size and Weight( L x W x H) |
400x170x300mm,Around 12kg |
