제품 상세 정보:
|
| 인증: | CE, ISO | 제어 방법: | PLC 제어 시스템 |
|---|---|---|---|
| 테스트 속도: | 분 10 내지 30 번 / | 뇌졸중: | 762 밀리미터 (+ 50 밀리미터) |
| 원산지 국가: | 중국 | 최대 부하 용량: | 500kg |
| 표시하다: | LCD 터치 스크린 | 차원: | w*d*h (188*103*230cm) |
| 전원 공급 장치: | 220V/50Hz | 조정할 수 있는 드롭 높이: | 10 밀리미터 내지 180 밀리미터 |
| 기계 치수: | (W x D x H) 2950*1260*930 MM | 기계 크기: | 270*85*80cm |
| 무게 센서: | 200kg | 용법: | 의자의 내구성과 안전성 테스트 |
| 사용: | 의자 | ||
| 강조하다: | PLC Controlled Chair Caster Tester,High Durability Chair Caster Tester |
||

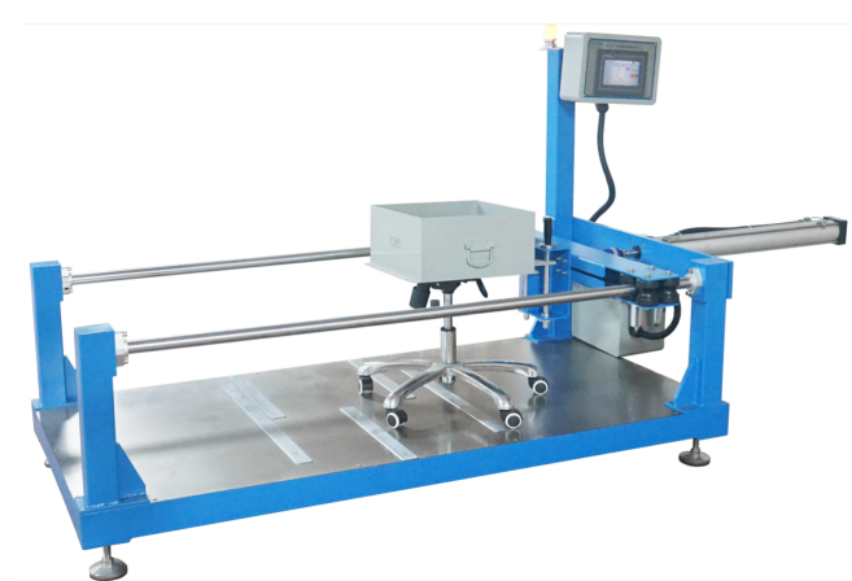

5128-HD Chair Caster Durability Tester
The machine is designed for evaluating the ability of chair base and casters to withstand fatigue stresses and wear caused by moving the chair back and forth.
Packaging Dimensions: (W*D*H) 2600*1130*1550mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 659kg
HS Code: 9024800000
| Load weight | 122KG(Contains chair construction components) | |
| Test speed | 10±2 times /min | |
| Test stroke | 800mm(Standard required : 762±50mm) | |
| Seat height can be measured | 260～400mm | |
| Display | Touch screen | |
| Control mode | PLC mode | |
| Sample size | Base diameter ≤780mm | |
| Testing cycles | 1-999,999(can be adjusted) | |
| Without obstacle:98000 cycles | With obstacle:2000 cycles | |
| Machine size | 2950mmx1050mmx1600mm(L*W*H) | |
| Power | AC /220V, 50HZ, 100W | |
| Air pressure | ≥6kg/cm² | |
| Items | Touch Screen | 1 piece |
| PLC | 1 piece | |
| cylinder | 1 piece, Diameter: 80mm; route:800mm | |
| Weight box | 1 piece(13kg) | |
| Obstacles | 1 set(5 pieces) | |
| Fixing clamps | 1 pieces |
| Test station | 1 station |
| Control method | Touch screen program control |
| Obstacle installation method | 3 types |
| Obstacle height | 6.4 mm; 12.7 mm; 20.0 mm customizable |
| Wheel diameter | 75-150MM |
| Speed | 1.0m/s ± 0.1 m/s |
| Power supply | 380V |
