제품 상세 정보:
|
| 재료: | 강철 | 선택적 기능: | 사용자 정의 가능한 하중 용량 및 치수 |
|---|---|---|---|
| 예어: | 가구 시험기 | 힘: | 전자 |
| 테스트 방법: | 동적 및 정적 부하 테스트 | 전원 공급 장치: | AC/DC |
| 사용: | 의자 | 유형: | 테스트 장비 |
| 장치 스위치: | 그프, 크그프, 엔, 라이브프, Ｗ, 나트, Ｔ | 운전 모드: | 가변 주파수 모터와 타이밍 벨트 |
| 전원: | 전기 | LCD 디스플레이: | 예 |
| 조절 가능한 팔걸이: | 예 | ||
| 강조하다: | 5123-HD Wheelchair Rain Test Machine,Steel Wheelchair Rain Test Machine |
||

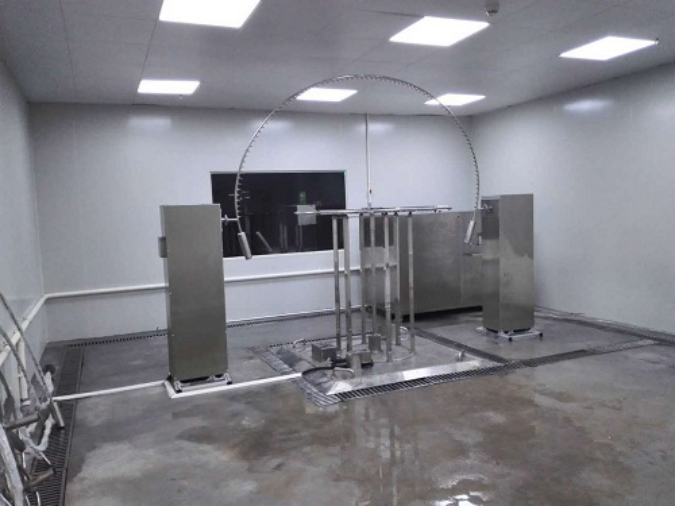

Image For Reference Only
Power supply source: Three-phase,380V±10%,50/60Hz (canbeappointed)
HS Code: 8424899909
| Item | Specification |
|---|---|
| Dimension of waterproof test room (W*D*H) | 5500*4500*4500mm (Waterproof test room provided by buyer) |
| Spray system | Consists of pumps, hydraulic pressure gauge, stationary nozzle stents |
| Oscillating tube | Radius 800mm |
| Oscillating angle | IPX3: spray ±60° from vertical line to each side, total 120° IPX4: spray ±180° from vertical line to each side, total 360° |
| Oscillating speed | IPX3: 2*120° for 4s IPX4: 2*360° for 12s |
| Spray nozzle | Diameter: 0.4mm, removable Ensure the water sprays in a line and without tolerance |
| Distance between two nozzles | 50mm |
| Turntable diameter | 1100mm |
| Turntable rotation speed | 1-3 cycles/min |
| Water flow of each nozzle | 0.07 L/min +5% |
| Test duration | 1~999h999min, adjustable |
| Pressure gauge | 80-150Kpa |
| Distance from nozzle to specimen surface | 200mm |
| Material | Oscillating tube / spray nozzle / sample turntable - Stainless steel |
| Chamber material | Stainless steel, with observation window |
| Safety protection device | Short circuit protection, grounding protection, water shortage protection, audible and visual alarm |
Water spray nozzle
PLC operation interface
