제품 상세 정보:
|
이름: | 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기 | 역행정 속도: | 30mm/분 |
---|---|---|---|
테스트 력 정확도: | < 표시값의 ±1% | 낙하 시험: | 샘플의 모서리, 가장자리, 면 |
로드 범위: | 0 ~ 60g (0 ~ 100g 지정) | 데이터 저장: | 사용 가능 |
합판 크기: | H48in * d48in | 디스플레이 방법: | 디지털 높이 표시기 (선택 사항) |
작동 방법: | 마이크로 컴퓨터 제어 | 제어 장치: | plc (프로그램 가능한 로직 컨트롤러) |
드롭 높이 범위: | 400-1500mm | 전송 모드: | 공압 장치 + retone + 릴리스 |
사용: | Flexo 잉크 색상 교정 | 무게: | 50kg |
제어 방법: | PLC 제어 | 포트: | 심천 |
견본: | 15 × (150 ~ 200) mm | 조절 가능한 거리는: | 25,80,100mm |
용법: | 종이 포장 재료의 강도와 품질을 테스트하려면 | 소프트웨어: | TM 2101 |
광 세기 범위: | 0-5,00 MW/CM2 | 모터: | 파나소닉 서보 모터 |
정확성: | ± 0.5% | 힘을 사용하다: | 30 W (공기 펌프 전원 제외) |

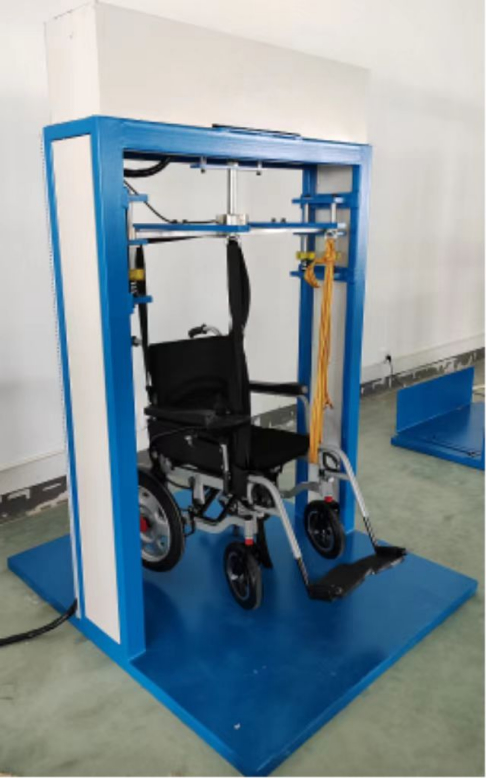

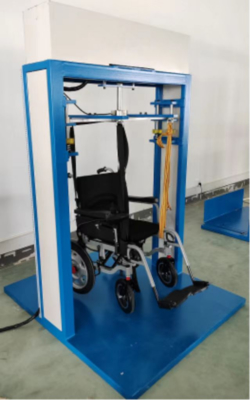

This machine is conducting repeated drop tests on wheelchairs; this machine uses a touch screen for fully automatic control and can set the number of drops. It automatically shuts off upon reaching the set number of drops. The testing speed can be adjusted through the regulating valves at both ends of the cylinder.
ISO 7176-8-5.9; GB/T 18029
Drop height | 50mm ± 5mm |
cylinder stroke | 0-100MM adjustable |
Drop platform size | 1200mm*1400mm |
Drop method | pneumatic + electromagnet |
Drop counter | 1-999,999 can be set |
Max Load | 200KG |
Power Supply | 220V,50HZ |
