제품 상세 정보:
|
이름: | 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기 | 표시하다: | LCD, 디지털 디스플레이 |
---|---|---|---|
특징: | 작동하기 쉽습니다 | 작동 방법: | 오토매틱 |
제품 유형: | 테스트 기기 | 보호 장치: | 유도 유형 보호 장치 |
제어: | PLC 제어 | 힘: | 전자, 220V/50Hz, AC220V, 접지, 전원 공급 장치는 신뢰할 수 있어야합니다 |
용법: | 종이 테스트 기기, 유니버설 테스트 기계, 종이/플라스틱 재료 인장 강도 테스트 기기, 강도 테스트 기계, 종이 코어 크러쉬 테스트 기기 | 제품 이름: | 랩 페이퍼 공기 투과성 테스트 기기, 패키지 드롭 충격 신뢰성 테스터 / 제로 높이 강하기 기기, 인장 강도 테스터, 종이 판지 피어스 강도 테스트 기기, 종이 내부 플리 본드 테 |
보증: | 12 개월, 1 년, 2 년, 1-2 년, 1 년 | 무게: | 70kg, 91kg, 약 145kg, 75kg, 64kg |
전원 공급 장치: | 6A, AC220V, 220V 50Hz, 50-60Hz, 1 직경 | 애플리케이션: | 등, 튜브 압축 강도 테스터, 플레이트, 고무, 막대 |
해결: | 1/000,1 / 50000,0.1n, 000,1Mn | 용량: | 200,500,1000kg, 20,10T 사용자 정의 |
정확성: | ± 0.5%, ± 1%, ± 0.5% | 기능: | 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 |
장치 스위치: | KGF, n. (선택 사항), LBF | 테스트 속도: | 10 ~ 200 mm/분 |
차원: | 360*264*400mm, 70*34*60 cm, 85*65*80cm | 측정 범위: | 250-5600 KPA, 10 ~ 1000mn |
디스플레이 모드: | LCD 디스플레이, 디지털 모드 | 설계 기준: | ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87 |

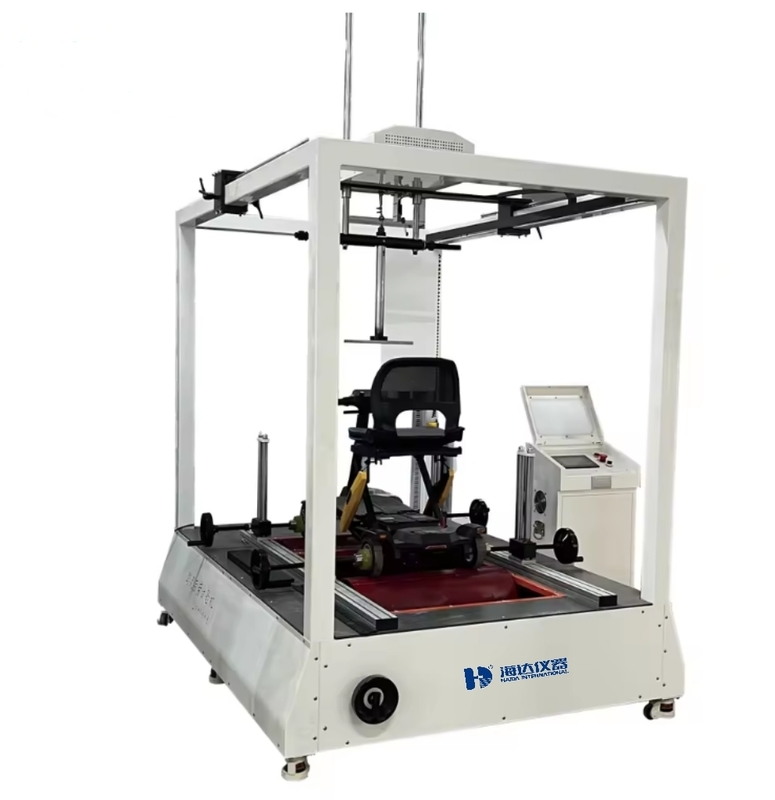

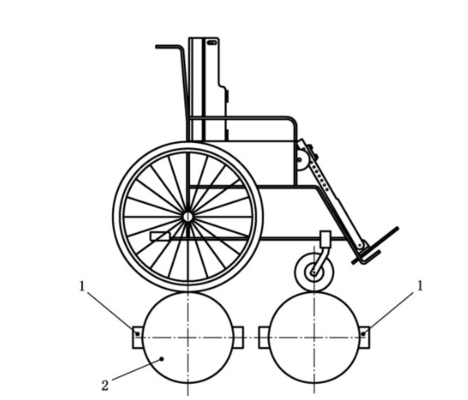

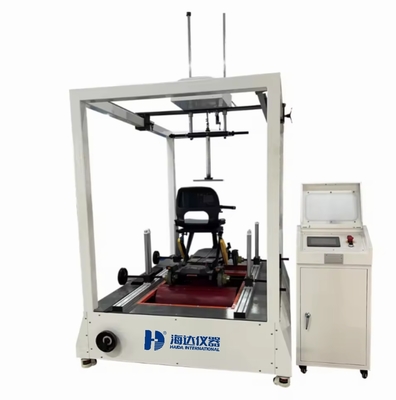

This machine performs road condition fatigue tests on wheelchairs, visually inspecting the extent of damage to the wheelchair. It is suitable for manual wheelchairs operated by the user or caregiver, as well as indoor and outdoor electric wheelchairs. Electric wheelchairs have three or more wheels mounted on two parallel drive axles, with no more than two driving wheels, and a speed not exceeding 5km/h. The machine is controlled by a PLC touch screen, allowing the setting of driving speed and distance. It can be set to distance mode or rotation mode, and will automatically shut off upon reaching the set distance.
ISO 7176-8-5.8;GB/T 1802
Maximum load capacity | ≥300kg |
Speed Range | 0-5KM/H Test speed: 1.0m/s (reference roller), 1.02—1.07m/s (driven roller) |
Test times | 0~999999 R can be set |
Obstacle height | 36±3 x 12±1 x 500mm(W×H×L), interchangeable |
Power supply | 380v, 50hz |
Roller quantity | 2-3 rollers customized |
Wheel diameter | ∮250±25mm. Width 900mm, surface knurling to increase the friction coefficient |
Wheel center distance adjustment range | 400~1000mm, adjusted by screw handwheel |
Dimensions | Approx.2200mmx1260mmx2700mm |
