제품 상세 정보:
|
| Force Resolution: | 1/500000 of the maximum test force fs | Vibration Mode: | reciprocating |
|---|---|---|---|
| Load Cell: | 1 Load Cell For Highest Accuracy | Controller: | PLC controller and touch screen panel |
| Standard: | ISO 287, TAPPI T810, GB/T 2679.6 | Control System: | PLC Programmed Control |
| Data Display: | Load, displacement, speed | Time Display: | To display time during test ( s ) |
| Transmit Approach: | Electric Transmission | Type: | HD-A544 |
| Drop Error: | ± 10 | Design Criteria: | ISO 2248, JIS Z0202-87, GB/T4857.5-92 |
| Impact Times: | 0~9,999 times | Voltage: | 110/220V AC, 250W |
| Test Speed: | 10 ±3mm/min (0.01~200mm/min Adjustable) | Max Drop Weight: | 150 Kg |
| Display: | five LED digital display; | Cutting Diameter: | 90.6±0.5mm |
| Precision: | < 0.5% | Counter: | LCD,0~999,999 |
| Producer: | guangdong China(mainland) | Operating Method: | Microcomputer Control |
| Adjustable Interval: | 25, 30, 50, 60, 80100150mm | Test Cycles Setting: | 4 digits pre-set counter |
| 강조하다: | 5020-HD Diaper Waist Measurer,PLC Control Diaper Waist Measurer,ISO Standards Diaper Waist Measurer |
||
| Attribute | Value |
|---|---|
| Force Resolution | 1/500000 of the maximum test force fs |
| Vibration Mode | Reciprocating |
| Load Cell | 1 Load Cell For Highest Accuracy |
| Controller | PLC controller and touch screen panel |
| Standard | ISO 287, TAPPI T810, GB/T 2679.6 |
| Control System | PLC Programmed Control |
| Data Display | Load, displacement, speed |
| Time Display | To display time during test (s) |
| Transmit Approach | Electric Transmission |
| Type | HD-A544 |
| Drop Error | ± 10 |
| Design Criteria | ISO 2248, JIS Z0202-87, GB/T4857.5-92 |
| Impact Times | 0~9,999 times |
| Voltage | 110/220V AC, 250W |
| Test Speed | 10 ±3mm/min (0.01~200mm/min Adjustable) |
| Max Drop Weight | 150 Kg |
| Display | Five LED digital display |
| Cutting Diameter | 90.6±0.5mm |
| Precision | < 0.5% |
| Counter | LCD,0~999,999 |
| Producer | Guangdong, China (mainland) |
| Operating Method | Microcomputer Control |
| Adjustable Interval | 25, 30, 50, 60, 80100150mm |
| Test Cycles Setting | 4 digits pre-set counter |

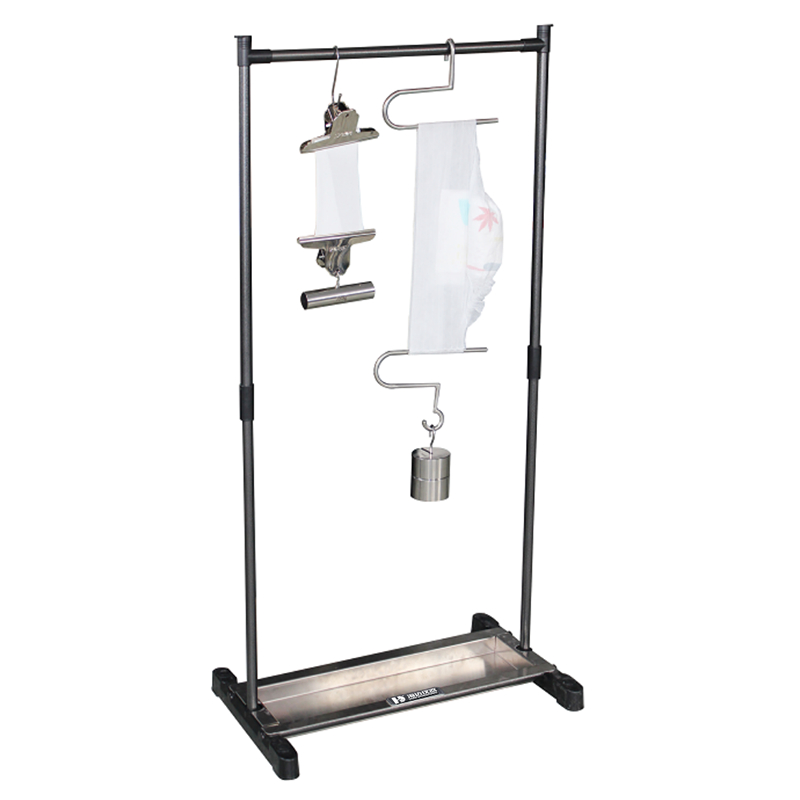

The 5020-HD Diaper Waist Measurer is a precision instrument designed for measuring the waist circumference of diapers according to industry standards.
GB/T 33280-2016 Diapers Specifications and Dimensions
GB/T39391-2020 Sanitary absorbent pants for women
| All stainless steel frame | 1 set |
| Waist sticker type diaper sample holder | 1 pair |
| Weight of waist-mounted diaper | 750g each (total mass with the lower sample clip) |
| Pants-type diaper sample hook | 1 pair |
| Two weights for pants-type diapers | 2500g (1000g+1500g) (Total mass with the lower sample hook) |
| Dimensions | 600mm x 500mm x 1400mm |
| Weight | 10kg |
