제품 상세 정보:
|

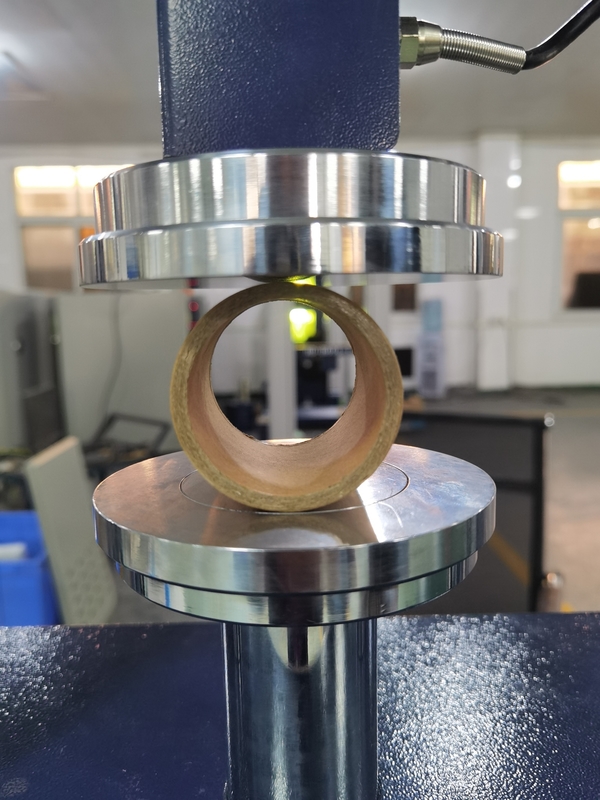

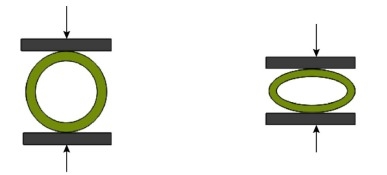

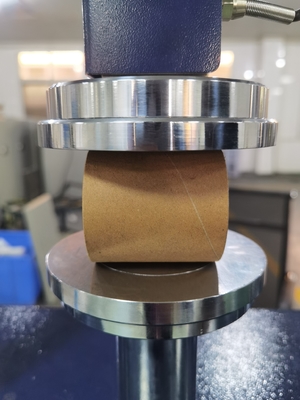

| Function: | compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument | Name: | paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument |
|---|---|---|---|
| Display: | LCD,Digital display | Feature: | easy to operate |
| Operation Method: | Automatic | Product Type: | Testing Instruments |
| Protection Device: | Induction type protection device | Control: | PLC control |
| Sensing Method: | Pressure Transmitter | Stop: | Stop test |
| Force Resolution: | 1/500000 of the maximum test force fs | Vibration Mode: | reciprocating |

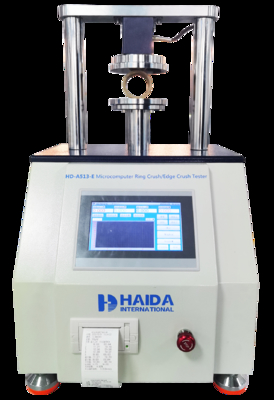

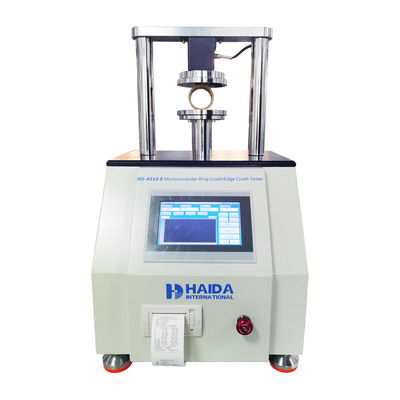

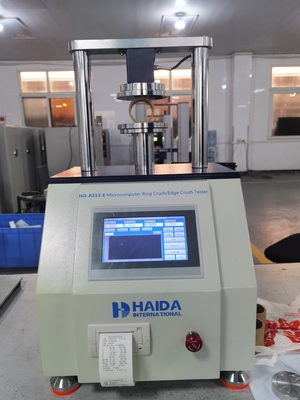

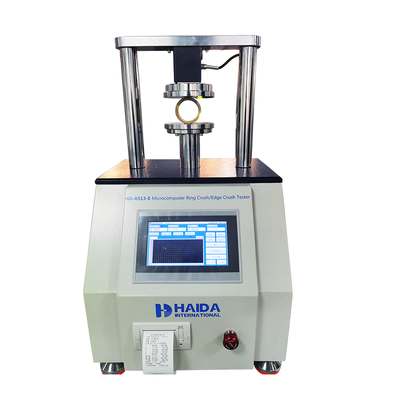

| 강조하다: | Crush Test Machine HD-A513-E,Crush Test Machine 5KN Capacity,Paper Tube Crush Test Machine |
||
| Maximum Capacity | 500kg (5KN) |
| Control Mode | Touch screen |
| Load Resolution | 1/250,000 |
| Units | Kgf, Ibf, N |
| Load Accuracy | Within ±0.5% |
| Maximum Resolution | 0.02N |
| Test Speed | (12±0.5) mm/min |
| Plate Stroke | 0.1~120mm |
| Plate Diameter | φ120mm |
| Platen Parallelism | ≤0.06mm |
| Packaging Dimensions | 700 × 650 × 920mm (W×D×H) |
| Machine Dimensions | 400 × 400 × 650mm (L×W×H) |
| Gross Weight | 110kg |
| Net Weight | 40kg |
| Power Requirements | 220V ±10%, 50/60Hz, 220W |
