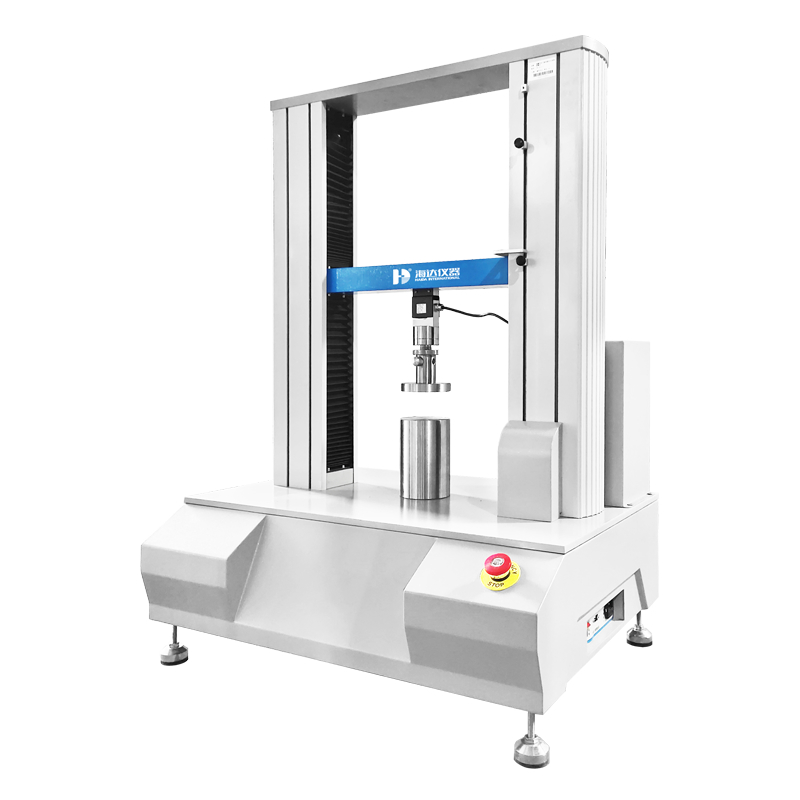

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity
HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

큰 이미지 :  HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

제품 상세 정보:
Place of Origin: China
브랜드 이름: Haida
인증: CE、ISO
Model Number: HD-A513-C
결제 및 배송 조건:
Minimum Order Quantity: 1 set
가격: 협상 가능
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

설명
기능: 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 이름: 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기
표시하다: LCD, 디지털 디스플레이 특징: 작동하기 쉽습니다
작동 방법: 오토매틱 제품 유형: 테스트 기기
보호 장치: 유도 유형 보호 장치 제어: PLC 제어
감지 방법: 압력 송신기 멈추다: 테스트 중지
힘 해결: 최대 테스트 력 Fs의 1/500000 진동 모드: 왕복
강조하다:

Paper Bowl Compression Test Machine

,

500kg Paper Bowl Compression Test Machine

HD-A513-C Paper Bowl Compression Test Machine
Product Overview

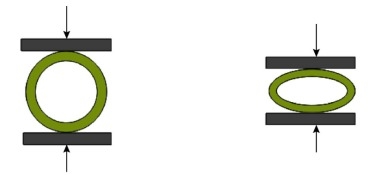

Specialized testing equipment for evaluating the flat compression performance of paper tubes and cores, compliant with GB/T 27591 standards.

Key Features
  • Double-column ball screw drive ensures high-precision and stable operation
  • Force value accuracy better than 1.0 level for precise test data
  • Embedded USB interface or network port for convenient data transmission
  • Adjustable test speed to accommodate various testing requirements
  • PLC control system with automatic operation
  • Pressure transmitter sensing method with 1/500,000 force resolution
Technical Specifications
Capacity 500kg, imported load cell
Load Resolution 1/250,000
Load Precision Within ±0.5%
Motor 400W Panasonic servo motor
Operation Mode PC controlled with software, Windows 10 operation
Test Plate ≥100x100mm
Test Speed 12.5±2.5 mm/min (0.1-500mm/min adjustable)
Max. Stroke 600mm (excluding fixture)
Test Units gf/kgf/N/kN/lbf/T
Dimensions 790 x 610 x 1100mm (LxWxH)
Weight Approx. 170 kg
Power 1∮, 220V, 500W
General Specifications
Packaging Dimensions 1240 x 840 x 1320mm (WxDxH)
Power Supply Single-phase, 220V±10%, 50/60Hz (customizable)
Gross Weight 180kg
Product Images

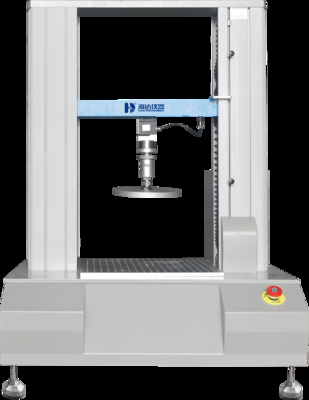

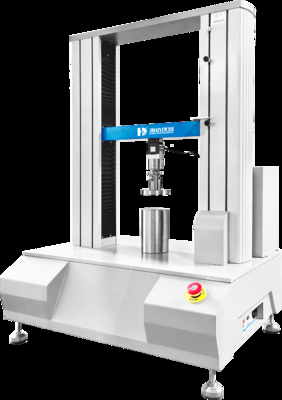

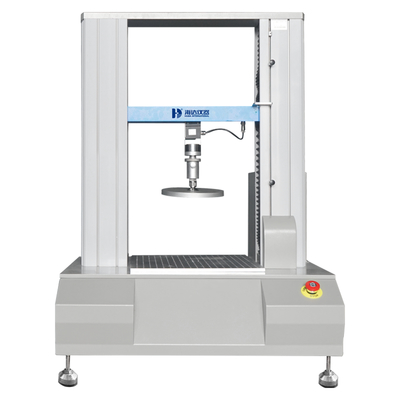

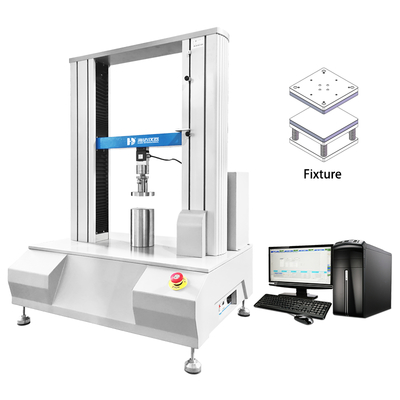

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 0 HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 1 HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 2
