제품 상세 정보:
|
| heat source: | Ceramic heater | touch screen: | LCD |
|---|---|---|---|
| Display: | LCD screen | Testing Time: | Adjustable |
| Customized: | Welcome | Test Cyclic: | 15000 cyclic (adjustable) |
| Factory: | Yes | Application: | Laboratory, Kitchen |
| Transportation: | By Sea | Tank Body Matiral: | PVC |
| Testing Methods: | Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc. | Testing Parameters: | Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc. |
| Fixture: | two fixtures suitable different cutlery | Testing Standards: | ASTM, ISO, EN, GB |
| Clamp Strength: | 130 + 2.5N | Test Stroke: | 20~66mm |
| Machine Size: | 1350mm*1050mm*2550mm | Coating Thickness: | 25μm |
| Leverage: | 1 m | Horizontal Test Floor: | angle is justable |
| Torque Rod Diameter: | 10±1mm | Color: | Silver |
| Dimensions: | 1100mm*532mm*389mm | Usage: | Testing cookware for durability and safety |
| Heating Method: | Electric heating | Power Supply: | AC 220V/50Hz |
| Power: | 1 phase, AC 220V, 50～60Hz | ||
| 강조하다: | Mixing Valve Cartridge Life Test Machine,Sanitary Tapware Cartridge Life Test Machine |
||
| Attribute | Value |
|---|---|
| Heat Source | Ceramic heater |
| Display | LCD touch screen |
| Testing Time | Adjustable |
| Test Cyclic | 15000 cyclic (adjustable) |
| Application | Laboratory, Kitchen |
| Testing Methods | Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc. |
| Testing Parameters | Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion |
| Testing Standards | ASTM, ISO, EN, GB |
| Machine Size | 1350mm × 1050mm × 2550mm |
| Power Supply | AC 220V/50Hz, 1 phase |
| Usage | Testing cookware for durability and safety |

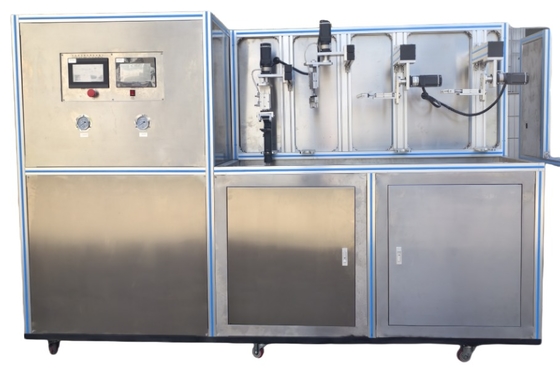

This machine is designed to meet the ASMEA112.18.1-2005/CSAB125.1-05/GB18145 and EN817 test conditions for hot and cold mixing spool life test.
| Test Sample | 2 Rising, 2 Side stations |
| Temperature Range | 5℃~90℃ can be set (hot and cold water inlet temperature can be selected individually) |
| Operating Hours | 99H59M59S can be set with pause button functionality |
| Test Speed | 0-30 times/min adjustable |
| Counting Function | 0-99999999 can be set |
| Control Mode | PLC software with 7" color touch screen operation |
| Material | SUS304 stainless steel construction |
Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida specializes in production and R&D of various material physical properties testing equipment. We maintain an independent research and development center with four dedicated production lines for textile, footwear, leather, and mask testing equipment.
A: We offer a one-year warranty including technical support and parts replacement. On-site engineer service is available when necessary.
A: Our process includes inquiry, quotation, requirements confirmation, payment, production, testing, shipping, and after-sales support.
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport transfers.
A: Yes, we provide both standard and customized machines tailored to your specific testing requirements.
