제품 상세 정보:
|
| 수온은 유지합니다: | 60±2C | 탱크 본체 재료: | 2~5 분당 사이클수 |
|---|---|---|---|
| 기계 크기: | 1350mm*1050mm*2550mm | 총 체중: | 210 킬로그램 |
| 발열원: | 세라믹히터 | 터치 스크린: | LCD |
| 치수: | 1100mm*532mm*389mm | 표시하다: | LCD 화면 |
| 시험 시간: | 조절할 수 있는 | probme에 대한 답장: | 24시간 이내에 |
| 테스트 파라메타: | 온도, 압력, 체중 등 | 검사 결과: | 정량 및 질적 데이터 |
| 검사 방법: | 충격, 마모, 화학 저항 등 | 스케일 표시: | 1 급 |
| 용법: | 내구성과 안전을위한 조리기구 테스트 | ||
| 강조하다: | Toilet Seat Impact Tester,Adjustable Time Toilet Seat Impact Tester,LCD Screen Toilet Seat Impact Tester |
||
| Attribute | Value |
|---|---|
| Water temperature maintain | 60±2℃ |
| Tank body material | 2～5 cycles per minute |
| Machine Size | 1350mm*1050mm*2550mm |
| Gross Weight | 210KG |
| Heat source | Ceramic heater |
| Touch screen | LCD |
| Dimensions | 1100mm*532mm*389mm |
| Display | LCD screen |
| Testing Time | Adjustable |
| Reply For Problem | Within 24 hours |
| Test Parameters | Temperature, pressure, weight, etc. |
| Test Results | Quantitative and qualitative data |
| Test Methods | Impact, abrasion, chemical resistance, etc. |
| Scale Display | 1 degree |
| Usage | Testing cookware for durability and safety |

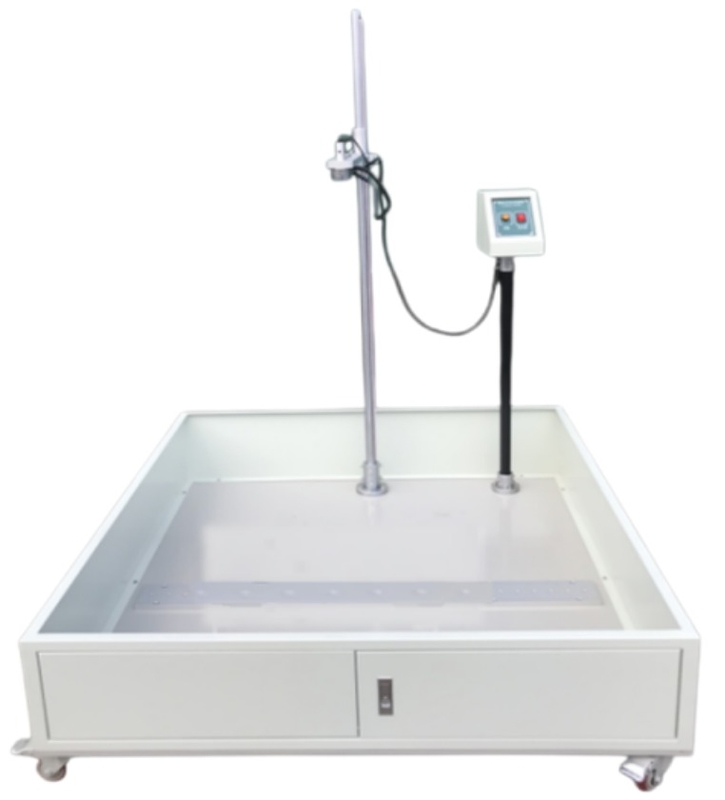

This machine is designed for measuring the impact resistance of electronics, electrical appliances, home appliances, plastics, communication devices, and other finished products or components during installation. It assesses product structural integrity by dropping a specified weight steel ball from a predetermined height onto test materials to observe damage levels.

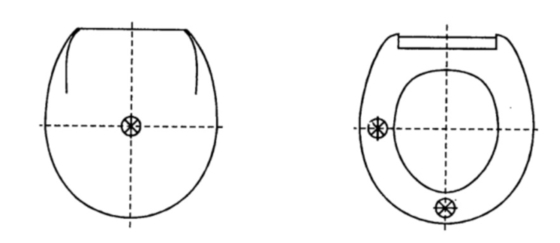

A 38mm diameter steel ball weighing 0.225kg is dropped freely from 455mm height onto the center of the test specimen. Impact positions are clearly indicated in the accompanying diagram.
JC/T 764-2008 5.4.7
| Feature | Specification |
|---|---|
| Impact height range | 0-1000mm (manually adjustable, steel ruler shows scale) |
| Specimen size | Toilet seat size |
| Drop height display | Graduated steel ruler indicates vertically |
| Drop height accuracy | 1mm |
| Drop bar shape | Square rod |
| Control and lifting method | Circuit-controlled electromagnet suction cup, manually lifting and lowering electromagnet fixing rod |
| Alignment device | Infrared positioning for fixed-point testing |
| Impact ball specification | 225g (φ38mm) |
| Control box | Protective mesh box around the bottom |
| Volume | Approx. 1000*1000*1050mm |
| Power Supply | AC220V 50Hz |
Established in 2004 and located in Dongguan, Guangdong Province, China, Haida International Equipment specializes in R&D and production of material physical properties testing equipment. With independent research centers and four production lines (textile, footwear, leather, and mask testing equipment), we've served international markets since 2006.
A: Our standard warranty is one year, including technical support and parts replacement. If necessary, our engineers can provide on-site service.
A: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport transfers.
A: Yes, we offer both standard and fully customized machines tailored to your specific requirements.
