제품 상세 정보:
|
| 기능: | 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 | 이름: | 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기 |
|---|---|---|---|
| 표시하다: | LCD, 디지털 디스플레이 | 장치 스위치: | KGF, n. (선택 사항), LBF |
| 디스플레이 모드: | LCD 디스플레이, 디지털 모드 | 진동 모드: | 레시프로케이팅 |
| 운동 드라이브: | 볼 스크류 및 서보 모터 | 진폭 범위: | 25.4 mm pp (1 인치) |
| 맞춤형 지원: | OEM ODM | 용법: | 종이 테스트 기기 |
| 테스트 범위: | 0-2000 KPA | 특징: | 높은 정밀, 쉬운 작동, 안정적인 성능 |
| 용량: | 2000kg | 주파수 범위: | 60-300 라운드/분 조절 가능 |
| 제어 장치: | PLC(프로그래밍 가능 논리 컨트롤러) | 낙하 시험: | 샘플의 모서리, 가장자리, 면 |
| 실린더 높이: | 50 밀리미터 | 측정 범위: | 0. 1 μg-200MGH2O (2ppm ~ 100%) |
| 사용: | 카든 딱딱성 테스트 기계 | 전원 공급 장치: | AC 220V 50HZ |
| 기능: | 피크 홀드 | 표시 방법: | 디지털 디스플레이 |
| 시간 표시: | 테스트 중 시간을 표시하려면( s ) | ||
| 강조하다: | Friction Tester for Paper Packaging Testing,Film Coefficient Friction Tester,Film Coefficient Friction Tester |
||
| Attribute | Value |
|---|---|
| Function | compression test, Paper Tube Compressive Strength Test, Burst tester, tensile test, Paper Testing Instrument |
| Name | paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/ bursting strength tester, paper testing instrument |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Display mode | LCD display, digital mode |
| Vibration Mode | reciprocating |
| Movement Drive | ball screw and servo motor |
| Amplitude Range | 25.4 mm P-P(1 inch) |
| Customized Support | OEM ODM |
| Usage | Paper Testing Instrument |
| Test Range | 0-2000 kPa |
| Features | High precision, easy operation, reliable performance |
| Capacity | 2000KG |
| Frequency Range | 60-300 round/min adjustable |
| Controller | PLC (programmable logic controller) |
| Drop Test | Corners, edges, faces of sample |
| Cylinder Height | 50 mm |
| Measuring Range | 0.1 μg-200mgH2O (2ppm~100%) |
| Use | paperboard stiffness test machine |
| Power Supply | AC 220V 50Hz |
| Function | Peak hold |
| Display Method | digital display |
| Time Display | To display time during test (s) |

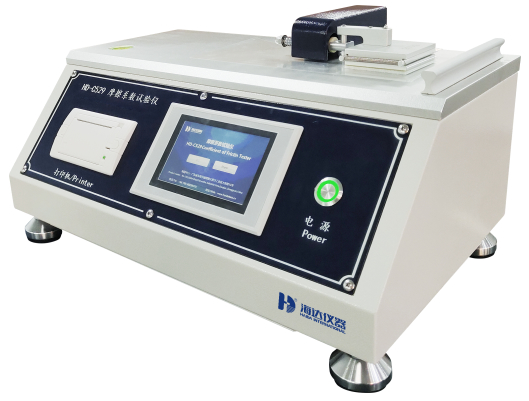

This tester complies with GB 10006-88 and ISO 8295-1986 standards. It measures dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness <0.2mm) when sliding on themselves or other materials. Also suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The friction coefficient measurement indicates product smoothness.
GB 10006-88, ISO 8295-1986
The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force value test module for uniform linear motion. Samples are secured under the handle on the weight module. During testing, the force value test module moves uniformly, calculating the friction coefficient, with results printed by the built-in printer.
| Specifications | 5093-HD |
|---|---|
| Control mode | touch screen control |
| Test stroke | 1-200mm |
| Test speed | 100±10mm/min (speed adjustable) |
| Slider weight | 200±2g (others can be customized) |
| Upper sample size | 63mm*63mm (L*W) |
| Lower sample size | 80mm*200mm (L*W) |
| Force test accuracy | ±0.02N |
| Measuring range | 0.001-5N (expandable) |
| Instrument dimensions | Approx. 490*320*210mm (L*W*H) |
| Usage environment | indoor temperature 20±10℃, relative humidity <85% |
| Power supply | 1∮ AC220V |
| Machine weight | Approx. 18kg |
| Power | Approx. 350W |
| Main test items | Determination of sliding static friction coefficient and dynamic friction coefficient of materials such as plastic film and paper |
About Haida: Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. Suitable for research institutions, quality inspection agencies, and academic fields. Complies with UL, ASTM, JIS, GB, and ISO standards.
