제품 상세 정보:
|
기능: | 압축 테스트, 종이 튜브 압축 강도 테스트, 버스트 테스터, 인장 테스트, 종이 테스트 기기 | 이름: | 종이 컵 튜브 압축 강도 테스터, 종이 테스트 기기 종이 GSM 테스터/ 파열 강도 테스터, 종이 테스트 기기 |
---|---|---|---|
표시하다: | LCD, 디지털 디스플레이 | 장치 스위치: | KGF, n. (선택 사항), LBF |
실험 속도: | 10 ~ 200 mm/분 | 차원: | 360*264*400mm, 70*34*60 cm, 85*65*80cm |
측정 범위: | 250-5600 KPA, 10 ~ 1000mn | 디스플레이 모드: | LCD 디스플레이, 디지털 모드 |
디자인 기준: | ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87 | ||
강조하다: | bottle axis deviation tester,Accurate Bottle Axis Deviation Tester |
Parameter | Value |
---|---|
Sample Diameter | Positive claw 3-55mm, reverse claw 55-145mm |
Centering Chuck | Four-claw/three-claw optional |
Measuring Range | 0-12.7mm |
Resolution | 0.001mm |
Indication Error | ±0.005mm |
Measurement Error | ≤0.05mm |
Measurable Height | 5mm-400mm |
Weight | 20kg |
Dimensions | 330mm × 240mm × 240mm |

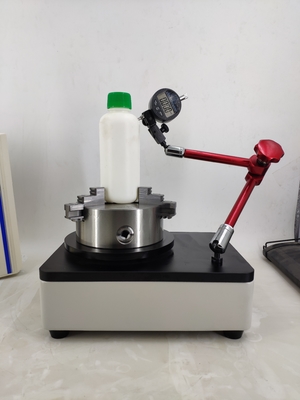

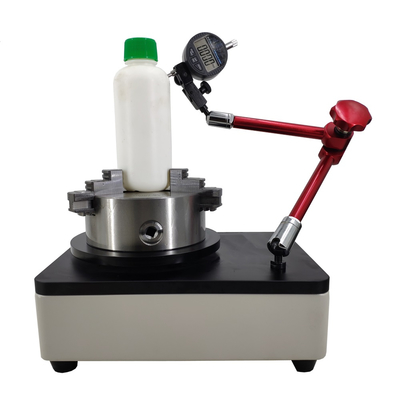

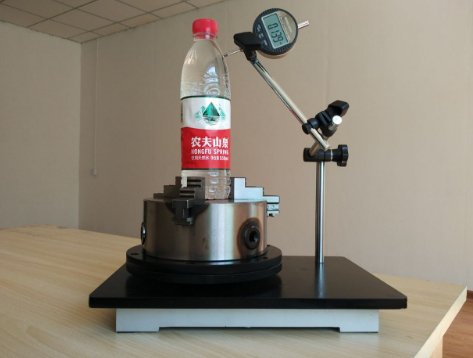

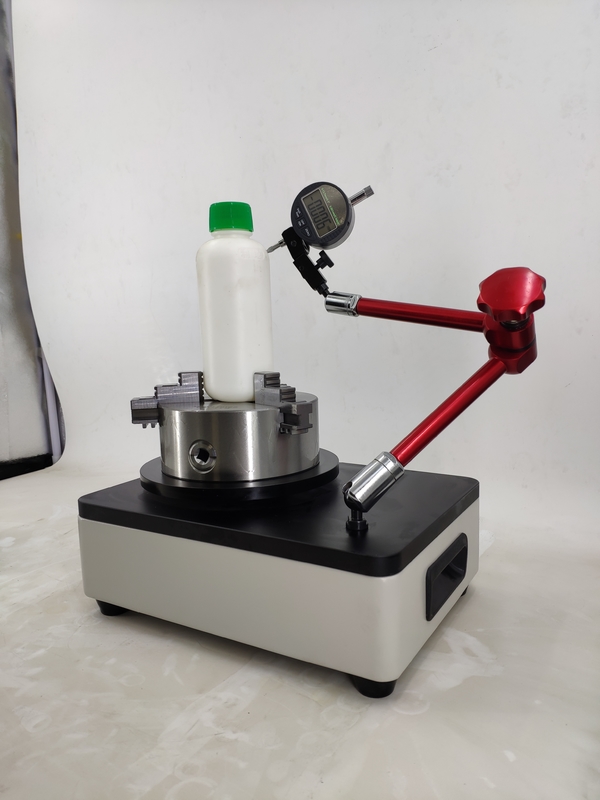

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.
Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.
Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
