High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

큰 이미지 :  High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Haida
인증: CE,,ISO
모델 번호: 6008-HD
결제 및 배송 조건:
최소 주문 수량: 1
가격: 협상 가능
포장 세부 사항: 각 세트는 수지 섬유와 PP 필름으로 보호된 다음 작업 담당자와 함께 강한 나무 케이스에 넣습니다.
배달 시간: 명령 뒤에 있는 20 일은 확인했습니다
지불 조건: L/C, T/T, D/A, D/P, 웨스턴 유니온, 머니그램
공급 능력: 달 당 300개 세트

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

설명
챔버 부피: 유리 관측 도어가있는 ≥0.5 m³ 액적 간격: 조정 가능 : 0-99.99 초
필터 페이퍼: 표준 치수; 두께 : 0.15-0.17mm 전원 공급: AC 220V, 50Hz, 1KVA
강조하다:

High Voltage Tracking Resistance Test Machine

,

flammability test Machine For Fabric

,

flammability tester For fabric

High Voltage Tracking Resistance Tester GB/T 6553-2003

Product Description

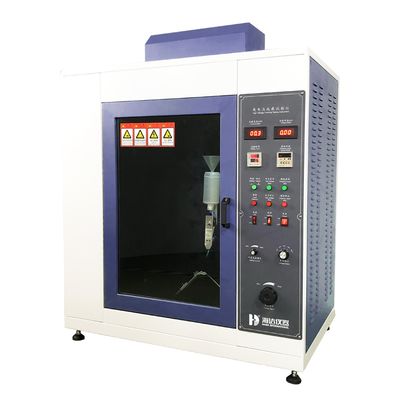

The High Voltage Tracking Resistance Tester is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. High Voltage Tracking Resistance Tester simulates harsh environmental conditions by applying liquid contaminants and inclined samples under power frequency (48Hz-62Hz) to assess the performance of electrical insulation materials.

Test Standard

The equipment is manufactured in accordance with GB/T 6553-2003 and IEC 60581:1984 standards.
Product Specifications

Model 6008-HD
Chamber Volume ≥0.5 m³, with a glass observation door.
Electrical Load Adjustable voltage range: 0-6000V ±5%. Overcurrent protection trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Droplet Interval Adjustable: 0-99.99 seconds.
Filter Paper Standard dimensions; thickness: 0.15-0.17mm.
Electrodes Thickness: 0.5mm; spacing between upper and lower electrodes: 50±0.5mm (standard-compliant dimensions).
Droplet System Adjustable height; contaminant flow rate: 0.075-0.9 mL/min; pre-settable test duration.
Key Features Stainless steel construction for all components (electrodes, fasteners, screws, washers, nuts).
Power Supply AC 220V, 50Hz.

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 1High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 2High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 3High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 4High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 5High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
